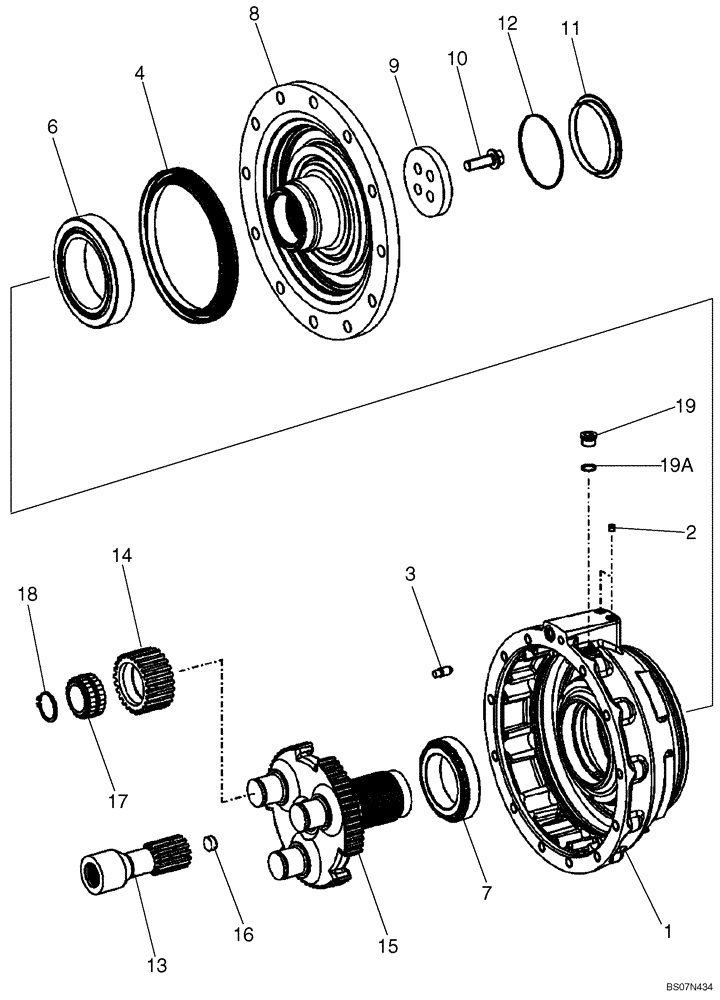

Запчасти Case 521E (06-22E) - AXLE, FRONT - HUB, PLANETARY (06) - POWER TRAIN

87617599

LIVE FRONT AXLE

Limited Slip; See Figures 06-22A - 22E; Incl. Refs. 1 - 19

1шт.

84557689R

REMAN-FRONT AXLE

Unpainted (Primer)

1шт.

84557689C

CORE-FRONT AXLE 4WD

Return Number

1шт.

87745600

DRIVE

END ASSY., Axle, Incl. Refs. 1 - 19, Also Incl. Parts on Fig. 06-22D

2шт.

1

87743207

HOUSING

HOUSING, Brake

1шт.

2

8603673

PLUG

2шт.

3

76088742

VALVE

VALVE, Vent

1шт.

4

84150634

SEAL

SEALRING SEAL

1шт.

6

8603563

TAPERED BEARING

1шт.

7

87743209

TAPERED BEARING

BEARING, ROLLER

1шт.

8

87743210

SHAFT

SHAFT, Output

1шт.

9

87743211

COVER

COVER

1шт.

10

87743212

LOCK BOLT

SCREW, Locking

4шт.

11

87743213

COVER

COVER

1шт.

12

8603527

O-RING

1шт.

13

87743214

SHAFT

SHAFT, Sun Gear

1шт.

14

87358699

GEAR

Planet

3шт.

15

87743215

PLANET CARRIER

CARRIER, Planet

1шт.

16

8603571

PLUG

1шт.

17

84219769

BEARING, ROLLER, CYL

3шт.

18

87358698

SNAP RING

3шт.

19

8603575

PLUG

M24 x 1.5, Incl. Ref. 19A

1шт.

19a

8603208

O-RING,2mm Thk x 21mm ID

1шт.
