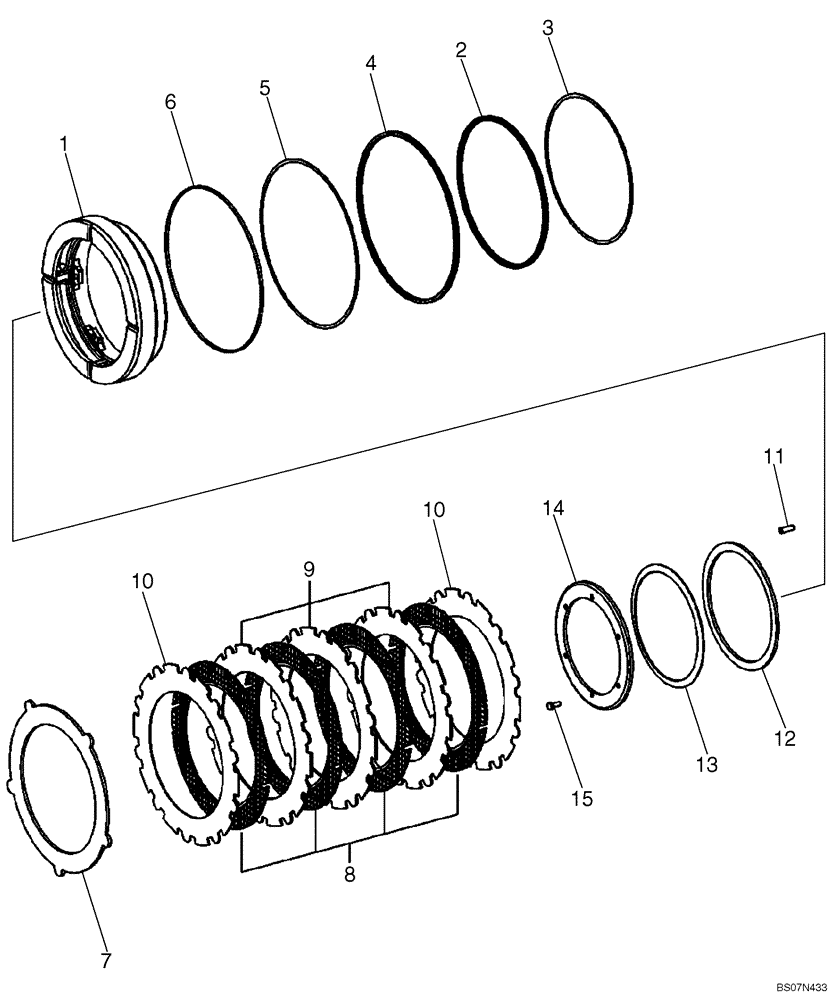

Запчасти Case 521E (06-22D) - AXLE, FRONT - BRAKE (06) - POWER TRAIN

87617599

LIVE FRONT AXLE

Limited Slip; See Figures 06-22A - 22E; Incl. Refs. 1 - 15

1шт.

84557689R

REMAN-FRONT AXLE

Unpainted (Primer)

1шт.

84557689C

CORE-FRONT AXLE 4WD

Return Number

1шт.

87745600

DRIVE

END ASSY., Axle, Incl. Refs. 1 - 15, Also Incl. Parts on Fig. 06-22E

2шт.

1

87743216

PISTON

PISTON

1шт.

2

8605314

SEAL,298mm ID x 310mm OD x 8mm Thk

1шт.

3

8603577

RING

1шт.

4

8605315

SEAL

1шт.

5

8603579

RING

1шт.

6

8603580

SNAP RING

1шт.

7

87743217

SHIM

SHIM, End

1шт.

8

87341835

BRAKE DISC

Inner, NSS, Please Order P/N 87365252 Kit, Incl 8 - 10, One Kit Needed Per Axle

4шт.

9

8603582

BRAKE PLATE

Outer, NSS, Please Order P/N 87365252 Kit, Incl 8 - 10, One Kit Needed Per Axle.

3шт.

10

87441328

PLATE,2mm Thk

NSS, Please Order P/N 87365252 Kit, Incl 8 - 10, One Kit Needed Per Axle.

2шт.

11

87743218

PIN

PIN, Slot

6шт.

12

87743219

WASHER

WASHER

1шт.

13

87743220

WASHER

SPRING, Cup

6шт.

14

87743746

COVER

COVER

1шт.

15

87743747

SCREW,Hex

SCREW, Hex, M8 x 20

6шт.
