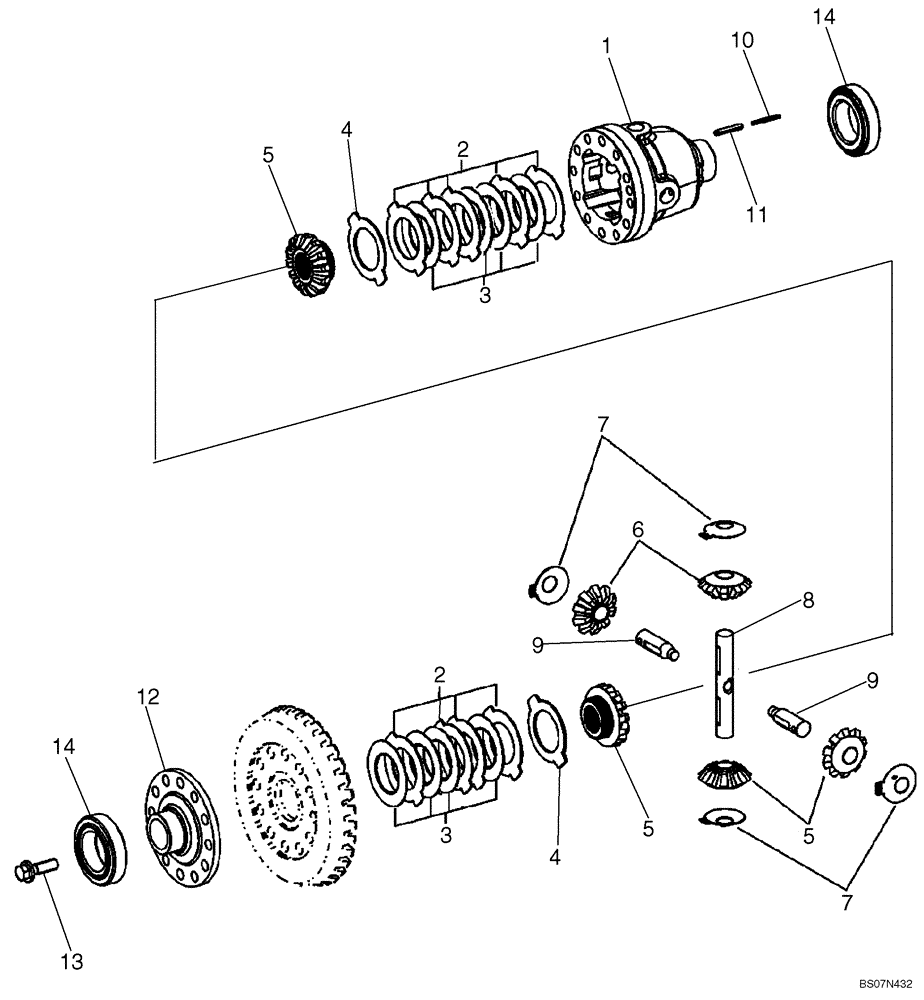

Запчасти Case 521E (06-22C) - AXLE, FRONT - DIFFERENTIAL (06) - POWER TRAIN

87617599

LIVE FRONT AXLE

Limited Slip; Incl. Refs. 1 - 14; Incl. Figures 06-22A - 22E

1шт.

84557689R

REMAN-FRONT AXLE

Limited. Unpainted (Primer)

1шт.

84557689C

CORE-FRONT AXLE 4WD

Return Number

1шт.

87745599

DIFFERENTIAL ASSY

DIFFERENTIAL ASSY., Incl. Refs. 1 - 14

1шт.

1

87742938

DIFFERENTIAL

DIFFERENTIAL

1шт.

2

87742939

CLUTCH PLATE

CLUTCH DISK CLUTCH, PLATE, Outer

1шт.

2

87742940

CLUTCH PLATE

CLUTCH DISK CLUTCH, PLATE, Outer

1шт.

2

87742941

DISC,Axle, Friction

CLUTCH DISK CLUTCH, PLATE, Outer

1шт.

3

87742942

CLUTCH DISC

CLUTCH DISK CLUTCH, PLATE, Inner

8шт.

4

87742943

THRUST WASHER

WASHER, Thrust

2шт.

5

87742944

BEVEL GEAR

BEVEL GEAR, Axle

2шт.

6

87742945

BEVEL GEAR

BEVEL GEAR, Differential

4шт.

7

87742946

THRUST WASHER

WASHER, Thrust

4шт.

8

87742956

AXLE DIFFERENTIAL

SHAFT, Differential

1шт.

9

87742957

AXLE DIFFERENTIAL

SHAFT, Differential Half

2шт.

10

84024216

LOCK PIN,5mm OD x 50mm L, Slotted

2шт.

11

87742960

PIN

PIN, Slot, 5 x 80 mm

2шт.

12

87742961

COVER

COVER, Housing

1шт.

13

184716A1

SCREW

Hex

12шт.

14

8603222

ROLLER BEARING,65mm ID x 140mm OD x 36mm W

2шт.
