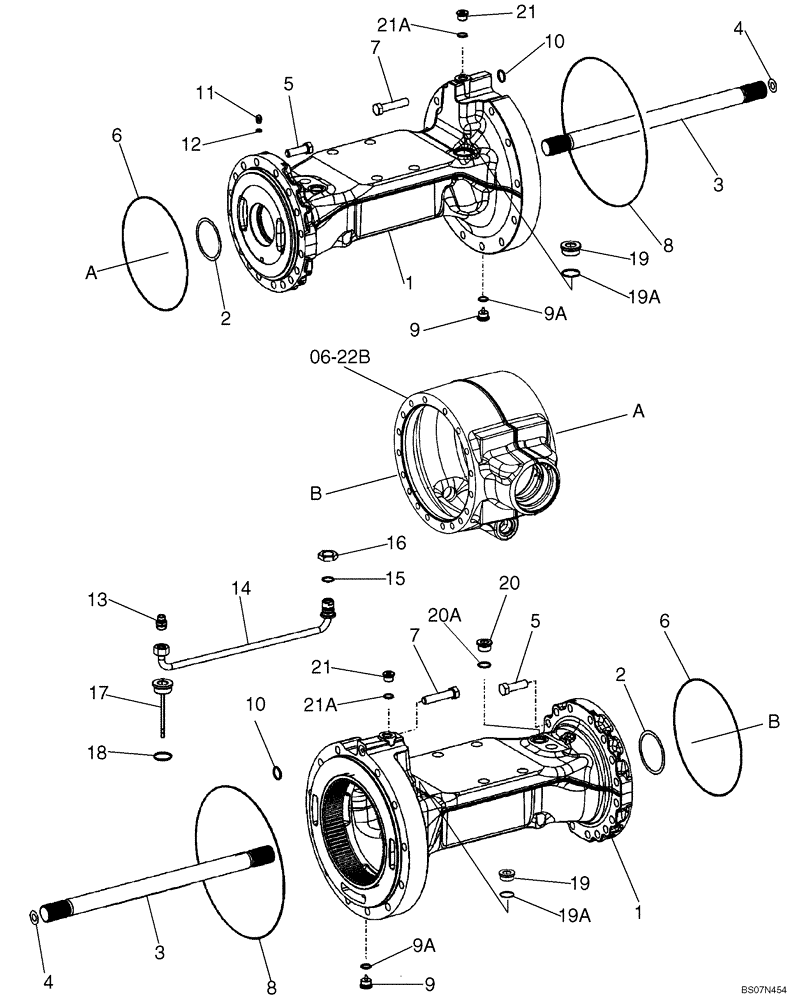

Запчасти Case 521E (06-22A) - AXLE, FRONT - HOUSING (06) - POWER TRAIN

87617599

LIVE FRONT AXLE

Limited Slip; Incl. Figures 06-22A - 06-22E; Incl. Refs. 1 - 21

1шт.

84557689R

REMAN-FRONT AXLE

Unpainted (Primer)

1шт.

84557689C

CORE-FRONT AXLE 4WD

Return Number

1шт.

1

87742963

CASING

HOUSING, Front Axle

2шт.

2

87742964

SHIM,0.8mm Thk

SHIM, 0.8 mm

1шт.

2

87742965

SHIM,0.9mm Thk

SHIM, 0.9 mm

1шт.

2

87743201

SHIM,1mm Thk

SHIM, 1.0 mm

1шт.

2

87743202

SHIM,1.1mm Thk

SHIM, 1.1 mm

1шт.

2

87743203

SHIM,1.2mm Thk

SHIM, 1.2 mm

1шт.

3

87743204

SHAFT

HALF SHAFT

2шт.

4

8603730

SHIM,0.2mm Thk

1шт.

4

8603669

SHIM,0.4mm Thk

1шт.

4

8603731

SHIM,1mm Thk

1шт.

4

8603732

SHIM,1.5mm Thk

1шт.

5

71448875

SCREW

SCREW, M18 x 60

36шт.

6

87743205

O-RING

O-RING, 270 x 2.5 mm

2шт.

7

514-1107

BOLT,Hex, M18 x 1.5 x 85mm, Cl 10.9

24шт.

8

8603674

O-RING,2.5mm Thk x 362mm ID, 70 Duro

360 x 2.5 mm

2шт.

9

8603550

PLUG

M24 x 1.5

2шт.

9a

8603208

O-RING,2mm Thk x 21mm ID

1шт.

10

73140524

O-RING

O-RING

2шт.

11

100113A1

PLUG

M10 x 1

2шт.

12

A52231

SEALING RING

2шт.

13

87743748

SLEEVE

CONNECTOR

2шт.

14

87743749

BRAKE LINE

TUBE, Internal Brake

2шт.

15

79107839

O-RING

2шт.

16

8603619

TUBE NUT

2шт.

17

87743750

DIPSTICK

DIPSTICK, Front Axle Oil

1шт.

18

87454993

O-RING

1шт.

19

A48791

PLUG

M42 x 1.5, Incl. Ref. 19A

1шт.

19a

87454993

O-RING

1шт.

20

A52148

PLUG

M30 x 1.5, Incl. Ref. 20A

2шт.

20a

79096828

O-RING

1шт.

21

934025R1

PLUG,Hex Soc, M22 x 1.5

M22 x 1.5, Incl. Ref. 21A

2шт.

21a

100080A1

O-RING,2mm Thk x 19mm ID, 70 Duro

1шт.
