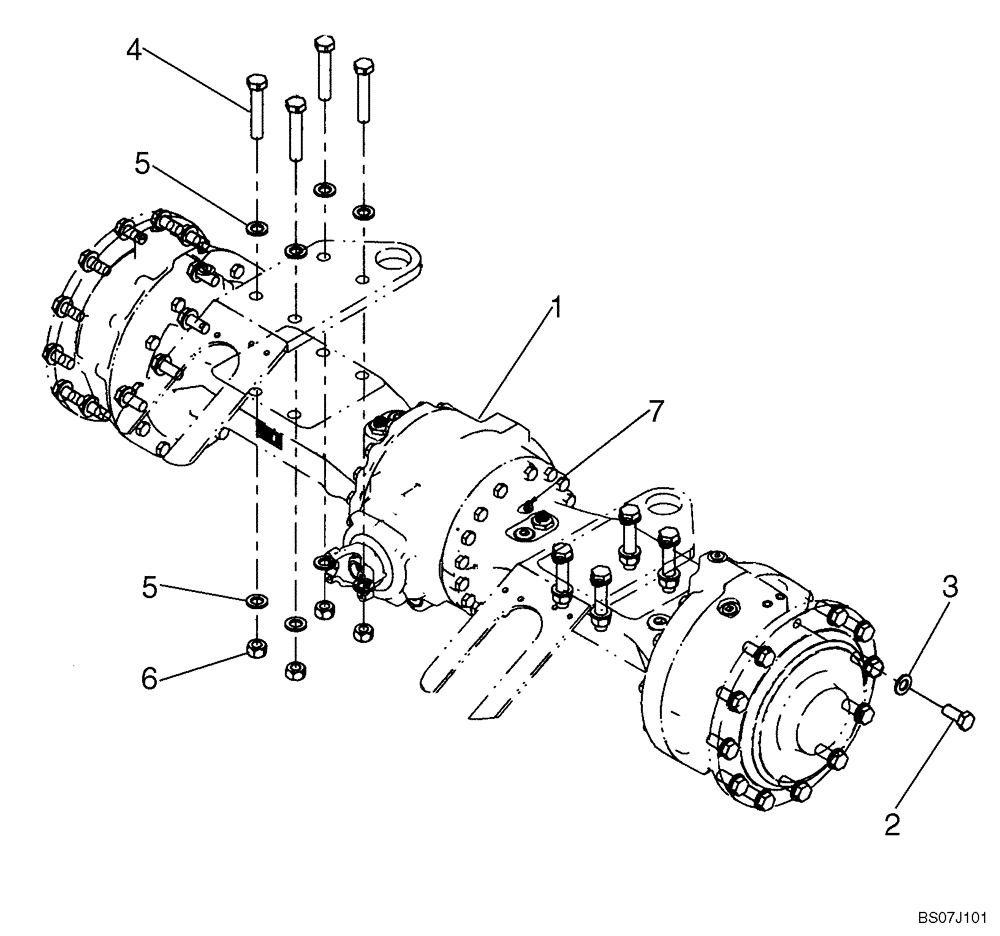

Запчасти Case 521E (06-22) - AXLE, FRONT - MOUNTING (06) - POWER TRAIN

1

87617599

LIVE FRONT AXLE

See Figures 06-22A - 06-22E

1шт.

1

84557689R

REMAN-FRONT AXLE

Unpainted (Primer)

1шт.

1

84557689C

CORE-FRONT AXLE 4WD

Return Number

1шт.

2

514-1315

BOLT,Hex, M22 x 1.5 x 50mm, Cl 10.9

24шт.

3

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

24шт.

4

827-24130

BOLT,Hex, M24 x 3 x 130mm, Cl 10.9

8шт.

5

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

16шт.

6

829-1424

NUT,M24, Cl 10

8шт.

7

8603201

BREATHER

Valve

1шт.
