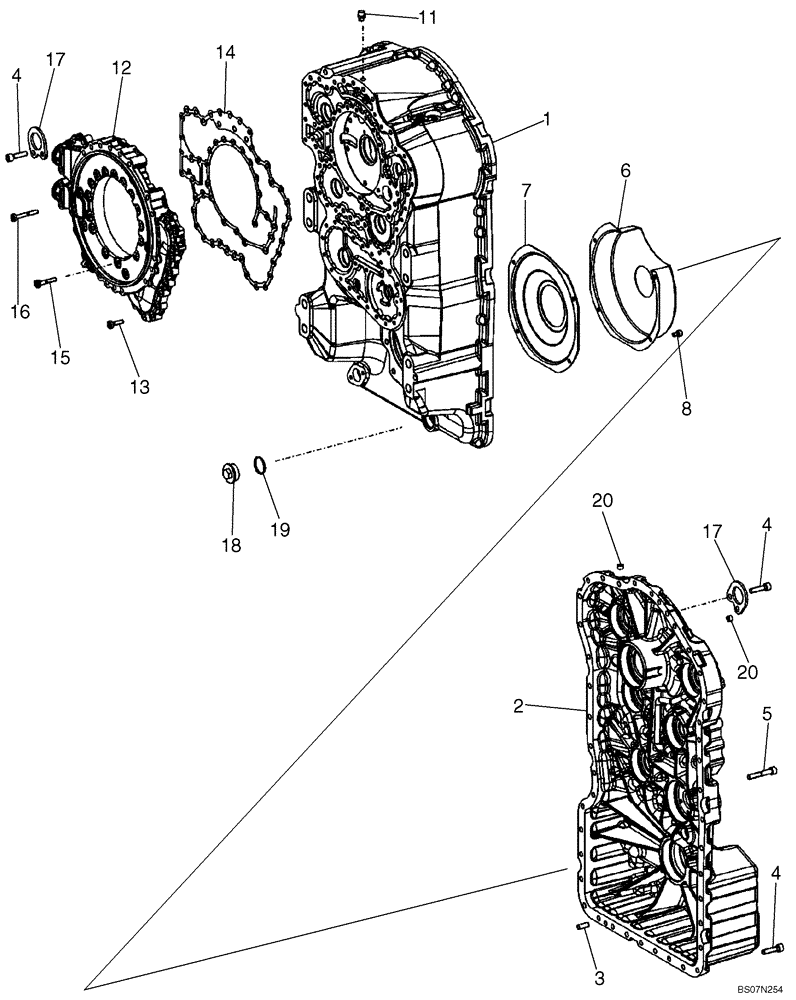

Запчасти Case 521E (06-06) - TRANSMISSION ASSY - HOUSING (06) - POWER TRAIN

87693196

TRANSMISSION

See Figure(s) 06-03 - 06-20, 07-01; Incl. Refs. 1 - 20

1шт.

87693196R

REMAN-TRANSMISSION

Remanufactured, 4WD

1шт.

87693196C

CORE-TRANSMISSION

Return Number, 4WD

1шт.

1

87712680

TRANSMISSION HOUSING

HOUSING, Transmission Front

1шт.

2

87742372

HOUSING

HOUSING, Transmission Rear

1шт.

3

1493416

PIN

PIN, Cylindrical

2шт.

4

8603469

SCREW,Hex, M10 x 40mm

M10 x 40

35шт.

5

87715358

SCREW

SCREW, M10 x 60

6шт.

6

8603304

HOUSING

Gear

1шт.

7

8603305

GUARD

1шт.

8

8603306

SCREW,M8 x 12mm

M8 x 12

4шт.

11

8603214

BREATHER

1шт.

12

87712648

HOUSING

1шт.

13

8603308

SCREW

M8 x 30

15шт.

14

8603309

GASKET

1шт.

15

8603310

SCREW,M8 x 45mm, Cl 10.9

M8 x 45

21шт.

16

8603311

SCREW

M8 x 60

4шт.

17

8603316

PLATE

2шт.

18

8603319

PLUG

Incl. 19

1шт.

19

8603318

O-RING

1шт.

20

87715359

PLUG

PLUG

4шт.
