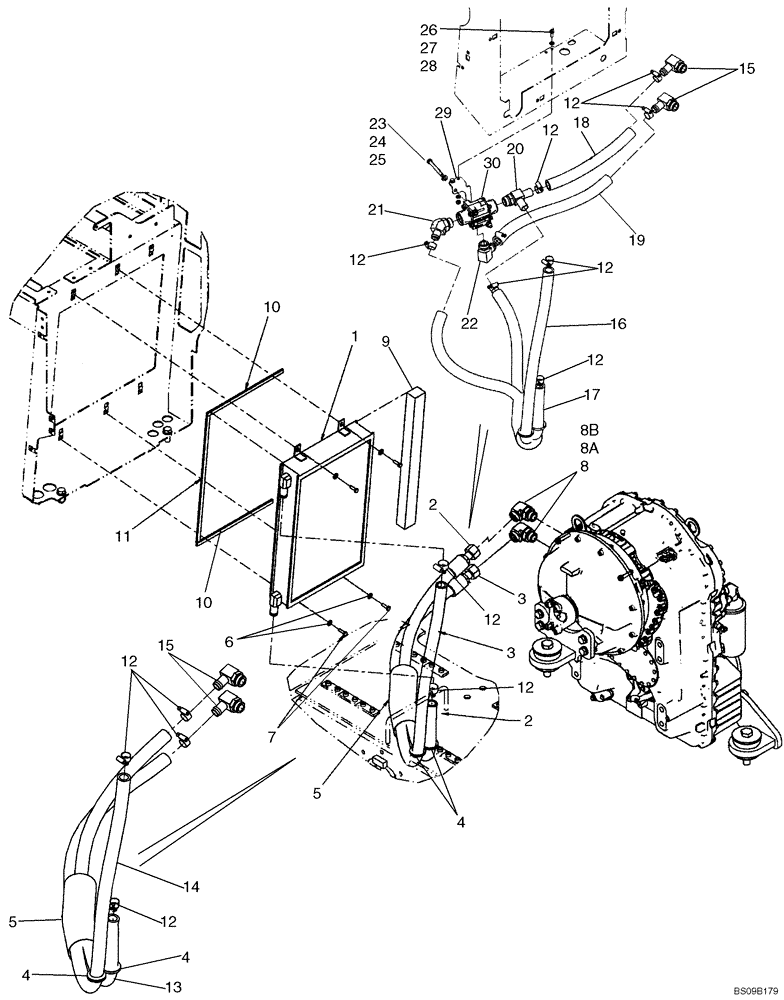

Запчасти Case 521E (06-02) - HYDRAULICS - TRANSMISSION (06) - POWER TRAIN

1

401430A1

COOLER, OIL

Transmission

1шт.

2

87644744

HOSE ASSY.

Cooler to Transmission, 1433 mm (56 - 13/32 in); If Used, Serial Range: -N9F206853

1шт.

3

87644743

HOSE ASSY.

Transmission to Cooler, 1983 mm (78 - 5/64 in); If Used, Serial Range: -N9F206853

1шт.

4

248-1185

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

2шт.

5

412511A1

HOSE PROTECTION

90 x 1200 mm

1шт.

6

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

7

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

8

201-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

Incl. Refs. 8A, 8B; If Used, Serial Range: -N9F206853

2шт.

8a

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss Seal

1шт.

8b

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

9

382262A2

OIL SEAL

Transmission Oil Cooler

1шт.

10

382259A1

SEAL

2шт.

11

382258A1

OIL SEAL

1шт.

12

87482165

HOSE CLAMP,1" - 1.75", Worm Gear

Replaces 353036A1 Clamp Used On Some Models, Start Serial: N9F206854

2-8шт.

13

84178888

HOSE,25.40 mm ID x 1452.00 mm

HOSE, Cooler to Transmission, 1452 mm (57 - 11/64 in); If Used

1шт.

14

84178887

HOSE,25.40 mm ID x 2002.00 mm

Transmission to Cooler, Start Serial: N9F206854

1шт.

15

87393628

ADAPTER,1" Hose Barb x 1-5/16" - 12 ORB

90 deg. Connector; If Used, Start Serial: N9F206854

1шт.

16

84195577

HOSE

HOSE, Cooler To Vavle, 1715 mm (67 - 1/2 in); If Used

1шт.

17

84195576

HOSE

HOSE, Valve To Cooler, 1155 mm (45 - 15/32 in); If Used

1шт.

18

84195578

HOSE

HOSE, Valve to Transmission, 360 mm (14 - 11/64 in); If Used

1шт.

19

84195579

HOSE

HOSE, Transmission to Valve, 481 mm (18 - 15/16 in); If Used

1шт.

20

235067A1

TEE

W/ Hose Barbs; If Used

1шт.

21

87029968

HYD CONNECTOR

45 deg.; If Used

1шт.

22

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

If Used

1шт.

23

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

If Used

2шт.

24

829-1410

NUT,M10 x 1.5, Cl 10.9

If Used

2шт.

25

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

If Used

4шт.

26

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

If Used

4шт.

27

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

If Used

2шт.

28

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

If Used

2шт.

29

84195575

BRACKET

BRACKET, Bypass Valve; If Used

1шт.

30

84138750

VALVE

VALVE, Transmission Thermal Bypass; If Used

1шт.
