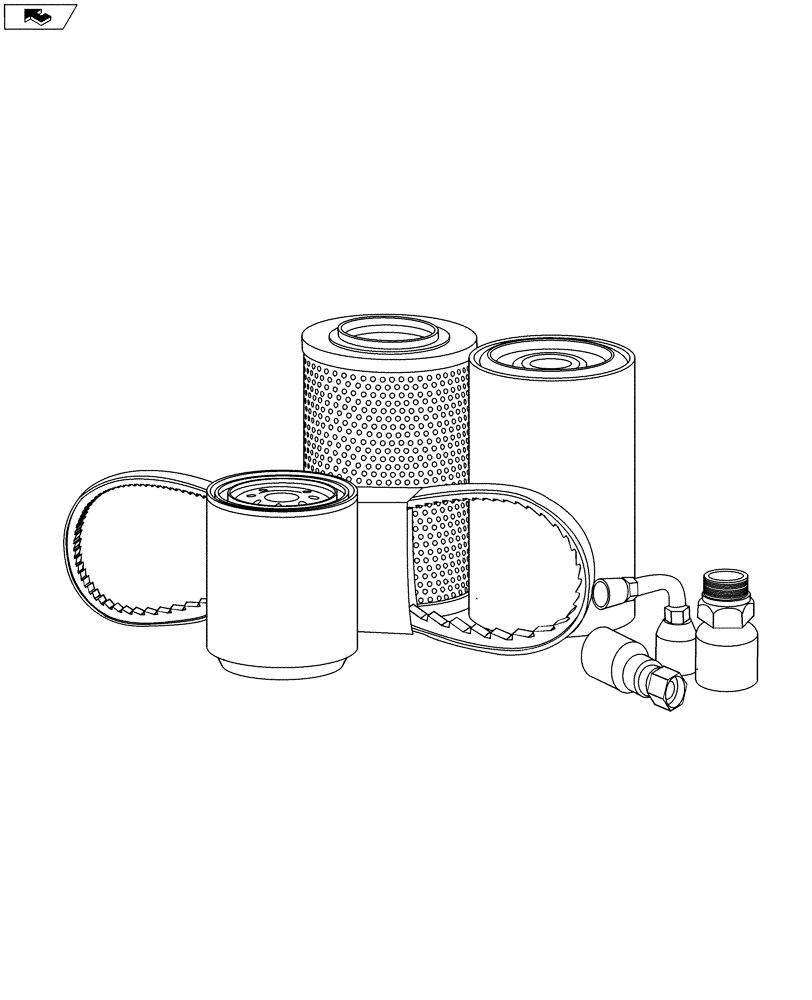

Запчасти Case 521E (05.100.02) - ISL LIST B (00) - PICTORIAL INDEX

LIST B

Parts Required For Preventative Maintenance And Basic Repair

1шт.

1

87434292

SEAL KIT

Lift Cylinder

1шт.

2

429797A1

CAP

Oil Fill

1шт.

3

76082644

HOSE,57.20 mm ID x 218.00 mm, SAE 20R4 OR SAE J20 R4 CLASS D-1

1шт.

4

86991195

HOSE,48.00 mm ID, 57.20 mm ID x 254.00 mm, SAE J20R4 Class D1

Radiator

1шт.

5

76082693

HOSE

Radiator

1шт.

6

87712194

CAB FILTER,Standard

1шт.

6

84234542

CAB FILTER,Carbon

1шт.

7

232364A1

FLASHER UNIT

Module

1шт.

8

84322388

THERMOSTAT

1шт.

9

87315250

MODULE

Module Connector

1шт.

10

87364605

TIMER

Power Off Delay, Module

1шт.

11

87312626

RELAY,24V

Micro

2шт.

12

87434291

SEAL KIT

Bucket Cylinder

1шт.

13

87318627

MODULE

Power Relay, Connector

1шт.

14

87542710

SENDER UNIT

Fuel Tank

1шт.

15

8604443

FILLER CAP

Fuel

1шт.

16

2856173

BELT TENSIONER

1шт.

17

279492A1

RESTRICTION SWITCH

1шт.

18

2859674

SENSOR,Oil Pressure

Engine Oil Pressure Sender Unit

1шт.

19

4897224

SENSOR

Engine Cooling Sender

1шт.

20

76048601

KIT

Wiper Blade

1шт.

21

82030990

WIPER BLADE,Single, 550mm L

1шт.

22

76303499

FILTER

Cab Recirc

1шт.

23

87318986

RELAY,4 Pin, 24V

Ultra Micro

2шт.

24

2852821

SENSOR

Intake Pressure Sender

1шт.

25

326845A1

RELAY,24V

Mini

1шт.

26

8602005

HEATER,750W, 120V

Engine Block

1шт.

27

87105748

ELECTRIC CABLE,120V, 15A

Engine Block Heater Cord

1шт.

28

A170241

RADIATOR CAP

Radiator

1шт.

29

282775A1

IGNITION SWITCH

1шт.

30

1964831C2

IGNITION KEY

Ignition

1шт.
