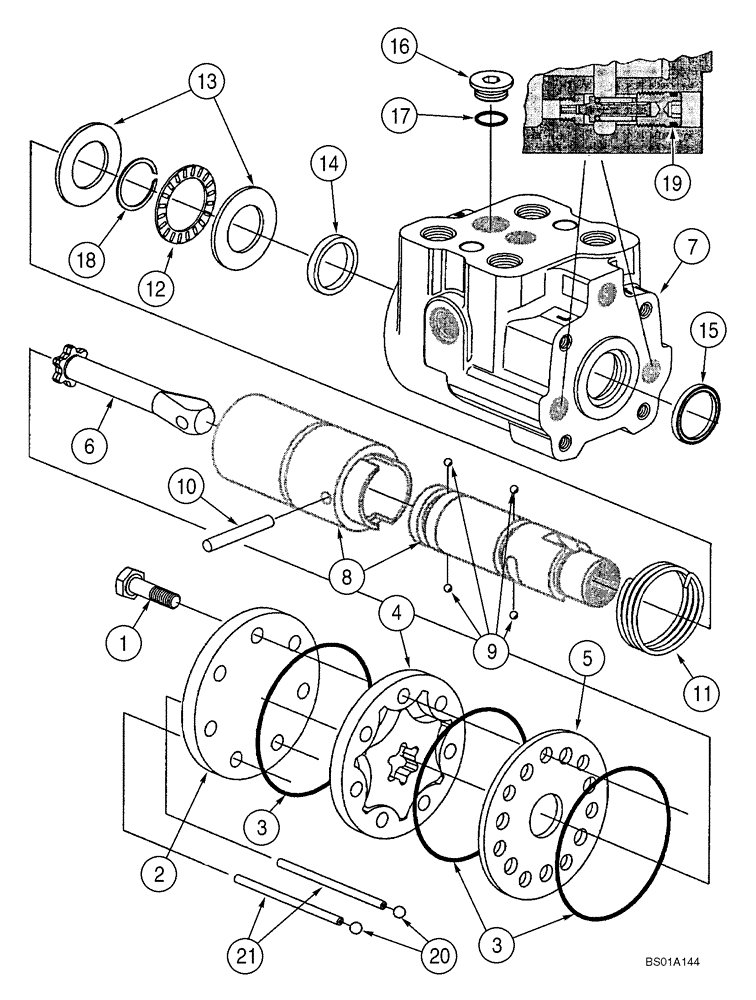

Запчасти Case 521E (05-18) - VALVE ASSY - STEERING CONTROL (05) - STEERING

87307056

HYDRAULIC VALVE

VALVE ASSY, Steering Control, Incl. Refs. 1 - 21

1шт.

1

8604458

SCREW

Screw

7шт.

2

NSS

NOT SOLD SEPARAT

Cap

1шт.

3

8604283

O-RING

O-Ring

3шт.

4

NSS

NOT SOLD SEPARAT

Gerotor

1шт.

5

NSS

NOT SOLD SEPARAT

Plate

1шт.

6

NSS

NOT SOLD SEPARAT

Shaft, Drive

1шт.

7

NSS

NOT SOLD SEPARAT

Housing

1шт.

8

NSS

NOT SOLD SEPARAT

Spool

1шт.

9

NSS

NOT SOLD SEPARAT

Ball

1шт.

10

NSS

NOT SOLD SEPARAT

Pin

1шт.

11

8604430

SPRING

Spring

1шт.

12

8604284

THRUST BEARING

Bearing, Needle Thrust

1шт.

13

8604285

RACE

Race Bearing

2шт.

14

8604294

SEAL

Dust

1шт.

15

8604431

SEAL

Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Plug

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss seal

1шт.

18

8604286

RING

Ring

1шт.

19

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

2шт.

8604685

SEAL KIT

Incl. Refs. 3, 14, 15, 19

1шт.

20

8604287

BALL

Ball

2шт.

21

8604288

ROLL PIN

Pin, Large

2шт.
