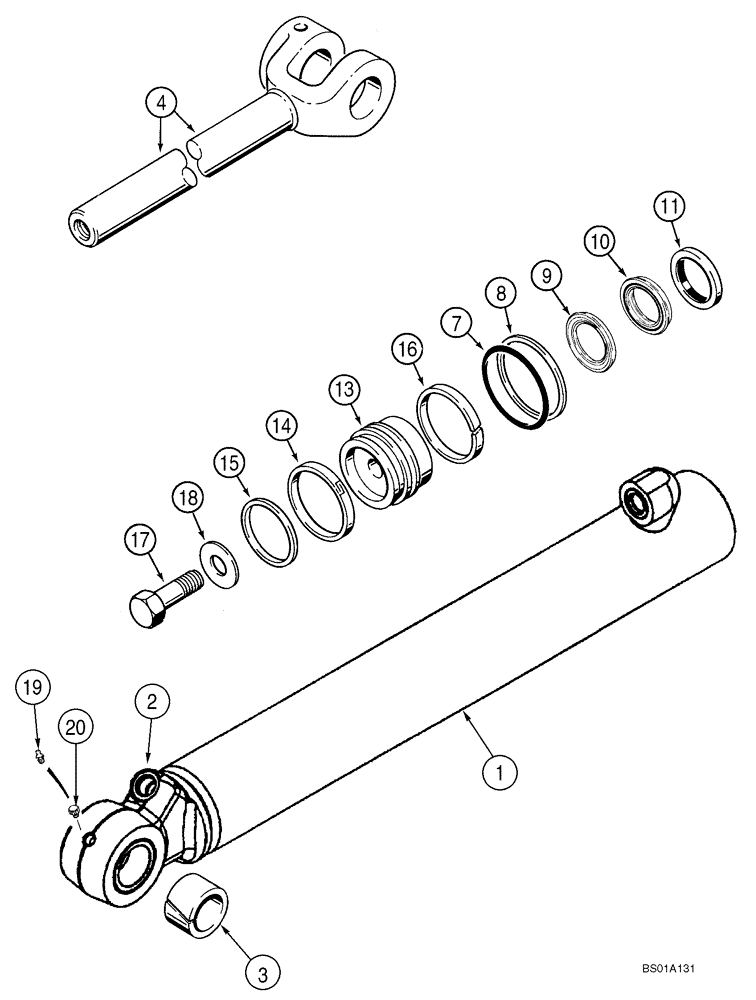

Запчасти Case 521E (05-14) - CYLINDER ASSY - STEERING (05) - STEERING

87405370

STEERING CYLINDER,Double Acting, 34.9mm Rod, 462.5mm Stroke

64 ID x 463 strk; Steering; Incl. Refs. 1 - 20

2шт.

87405370R

REMAN-HYD CYLINDER

Steering

2шт.

87405370C

CORE-HYD CYLINDER

Return Number

2шт.

1

359047A1

TUBE,63.4 mm ID, 76.2 mm OD, 663 mm Length

Incl.Refs. 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Eye

1шт.

3

141005A1

BUSHING,35.19mm ID x 45mm OD x 22mm L

2шт.

4

359041A1

ROD ASSY.

1шт.

359119A1

PACKAGE

Incl. Refs. 5 - 18

1шт.

5

348177A1

GLAND

Incl. Refs. 6 - 12

1шт.

6

348176A1

GLAND

1шт.

7

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

8

G109297

BACK-UP RING,56.9mm ID x 63.5mm OD x 1.4mm Thk

1шт.

279532A1

SEAL

Incl. Refs. 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Buffer Seal

1шт.

10

NSS

NOT SOLD SEPARAT

Seal

1шт.

11

226847A1

WIPER SEAL

Piston Rod

1шт.

12

348189A1

GUIDE RING

Piston Rod; Not Illustrated

1шт.

348175A1

PISTON ASSY.

Incl. Refs. 13 - 16

1шт.

13

348174A1

PISTON

1шт.

14

348188A1

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

1шт.

15

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

1шт.

16

348187A1

RING

1шт.

17

86982435

SPECIAL BOLT,3/4" - 16 x 2-1/2"

3/4 NF x 2; Incl. Ref. 18

1шт.

18

NSS

NOT SOLD SEPARAT

Washer

1шт.

19

219-11

LUBE NIPPLE,1/4" - 28 NPTF

Taper

1шт.

20

553-104

PLUG,M16 x 1.5, ORB, Plastic

2шт.

360986A1

KIT

Incl. 279532A1, 7, 8, 11, 12, 14 - 16

1шт.
