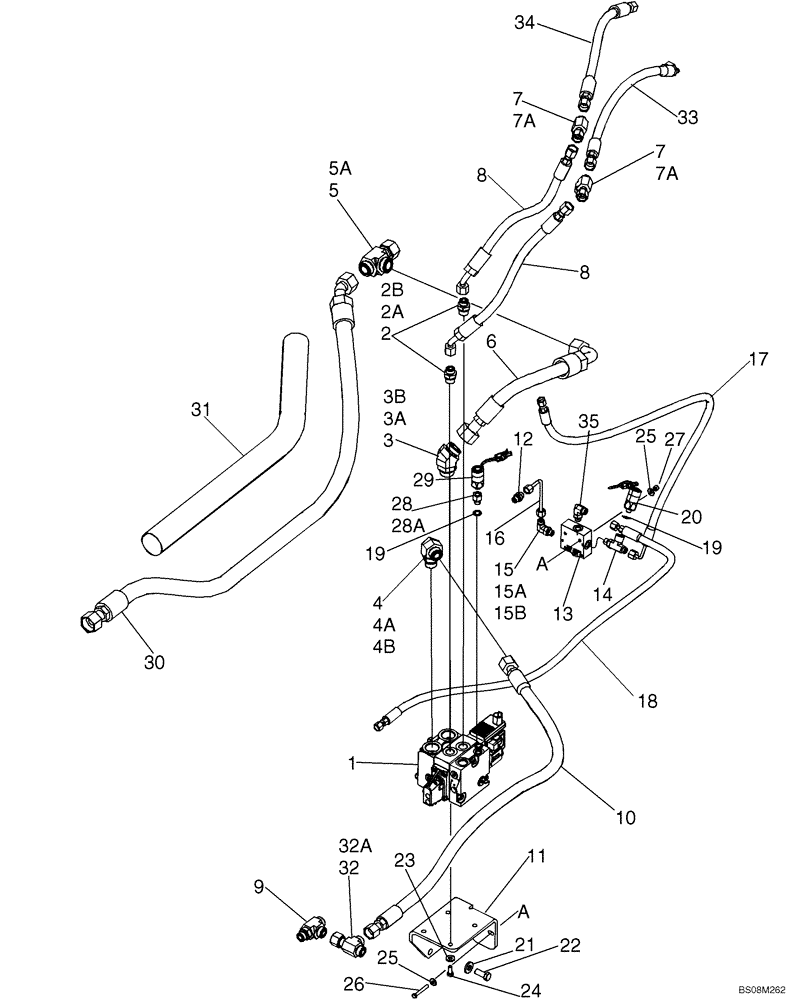

Запчасти Case 521E (05-12) - JOYSTICK STEERING - HYDRAULICS (05) - STEERING

1

84178373

VALVE

VALVE, Steering Proportional; See Figure 05-16

1шт.

2

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. Ref. 2A, 2B

2шт.

2a

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

2b

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

3

700-318

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. Refs. 3A, 3B

1шт.

3a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

1шт.

3b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss End

1шт.

4

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. Refs. 4A, 4B

1шт.

4a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

4b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

5

701-418

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Female ORFS

Incl. Ref. 5A

1шт.

5a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

3шт.

6

84143163

HOSE

To Tank, 428 mm (16 - 55/64 in)

1шт.

7

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. Refs. 7A

2шт.

7a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

8

84143165

HOSE

Cylinder Pressure, 462 mm (18 - 3/16 in)

2шт.

9

700-420

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. Refs. 9A, 9B

1шт.

9a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

9b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

10

84162471

HOSE ASSY.

Valve Suction, 1050 mm (41 - 1/3 in)

1шт.

11

84143169

BRACKET

Steering Valve Mounting

1шт.

12

87661868

HYD CONNECTOR

1шт.

13

87719987

VALVE

PVFC; See Figure 05-17

1шт.

14

87477375

FITTING

1шт.

15

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl. Refs. 15A, 15B

1шт.

15a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

15b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

16

84143171

HYD TUBE,5.1mm ID x 6.35mm OD x 101mm L

Steering Load Sense

1шт.

17

87724965

HOSE ASSY.,6.35mm ID x 1350mm L, SAE 100R2

Load Sense, 1350 mm (53 - 9/64 in)

1шт.

18

84144047

HOSE

Load Sense, 1340 mm (52 - 3/4 in)

1шт.

19

396471A1

SEAL,11.71mm ID x 19.3mm OD x 1.68mm Thk

12 mm

2шт.

20

87476564

PRESSURE SWITCH

LS Pressure

1шт.

21

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

3шт.

22

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

23

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

24

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

25

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

26

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

27

832-10406

NUT,M6 x 1, Cl 8

2шт.

28

87487329

FITTING,M14 x 1.5 ORB x M12 x 1.5 ORB

Reducer; Incl. Ref. 28A

1шт.

28a

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

29

84175670

PRESSURE SWITCH

Pilot Pressure

1шт.

30

84145206

HOSE ASSY.

Valve Return, 1490 mm (58 - 21/32 in)

1шт.

31

401526A1

HOSE PROTECTION,60mm ID x 1200mm L

1шт.

32

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl. Ref. 32A

1шт.

32a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

2шт.

33

84164220

HOSE ASSY.

Steering Right Base, 664 mm (26 - 9/64 in)

1шт.

34

84164219

HOSE ASSY.

Steering Right Rod, 475 mm (18 - 45/64 in)

1шт.

35

84176570

FITTING

1шт.
