Запчасти Case 521E (05-09) - STEERING - HYDRAULICS - CYLINDER (05) - STEERING

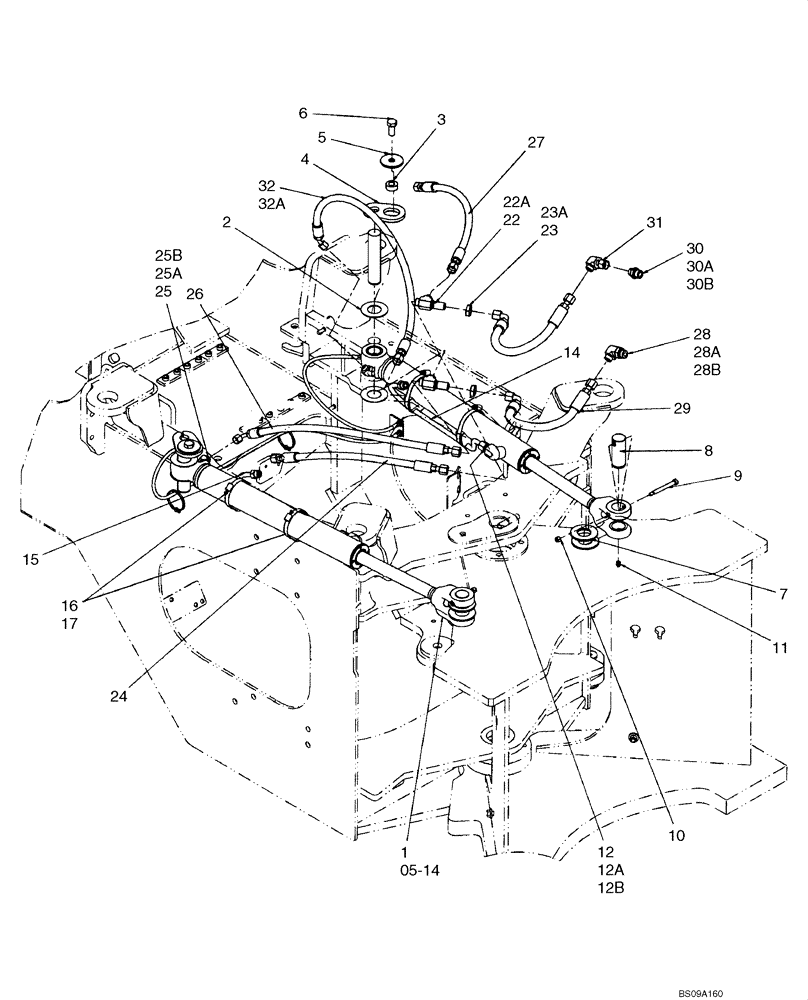

Схема запчастей Case 521E - (05-09) - STEERING - HYDRAULICS - CYLINDER (05) - STEERING
17
7
23
4
05-14
30a
3
15
2
22a
12b
28b
30
5
11
12
32a
8
27
30b
29
6
28a
28
16
25b
26
9
14
22
24
23a
1
25
10
25a
12a
31
32

Артикул

Название

Примечание

Количество

1

87405370

STEERING CYLINDER,Double Acting, 34.9mm Rod, 462.5mm Stroke

See Figure 05-14

2шт.

1

87405370R

REMAN-HYD CYLINDER

Steering

2шт.

1

87405370C

CORE-HYD CYLINDER

Return Number

2шт.

2

8501088

WASHER,41mm ID x 76mm OD x 1.59mm Thk

M41 x 76 x 1.5, Plastic; Replaces 419818A1 Washer Used On Some Models

4шт.

3

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

2шт.

4

87369338

PIN,35.05mm OD x 180.5mm L

Steering Pivot

2шт.

5

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

2шт.

6

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

7

419819A1

WASHER

4шт.

8

380583A2

PIN

Steering Cylinder

2шт.

9

87308853

HEX SOC SCREW,M8 x 96.4mm, Cl 12.9

M8 x 10 x 80, Cl 12.9

2шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

12

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. Refs. 12A, 12B

2шт.

12a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

12b

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

14

87663411

HYD TUBE,.5" OD

Assy. Steering Cylinder LH

1шт.

15

87668577

TUBE,.5" OD

Assy. Steering Cylinder RH

1шт.

16

8500483

BLOCK

2-4шт.

17

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

2-4шт.

18

F53473

LOCK NUT,1/8-27 NPSM

2шт.

19

313682A1

FLEXIBLE HOSE

RH Steering Cylinder Grease, 1320 mm (51 31/32 in)

1шт.

20

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

2шт.

21

L54693

HOSE

LH Steering Cylinder Grease, 686 mm (27 in)

1шт.

22

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. Ref. 22A

2шт.

22a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

3шт.

23

701-903

NUT,13/16" - 16

Incl. Ref. 23A

2шт.

23a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

24

87668578

HOSE ASSY.

Steering Cylinder Right Rod, 541 mm (21 - 19/64 in)

1шт.

25

700-374

45 ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. Refs. 25A, 25B

2шт.

25a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

25b

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

26

87668579

HOSE ASSY.

Steering Cylinder Right Base, 730 mm (28 - 3/4 in)

1шт.

27

87668580

HOSE ASSY.

Steering Cylinder Left Rod, 641 mm (25 - 15-64 in)

1шт.

28

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. Refs. 28A, 28B

1шт.

28a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

28b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

29

87385246

HOSE ASSY.

Steering Cylinder; 569 mm (22 - 13/32 in)

2шт.

30

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. Refs. 30A, 30B

1шт.

30a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

30b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

31

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. Ref. 31A

1шт.

31a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

32

87668581

HOSE ASSY.

Steering Cylinder Left Base, 930 mm (36 - 5/8 in); No Longer Available, Order 87476362 Hose, Ref. 32A

1шт.

32a

87476362

HOSE ASSY.

Steering Cylinder Left Base, 1000 mm (39 - 3/8 in)

1шт.
