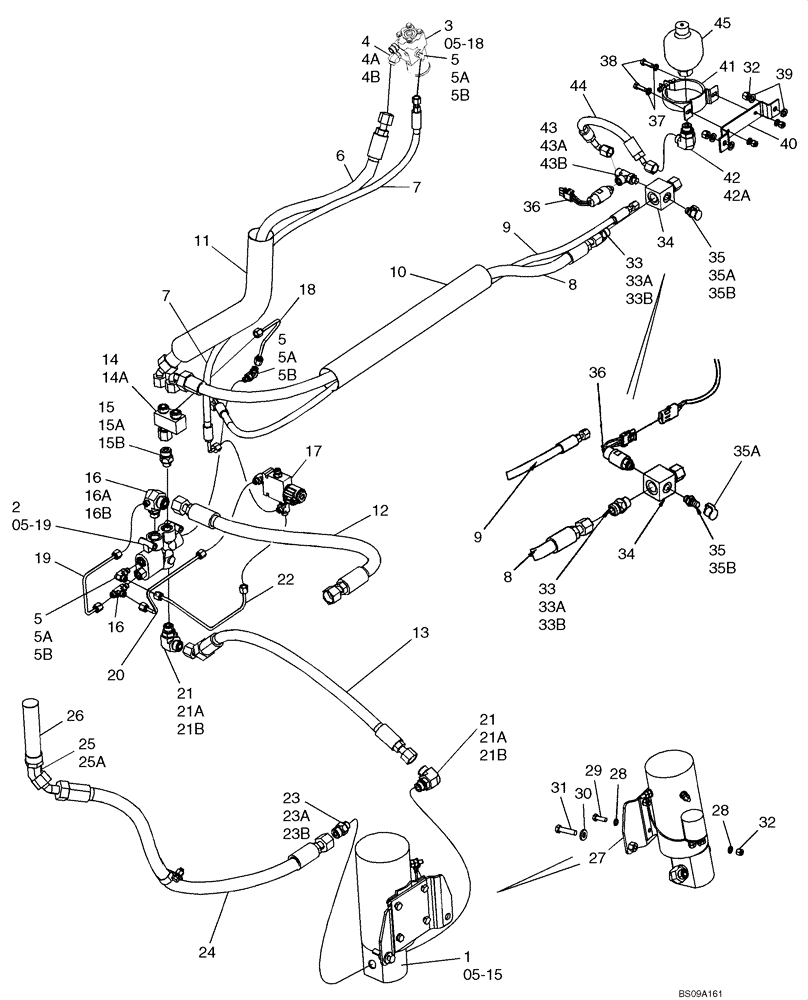

Запчасти Case 521E (05-08) - STEERING - HYDRAULICS - AUXILIARY (05) - STEERING

REF

INSTRUCTION

AUXILIARY STEERING HYDRAULICS, FOR ELECTRICAL COMPONENTS, SEE FIGURE 04-17

1шт.

1

87581480

ELECTRIC PUMP

Auxiliary Steering; See Figure 05-15

1шт.

2

87371432

HYDRAULIC VALVE

Auxillary Steering; See Figure 05-19

1шт.

3

87307056

HYDRAULIC VALVE

Steering Control; See Figure 05-18

1шт.

4

700-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. Refs. 4A, 4B

1шт.

4a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

4b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

5

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl. Refs. 5A, 5B

3шт.

5a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

5b

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

6

87629981

HOSE ASSY.

Controlled Flow, 1134 mm (44 - 1/3 in)

1шт.

7

87724965

HOSE ASSY.,6.35mm ID x 1350mm L, SAE 100R2

Auxiliary Load Sense, 1350 mm (53 - 9/64 in)

1шт.

8

87706316

HOSE ASSY.

Auxiliary Steering Pressure, 1300 mm (51 - 3/16 in)

1шт.

9

437596A1

HOSE ASSY.

Steering Load Sense, 1461 mm (57 - 1/2 in)

1шт.

10

87559559

HOSE PROTECTION

60 x 554 mm

1шт.

11

401525A1

HOSE PROTECTION,60.00 mm ID x 600.00 mm

1шт.

12

87436049

HOSE ASSY.

Excess Flow, 940 mm (37 in)

1шт.

13

87436048

HOSE ASSY.

Auxiliary Steering Pressure, 755 mm (29 - 23/32 in)

1шт.

14

376636A1

FITTING

Incl. Ref. 14A

1шт.

14a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

15

392354A1

VALVE, CHECK

Incl. Refs. 15A, 15B

1шт.

15a

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

15b

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

16

376794A1

FITTING

Incl. Refs. 16A, 16B

1шт.

16a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

16b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

17

445471A1

VALVE

Solenoid

1шт.

18

87706314

TUBE,.25" OD

Steering Load Sense

1шт.

19

87374103

HYD TUBE,4.57 mm ID x 6.35 mm OD x 112.4, 78.3 mm L

Auxiliary Steering

1шт.

20

87374100

HYD TUBE,4.57 mm ID x 6.35 mm OD x 200, 15.1 mm L

Auxiliary Steering

1шт.

21

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 21A, 21B

2шт.

21a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

21b

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

22

87451269

TUBE,6.35 mm OD

Load Sense

1шт.

23

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. Refs. 23A, 23B

1шт.

23a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

23b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

24

87662934

HOSE ASSY.

Auxiliary Steering Suction, 1145 mm (45 - 5/64 in)

1шт.

25

433530A1

ELBOW

Incl. Ref. 25A

1шт.

25a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

26

L129303

FILTER SCREEN

Hydraulic Tank

1шт.

27

87367580

BRACKET

Aux. Steering Hydraulic Pump

1шт.

28

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

7шт.

29

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

30

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

31

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

32

832-10410

NUT,M10 x 1.5, Cl 8

2-6шт.

33

376970A1

VALVE, CHECK

Incl. Refs. 33A, 33B

1шт.

33a

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

33b

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

34

400242A1

FITTING

Auxiliary Steering Switch

1шт.

35

178889A1

DIAGNOSTIC COUPLER

Incl. Refs. 35A, 35B

1шт.

35a

143349A1

DUST CAP

1шт.

35b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

36

398888A1

PRESSURE SWITCH

Auxiliary Steering

1шт.

REF

INSTRUCTION

THE FOLLOWING PARTS MAY OR MAY NOT BE USED

1шт.

37

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

38

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

39

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

40

87735674

CLAMP

Auxiliary Steering Accumulator

1шт.

41

87750434

CLAMP

Auxiliary Steering Accumulator

1шт.

42

87725875

FITTING

90 deg, Incl. Refs. 42A

1шт.

42a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

43

87725860

FITTING

L, Incl. Refs. 43A, 43B

1шт.

43a

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

43b

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

44

87727072

HOSE ASSY.

Auxiliary Steering Accumulator, 458 mm (18 - 1/3 in)

1шт.

45

87746283

ACCUMULATOR

Auxiliary Steering

1шт.
