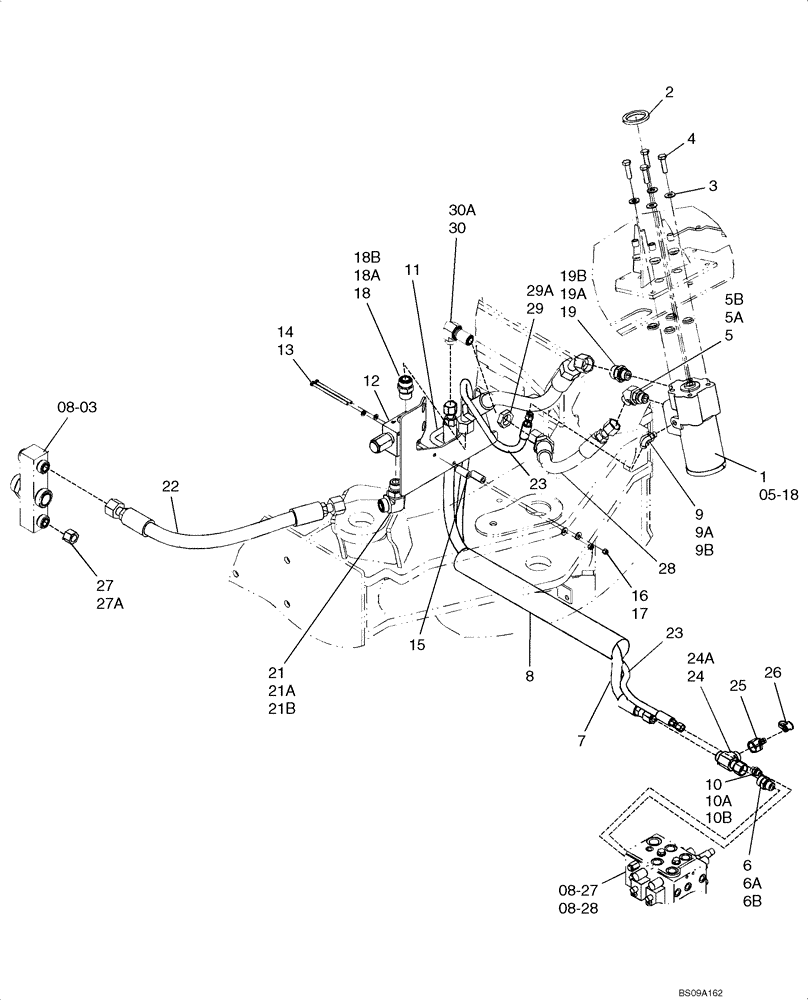

Запчасти Case 521E (05-07) - STEERING - HYDRAULICS (05) - STEERING

REF

INSTRUCTION

STANDARD STEERING, STEERING PRESSURE AND RETURN

1шт.

1

87307056

HYDRAULIC VALVE

Steering Control, See Figure 05-18

1шт.

2

76043957

GASKET

Steering Control

1шт.

3

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

4

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

5

700-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. Refs. 5A, 5B

1шт.

5a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

5b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

6

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. Refs. 6A, 6B

1шт.

6a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

6b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

7

87748440

HOSE ASSY.

HOSE ASSY., Steering Pressure, 1275 mm (50 - 3/16 in)

1шт.

8

87559559

HOSE PROTECTION

60 x 554 mm

1шт.

9

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl. Refs. 9A, 9B

1шт.

9a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

9b

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

10

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl. Refs. 10A, 10B

1шт.

10a

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

10b

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

11

87748438

BRACKET

Steering Return

1шт.

12

87427823

VALVE PRESSURE RELIE

Steering

1шт.

13

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

14

814-6110

BOLT,Hex, M6 x 1 x 110mm, Cl 8.8

2шт.

15

87563044

SPACER,8mm ID x 16mm OD x 35mm L

2шт.

16

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

17

832-10406

NUT,M6 x 1, Cl 8

2шт.

18

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. Refs. 18A, 18B

1шт.

18a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

18b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

19

700-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

Incl. Refs. 19A, 19B

1шт.

19a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

19b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

20

87629977

HOSE ASSY.

Steering Control to Relief Valve, 528 mm (20 - 25/32 in)

1шт.

21

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. Refs. 21A, 21B

1шт.

21a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

21b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

22

87629978

HOSE ASSY.

Steering Relief Valve to Filter, 552 mm (21 - 47/64 in); If Used

1шт.

23

87629974

HOSE ASSY.

Steering Load Sense, 2067 mm (80 - 3/8 in)

1шт.

22

87476356

HOSE ASSY.

Steering Relief Valve to Filter, 582 mm (22 - 29/32 in); If Used

1шт.

24

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl. Ref. 24A

1шт.

24a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

2шт.

25

324201A1

PLUG

1шт.

26

H434163

DUST CAP

1шт.

27

701-907

CAP,1-3/16" - 12

Incl. Refs. 27A, If Used

1шт.

27a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

28

87748439

HOSE ASSY.

HOSE ASSY., Steering Pressure, 445 mm (17 - 1/2 in)

1шт.

29

701-919

BHD LOCK NUT,1" - 14

Incl. Ref. 29A

1шт.

29a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

30

701-346

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Male ORFS

Incl. Ref. 30A

1шт.

30a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

2шт.
