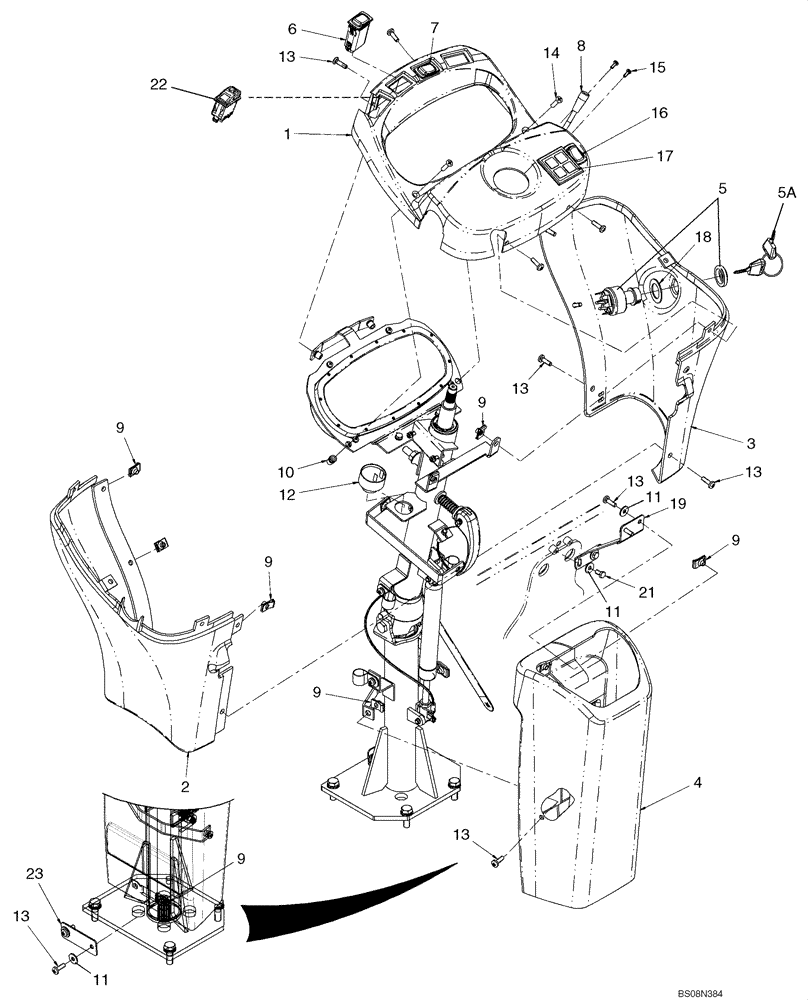

Запчасти Case 521E (05-06) - CANOPY - STEERING COLUMN - COVERS, SWITCHES (05) - STEERING

1

76303017

DASH PANEL

Dashboard Trim

1шт.

2

76303019

COVER

LH Steering Column

1шт.

3

76303020

COVER

RH Steering Column

1шт.

4

87752863

COVER

Lower Steering Column

1шт.

5

282775A1

IGNITION SWITCH

Incl. Ref. 5A

1шт.

5a

1964831C2

IGNITION KEY

Ignition

1шт.

6

374434A2

SWITCH

Pilot Control

1шт.

7

374426A2

SWITCH

Hazard

1шт.

8

389487A1

LIGHT SWITCH

1шт.

9

833-40306

SPRING NUT,M6, U

11шт.

10

404287A1

INSERT,M6

2шт.

11

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6шт.

12

76028370

HORN

Buzzer

1шт.

12a

87517129

WIRE HARNESS

Buzzer, Not Illustrated

1шт.

13

540-719

SCREW,Cross Pan Hd, M6 x 20

15шт.

14

87645506

SCREW,Oval CSK, M6 x 25mm, Cl 5.8

M6 x 25

2шт.

15

840-1412

SCREW,Hex Skt, M4 x 12mm, Cl 4.8

2шт.

16

374424A2

PARK BRAKE SWITCH

1шт.

17

87372804

BOX

1шт.

18

76303478

BACK-UP RING

Nylon

1шт.

19

87752864

BRACKET

1шт.

21

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

22

87486588

SWITCH

Joystick Steering Activation

1шт.

23

87752865

PLATE

Bottom Trim Cover

1шт.
