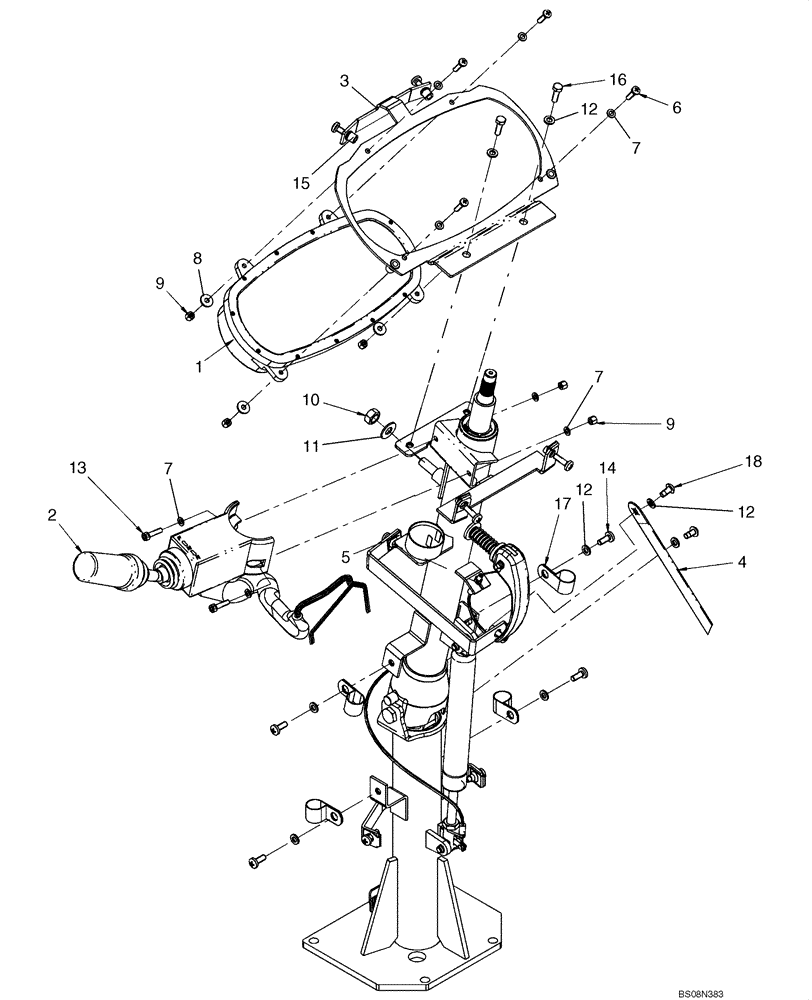

Запчасти Case 521E (05-05) - CANOPY - STEERING COLUMN - ACCESSORY (05) - STEERING

1

87372814

INSTRUMENT CLUSTER

1шт.

87372814R

REMAN-INSTR CLUSTER

521E TIER 3 (1/08-)

1шт.

87372814C

CORE-CLUSTER, INSTR

Return Number

1шт.

2

238270A1

CONTROL

1шт.

238270A1R

REMAN-JOYSTICK

521E - WHEEL LOADER TIER 3 (NA) (1/08-)

1шт.

238270A1C

CORE-JOYSTICK

Return Number

1шт.

3

76303295

BRACKET

1шт.

4

349372A1

GROUND CABLE

Ground

1шт.

5

833-40306

SPRING NUT,M6, U

2шт.

6

840-1520

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

4шт.

7

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

8шт.

8

895-25005

WASHER,M5 x 15 x 1.6

4шт.

9

832-10405

NUT,M5 x .8, Cl 8

6шт.

10

253347A1

NUT,Hex, M10 x 1.5

1шт.

11

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

1шт.

12

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

13

864-5020

HEX SOC SCREW,M5 x 20mm, Cl 8.8

2шт.

14

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

4шт.

15

404287A1

INSERT,M6

M6

2шт.

16

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

17

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

4шт.

18

261-2478

SELF-TAP SCREW,1/4 -20x1/2 F Pan

2шт.
