Запчасти Case 521E (04-26) - BATTERY - CABLES (04) - ELECTRICAL SYSTEMS

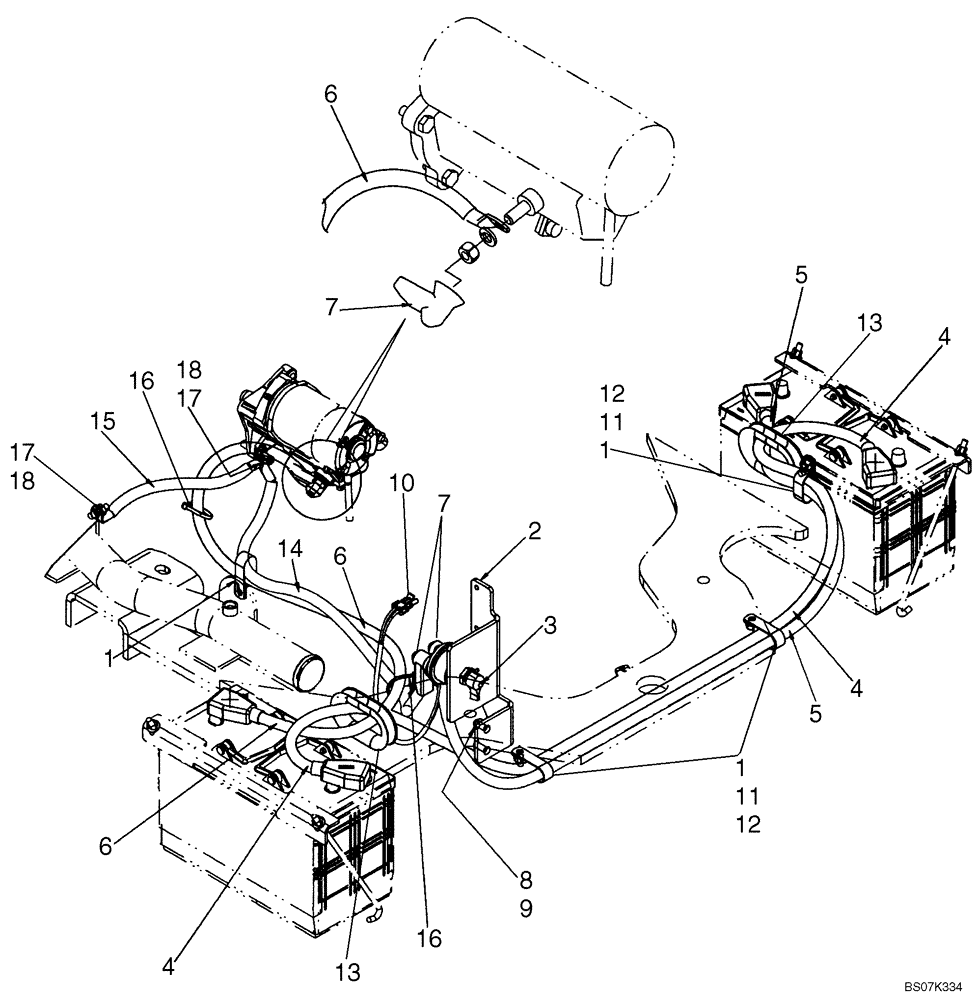

Схема запчастей Case 521E - (04-26) - BATTERY - CABLES (04) - ELECTRICAL SYSTEMS
11
12
9
6
11
17
1
7
5
13
12
6
14
16
1
6
10
7
16
13
8
2
17
15
1
4
18
18
3
4
4
5

Артикул

Название

Примечание

Количество

1

R54363

CLAMP

Double

4шт.

2

87450474

PLATE

Master Disconnect

1шт.

3

L126256

SWITCH

Battery, Master Disconnect

1шт.

4

87403980

ELECTRIC CABLE

Battery Crossover

1шт.

5

87403981

NEG BATTERY CABLE

Battery Disconnect - Negative

1шт.

6

87644187

ELECTRIC CABLE

Battery, Serial Range: Positive-Starter

1шт.

7

L126713

BOOT

Electrical

3шт.

8

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

10

L127676

WIRE HARNESS

Disconnect

1шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

13

398771A1

CONDUIT

Battery Cables

2шт.

14

87647821

NEG BATTERY CABLE

Battery, Serial Range: Positive-Starter

1шт.

15

87709640

ELECTRIC CABLE

Engine Block Ground

1шт.

16

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Cable Tie

2шт.

17

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

2шт.

18

253347A1

NUT,Hex, M10 x 1.5

Brass

2шт.

Выбрано товаров: 18
