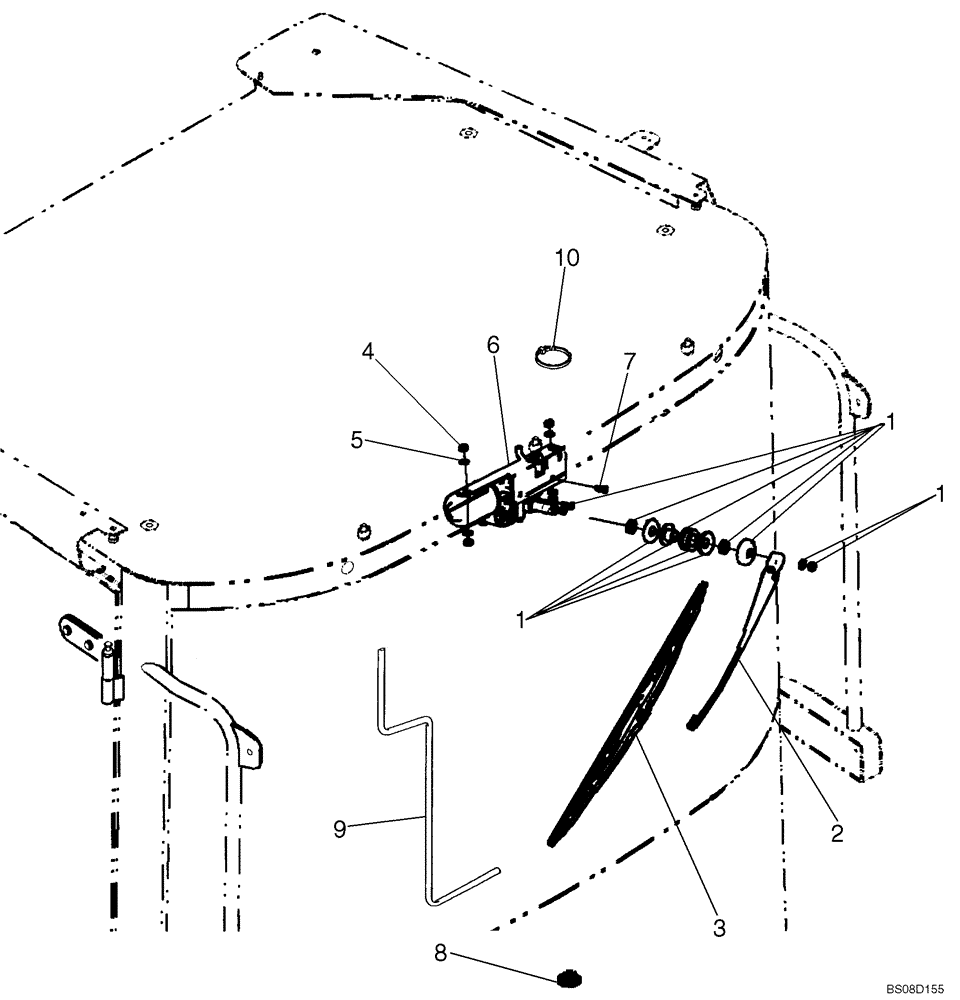

Запчасти Case 521E (04-23A) - CAB - WIPER, REAR (04) - ELECTRICAL SYSTEMS

1

87372247

WIPER MOTOR

MOTOR, WIPER Rear; Wiper Arm Mounting Hardware Included In Motor Assy.

1шт.

2

76303244

WIPER ARM,Single, 350mm L

350 mm

1шт.

3

82030990

WIPER BLADE,Single, 550mm L

500 mm

1шт.

4

825-1408

NUT,M8, Cl 8

1шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Wiper Motor

1шт.

6

76303327

BRACKET

1шт.

7

843-1616

SCREW,Flat , M6 x 16mm, Cl 4.8

1шт.

8

248-1169

GROMMET,3/8" ID x 5/8" Groove Dia

1шт.

9

31-2582

HOSE

Rear Wiper; 3962 mm (156 in)

1шт.

10

869707C1

STRAP,368.3mm L

Wire Tie

1шт.
