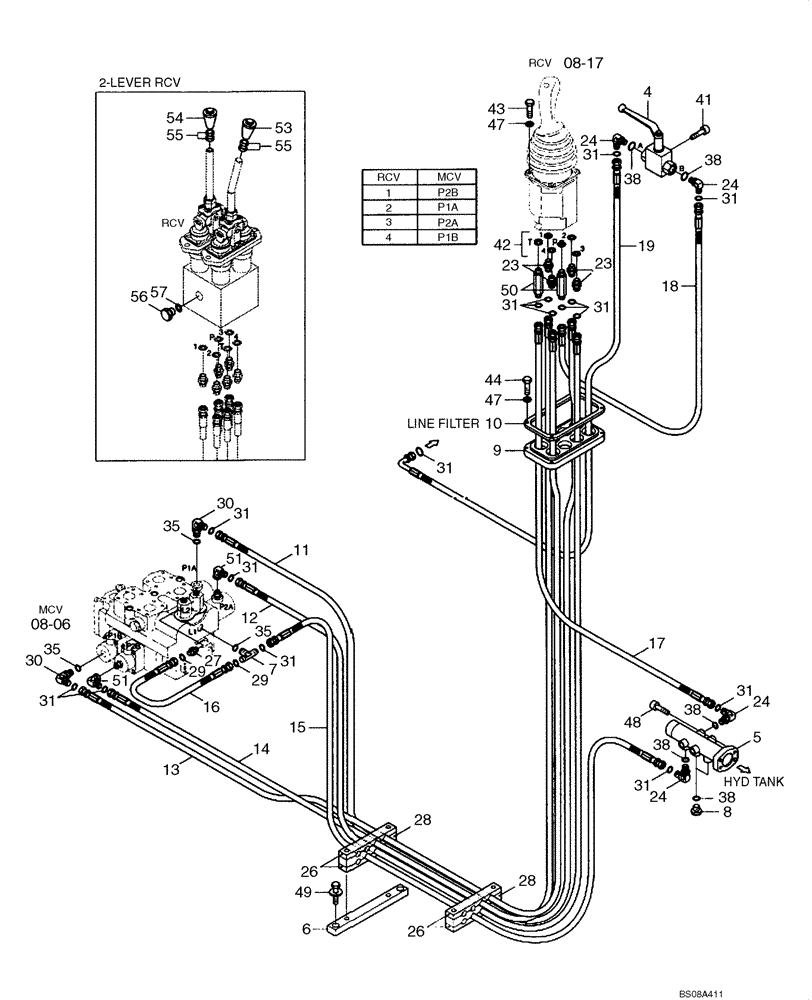

Запчасти Case 1221E (08-12[01]) - HYDRAULICS - PILOT CONTROL LINES (A) (87700435) (08) - HYDRAULICS

4

31LB-10170

CONTROL VALVE

1шт.

5

31LH-10010CY

PIPE

WA

1шт.

6

31L6-01730

PLATE

1шт.

7

31LH-10040

TEE

1шт.

8

P220-110103

PLUG,G 3/8

2шт.

9

31L7-10040

PLATE

1шт.

10

31L7-10030

RUBBER INSULATOR

1шт.

11

P910-062060

HOSE ASSY.

ORFS 0 x 0

1шт.

12

P910-062061

HOSE ASSY.

ORFS 0 x 0

1шт.

13

P910-062071

HOSE ASSY.

ORFS 0 x 0

1шт.

14

P910-062076

HOSE ASSY.

ORFS 0 x 0

1шт.

15

P910-062063

HOSE ASSY.

ORFS 0 x 0

1шт.

16

P910-042009

HOSE ASSY.

ORFS 0 x 0

1шт.

17

P910-062026

HOSE ASSY.

ORFS 0 x 0

1шт.

18

P910-062010

HOSE ASSY.

ORFS 0 x 0

1шт.

19

P930-062020

HOSE ASSY.

ORFS 0 x 90

1шт.

23

X500-120011

HYD CONNECTOR

ORFS

4шт.

24

X520-110002

ELBOW,PF 3/8 x 11/16 - 16 UNF

90, ORFS

4шт.

26

31L6-01411

CLAMP

4шт.

27

31LB-10230

HYD CONNECTOR

ORFS

1шт.

28

31L6-01421

CLAMP

2шт.

29

S621-011001

O-RING,9/16 - 18 UNF

ORFS

2шт.

30

31LB-10240

ELBOW

90, ORFS

2шт.

31

S621-012001

O-RING

ORFS

16шт.

35

S611-012001

O-RING

3шт.

38

S631-014004

O-RING

6шт.

41

906036R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 40mm, Cl 10.9

2шт.

42

P391-040000

WASHER

COPPER

6шт.

43

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

4шт.

44

86579344

BOLT,Hex, M6 x 35mm, Cl 10.9

4шт.

47

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

8шт.

48

863-12030

HEX SOC SCREW,M12 x 30mm, Cl 12.9

4шт.

49

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

49-1

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

50

X511-204529

HYD CONNECTOR

LONG, ORFS

2шт.

51

31LB-10260

ELBOW

90, SWIVLE, ORFS (2-LEVER RCV)

2шт.

REF

INSTRUCTION

THE FOLLOWING PARTS MAY OR MAY NOT BE USED

1шт.

53

34L4-02330

KNOB

ASSY (2-LEVER RCV)

1шт.

54

31LB-10180

KNOB

ASSY (2-LEVER RCV)

1шт.

55

829-1412

NUT,M12, Cl 10.9

(2-LEVER RCV)

4шт.

56

P220-120102

PLUG

HEX (2-LEVER RCV)

1шт.

57

P391-040000

WASHER

COPPER (2-LEVER RCV)

1шт.
