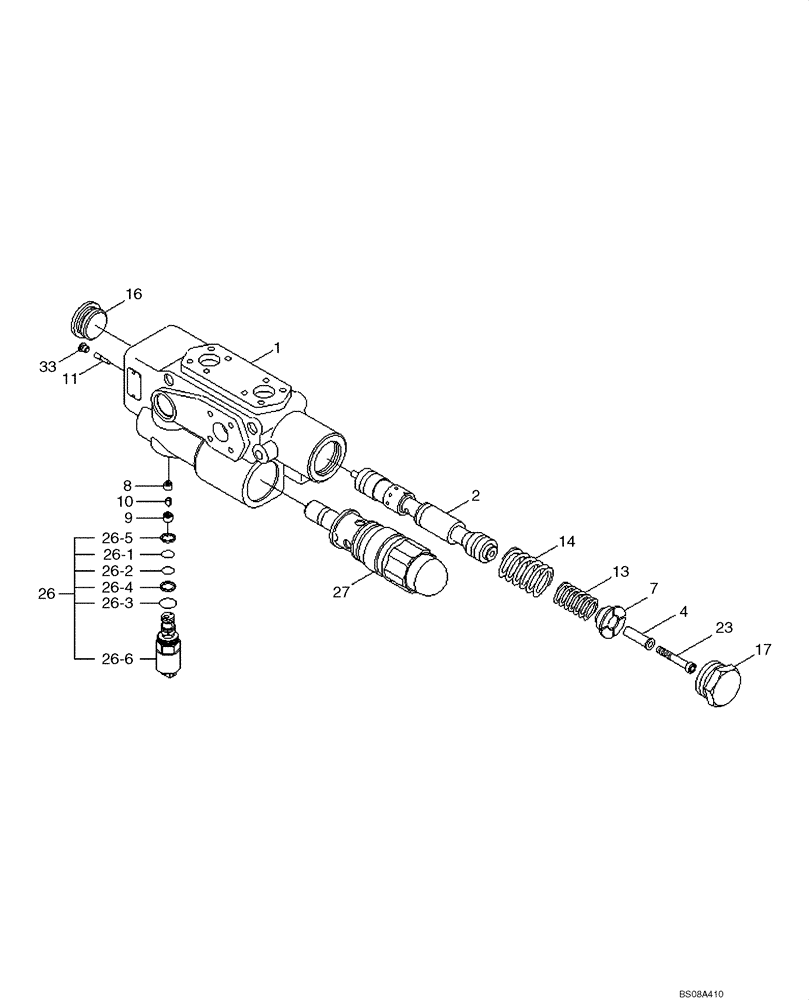

Запчасти Case 1221E (08-11[01]) - HYDRAULICS - RIDE CONTROL VALVE (87700413) (08) - HYDRAULICS

31LB-80000

CARTRIDGE

RIDE CONTROL VALVE

1шт.

2

ZGAR-00562

SPOOL

1шт.

4

ZGAR-00563

SLEEVE

1шт.

7

ZGAR-00564

SPRING

RETAINER

1шт.

8

ZGAR-00565

ADJUSTMENT SCREW

1шт.

9

ZGAR-00566

VALVE SEAT

1шт.

10

ZGAR-00567

SCREW

THROTTLE

1шт.

11

ZGAR-00568

SCREW

GRUB

1шт.

13

ZGAR-00569

SPRING

PRESSURE

1шт.

14

ZGAR-00570

SPRING

PRESSURE

1шт.

16

ZGAR-00571

PLUG

1шт.

17

ZGAR-00572

PLUG

1шт.

23

ZGAR-00573

SCREW

SOCKET HEAD

1шт.

26

ZGAR-00574

SOLENOID VALVE

(FTWE)

1шт.

26-1

REF

INSTRUCTION

Not Available, Refer To Service Kit No.

1шт.

26-2

REF

INSTRUCTION

Not Available, Refer to Service Kit No.

1шт.

26-3

REF

INSTRUCTION

Not Available, Refer To Service Kit No.

1шт.

26-4

REF

INSTRUCTION

Not Available, Refer To Service Kit No.

1шт.

26-5

REF

INSTRUCTION

Not Available, Refer To Service Kit No.

1шт.

26-6

REF

INSTRUCTION

Not Available, Refer To Service Kit No.

1шт.

27

ZGAR-00575

VALVE

RELEIF (DBDS 30)

1шт.

33

ZGAR-00576

PLUG

1шт.

ZGAR-00577

SEAL KIT

RIDE CONTROL VALVE; Include(s) 26-1, 26-2, 26-3, 26-4, 26-5

1шт.
