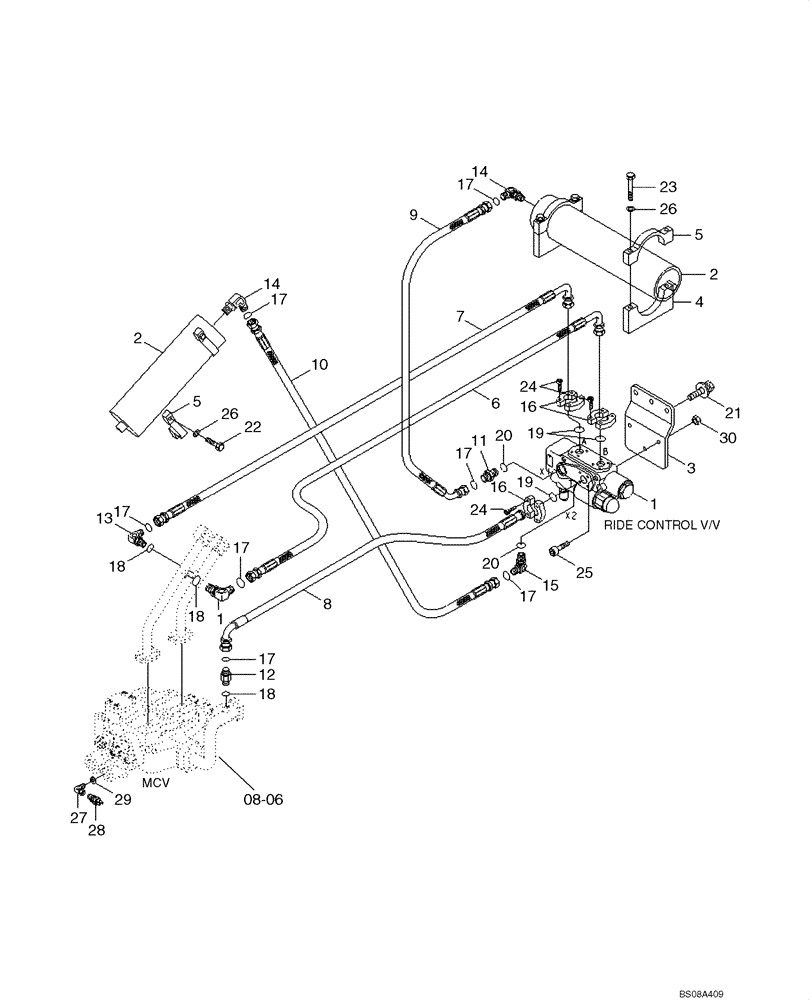

Запчасти Case 1221E (08-10[01]) - HYDRAULICS - RIDE CONTROL (87700424) (08) - HYDRAULICS

30LH-90900

FIP KIT

RIDE CONTROL GROUP

1шт.

1

NSS

NOT SOLD SEPARAT

RIDE CONTROL VALVE; Reference Figure 08-11

1шт.

2

31LB-94000

ACCUMULATOR

2шт.

3

31LH-90161

PLATE

WA; Replaces 31LH-90160

1шт.

4

31LB-90290CY

CLAMP

2шт.

5

31LB-90340CY

CLAMP

UPPER

4шт.

6

31LH-90170

HOSE ASSY.

1шт.

7

31LH-90181

HOSE ASSY.

Replaces 31LH-90180

1шт.

8

31LH-90191

HOSE ASSY.

Replaces 31LH-90190

1шт.

9

P920-164021

HOSE ASSY.

ORFS 0 x 45

1шт.

10

P910-164020

HOSE ASSY.

ORFS 0 x 0; Replaces P910-164018

1шт.

11

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

1шт.

12

X511-116556

HYD CONNECTOR

ORFS

1шт.

13

X520-110005

ELBOW

90, ORFS

2шт.

14

31FQ-20020

ELBOW

90

2шт.

15

31LB-90431

90 ELBOW

90; Replaces 31LB-90430

1шт.

16

290045R1

FLANGE

FLANGE SPLIT

6шт.

17

S621-021001

O-RING

ORFS 17/16-12UNF

5шт.

18

S631-029004

O-RING

PF1

3шт.

19

Y171-027004

O-RING

3шт.

20

Y161-033001

O-RING

2шт.

21

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

3шт.

21-1

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

22

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

23

S017-121456

BOLT

HEX

4шт.

24

863-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

12шт.

25

863-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

If Used

3шт.

25

S109-101306

SPECIAL BOLT

If Used

3шт.

26

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

27

31LB-90220

ELBOW

90 SWIVLE

1шт.

28

31L7-90030

SWITCH

PRESSURE

1шт.

29

P392-120000

WASHER

COPPER

1шт.
