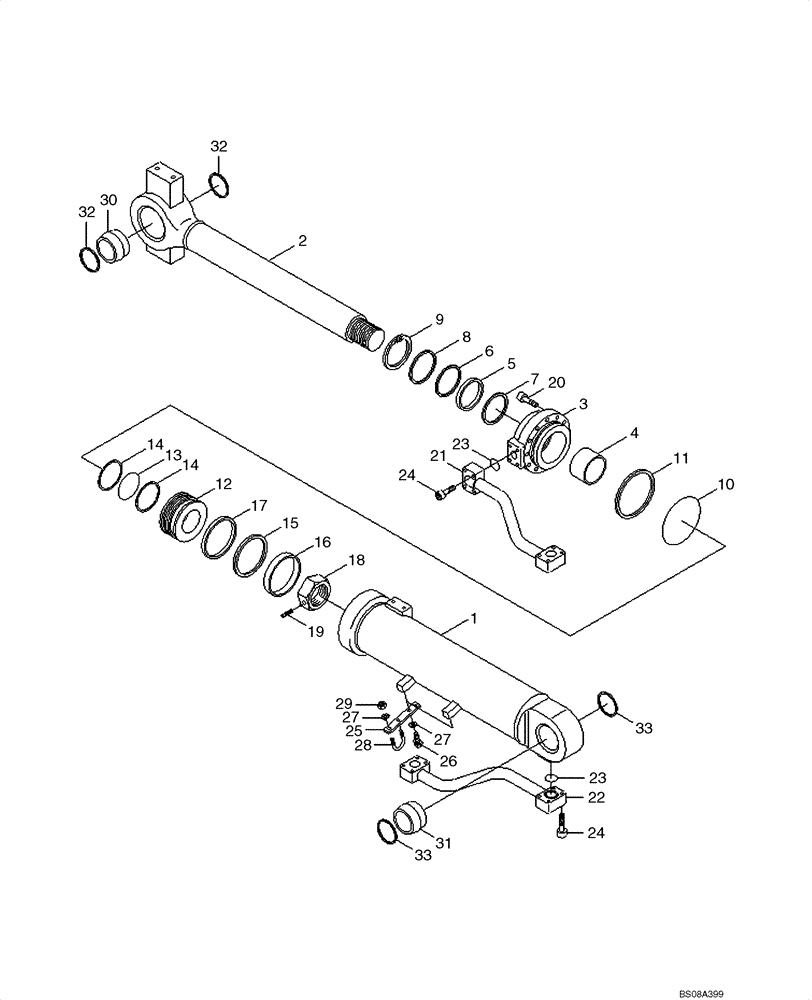

Запчасти Case 1221E (08-08[01]) - HYDRAULICS - BUCKET CYLINDER (87700446) (08) - HYDRAULICS

31LH-20030CY

BUCKET CYLINDER

LH; Not Illustrated

1шт.

31LH-20030CYR

REMAN-HYD CYLINDER

LH; Not Illustrated

1шт.

31LH-20030CYC

CORE-HYD CYLINDER

Return Number

1шт.

31LH-20240CY

BUCKET CYLINDER

LH XR (EXTENDED REACH) Not Illustrated

1шт.

31LH-20240CYR

REMAN-HYD CYLINDER

LH XR (EXTENDED REACH) Not Illustrated

1шт.

31LH-20240CYC

CORE-HYD CYLINDER

Return Number

1шт.

31LH-20040CY

BUCKET CYLINDER

RH; Not Illustrated

1шт.

31LH-20240CYR

REMAN-HYD CYLINDER

RH; Not Illustrated

1шт.

31LH-20240CYC

CORE-HYD CYLINDER

Return Number

1шт.

31LH-20250CY

BUCKET CYLINDER

RH XR (EXTENDED REACH) Not Illustrated

1шт.

31LH-20250CYR

REMAN-HYD CYLINDER

RH XR (EXTENDED REACH) Not Illustrated

1шт.

31LH-20250CYC

CORE-HYD CYLINDER

Return Number

1шт.

1

31Y2-09350CY

TUBE

ASSY, LH

1шт.

1

31Y2-10280CY

TUBE

ASSY, LH XR (EXTENDED REACH)

1шт.

1

31Y2-09360CY

TUBE

ASSY, RH

1шт.

1

31Y2-10290CY

TUBE

ASSY, RH XR (EXTENDED REACH)

1шт.

2

31Y2-09410CY

ROD

ASSY, LH

1шт.

2

31Y2-10330CY

ROD

ROD SY, LH XR (EXTENDED REACH)

1шт.

2

31Y2-07160CY

ROD

ASSY, RH

1шт.

2

31Y2-10340CY

ROD

ASSY, RH XR (EXTENDED REACH)

1шт.

3

31Y2-03300CY

GLAND

1шт.

4

S731-080040

BUSHING

DU

1шт.

5

Y220-080011

SEAL

ROD; Refer To Service Kit No.

1шт.

6

Y180-080020

BACK-UP RING

Refer To Service Kit No.

1шт.

7

Y240-080011

RING

BUFFER; Refer To Service Kit No.

1шт.

8

Y110-080011

WIPER

DUST; Refer To Service Kit No.

1шт.

9

Y190-094000

RING

SNAP

1шт.

10

S631-150004

O-RING

Refer To Service Kit No.

1шт.

11

S641-150003

BACK-UP RING

Refer To Service Kit No.

1шт.

12

31Y2-03311

PISTON

1шт.

13

S632-080004

O-RING

Refer To Service Kit No.

1шт.

14

S642-080003

BACK-UP RING

Refer To Service Kit No.

2шт.

15

Y410-160000

SEAL

PISTON; Refer To Service Kit No.

1шт.

16

Y300-160100

RING

WEAR; Refer To Service Kit No.

1шт.

17

Y440-160000

RING

DUST; Refer To Service Kit No.

1шт.

18

31YC-62160

LOCK NUT

LOCK

1шт.

19

878-10512

HEX SOC SCREW,Set, M5 x 12mm, Cup Pt

SCREW

1шт.

20

379280

BOLT,Hex, M16 x 2 x 65mm, Cl 10.9, Full Thd

12шт.

21

31Y2-09430CY

PIPE

ASSY, B/RH

1шт.

21

31Y2-09440CY

PIPE

ASSY, R/RH

1шт.

22

31Y2-09450CY

PIPE

ASSY, B/LH

1шт.

22

31Y2-09460CY

PIPE

ASSY, B/RH

1шт.

23

Y171-024004

O-RING

Refer To Service Kit No.

2шт.

24

S107-100554

BOLT

SOCKET

8шт.

25

31Y2-09470

BRACKET

2шт.

26

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

27

892-11010

LOCK WASHER,M10

8шт.

28

S071-023430

U-BOLT

2шт.

29

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

30

31YC-13070

BUSHING

1шт.

31

31YC-13080

BUSHING

PIN

1шт.

32

Y000-090000

SEAL

DUST; Refer To Service Kit No.

2шт.

33

S700-095208

SEAL

DUST; Refer To Service Kit No.

2шт.

31Y2-03400

SEAL KIT

BUCKET CYLINDER; Includes 5, 6, 7, 8, 10, 11,13,14,15,16,17,23, 32, 33

1шт.
