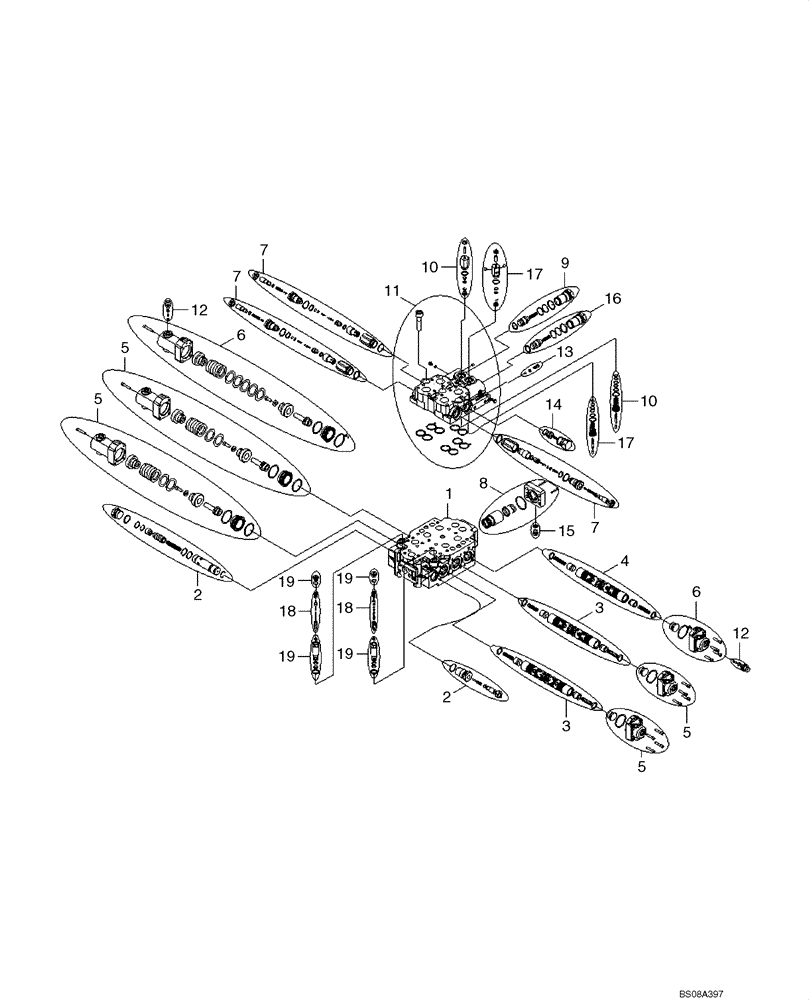

Запчасти Case 1221E (08-06[01]) - HYDRAULICS - MAIN CONTROL VALVE (3 SPOOL) (87700404) (08) - HYDRAULICS

31LB-00130

CONTROL VALVE

MAIN

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING GROUP

1шт.

2

ZUAH-00041

VALVE

MAIN R/V ASSY

1шт.

3

NSS

NOT SOLD SEPARAT

2шт.

4

NSS

NOT SOLD SEPARAT

1шт.

5

ZUAH-00044

SPOOL

CENTERING

2шт.

6

ZUAH-00045

SPOOL

CENTERING

1шт.

7

ZUAH-00046

VALVE

PORT RELIEF VALVE

3шт.

8

ZUAH-00047

VALVE

BACK PRESSURE

1шт.

9

ZUAH-00048

CHECK VALVE

ASSY

1шт.

10

ZUAH-00049

PILOT VALVE

ASSY

1шт.

11

NSS

NOT SOLD SEPARAT

CHECK BLOCK ASSY

1шт.

12

ZUAH-00051

ADAPTER

AND CHECK VLV

2шт.

13

ZUAH-00052

VALVE

SHUTTLE ASSY

1шт.

14

ZUAH-00053

CHECK VALVE

ASSY

1шт.

15

ZUAH-00054

PLUG

1шт.

16

ZUAH-00055

CHECK VALVE

ASSY

1шт.

17

ZUAH-00056

PILOT VALVE

ASSY

1шт.

18

ZUAH-00058

CARTRIDGE

O/L ASSY

2шт.

19

ZUAH-00059

SEAT

OVERLOAD SEAT ASSEMBLY

2шт.
