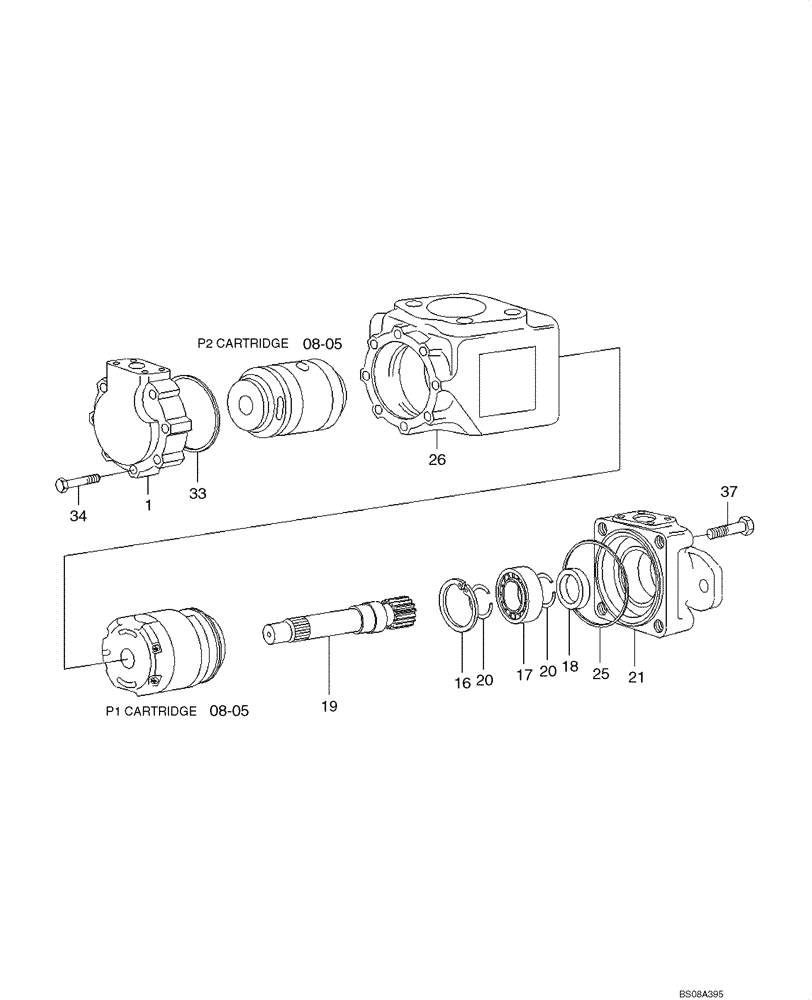

Запчасти Case 1221E (08-04[01]) - HYDRAULICS - MAIN PUMP (A) (87700401) (1) (08) - HYDRAULICS

31LH-00200

PUMP

MAIN

1шт.

31LH-00200R

REMAN-HYD PUMP

Main

1шт.

31LH-00200C

CORE-INJECTION PUMP

Return Number

1шт.

1

XJDF-00124

END

CAP

1шт.

16

XJDF-00100

RING

RETAINING

1шт.

17

XJDF-00101

BALL BEARING

Refer To Service Assembly No.

1шт.

18

XJDF-00102

SEAL

SHAFT (S5) Refer To Service Kit No.

1шт.

19

XJDF-00103

SHAFT

SPLINED (CODE3) Refer To Service Assembly No.

1шт.

20

XJDF-00104

RING

ROUND SECTION; Refer To Service Assembly No.

2шт.

21

XJDF-00105

CAP

MOUNTING

1шт.

25

XJDF-00109

RING

SQ SECTION RING; Refer To Service Kit No.

1шт.

26

XJDF-00110

HOUSING

1шт.

33

XJDF-00116

RING

SQ SECTION RING; Refer To Service Kit No.

1шт.

34

XJDF-00117

SCREW

7шт.

37

XJDF-00120

SCREW

4шт.

XJDF-00040

SEAL KIT

PUMP (S5) Includes 18, 25, 33

1шт.
