1
31L6-03381
BLOCK
1шт.
4
31LC-80030
ACCUMULATOR
ACCUMULATOR, BRAKE
2шт.
5
31LC-80040
ACCUMULATOR
ACCUMULATOR, BRAKE
2шт.
6
31L1-0139
LINE
FILTER
1шт.
7
31LB-40170
SWITCH
PRESSURE; Clutch Cut Off
1шт.
9
31L7-41030
SWITCH
PRESSURE; Service Brake
1шт.
10
31LF-00500
SWITCH
PRESSURE; Park / Charge
2шт.
12
X840-525252
TEE
R/TYPE, ORFS
1шт.
13
P930-064014
HOSE ASSY.
ORFS 0 x 90
1шт.
17
P910-082020
HOSE ASSY.
ORFS 0 x 0
1шт.
18
P930-064010
HOSE ASSY.
ORFS 0 x 90
1шт.
19
P910-064008
HOSE ASSY.
ORFS 0 x 0
1шт.
20
P930-064015
HOSE ASSY.
ORFS 0 x 90
1шт.
21
P930-064018
HOSE ASSY.
ORFS 0 x 90
2шт.
22
P910-062021
HOSE ASSY.
ORFS 0 x 0
1шт.
23
P930-064068
HOSE ASSY.
ORFS 0 x 90
1шт.
24
P910-084007
HOSE ASSY.
ORFS 0 x 0
1шт.
25
31LH-40030
PLATE
1шт.
26
627-12025
BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd
7шт.
26-1
896-11012
WASHER,13.5mm ID x 24mm OD x 3mm Thk
7шт.
32
31LB-40400
HYD CONNECTOR
ASSY
2шт.
33
31LB-40410
HYD CONNECTOR
ASSY
2шт.
36
X500-110002
HYD CONNECTOR,PF 3/8 x 11/16 - 16 UNF
ORFS
3шт.
37
X500-110003
HYD CONNECTOR,PF 1/2 x 13/16 - 16 UNF
ORFS
1шт.
38
X520-110002
ELBOW,PF 3/8 x 11/16 - 16 UNF
90, ORFS
5шт.
39
461-33824
HEX SOC SCREW,3/8" - 16 x 1-1/2"
4шт.
40
Y171-019004
O-RING
1шт.
41
P392-100000
WASHER
COPPER
1шт.
42
31LH-40110
HYD CONNECTOR
1шт.
43
X530-110003
ELBOW
45, ORFS
1шт.
45
627-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd
6шт.
45-1
896-11008
WASHER,9mm ID x 17mm OD x 2mm Thk
6шт.
45-2
892-11008
LOCK WASHER,8mm ID
6шт.
47
X520-110013
ELBOW,PF 3/8 x 13/16 - 16 UNF
90, ORFS
1шт.
48
S611-019001
O-RING
1шт.
49
S611-012001
O-RING
16шт.
50
31N5-30030
ELBOW
90, ORFS, LONG
2шт.
51
S631-014004
O-RING
12шт.
52
S631-018004
O-RING
2шт.
56
P391-040000
WASHER
COPPER
1шт.
57
P392-120000
WASHER
COPPER
3шт.
58
P392-180000
WASHER
COPPER
2шт.
59
P392-220000
WASHER
COPPER
2шт.
66
X520-110003
ELBOW
90, ORFS
1шт.
67
S621-014001
O-RING
ORFS 13/16-UNF
4шт.
71
S631-011004
O-RING,PF 1/4
PF1/4
2шт.
76
31LG-40050
ADAPTER
2шт.

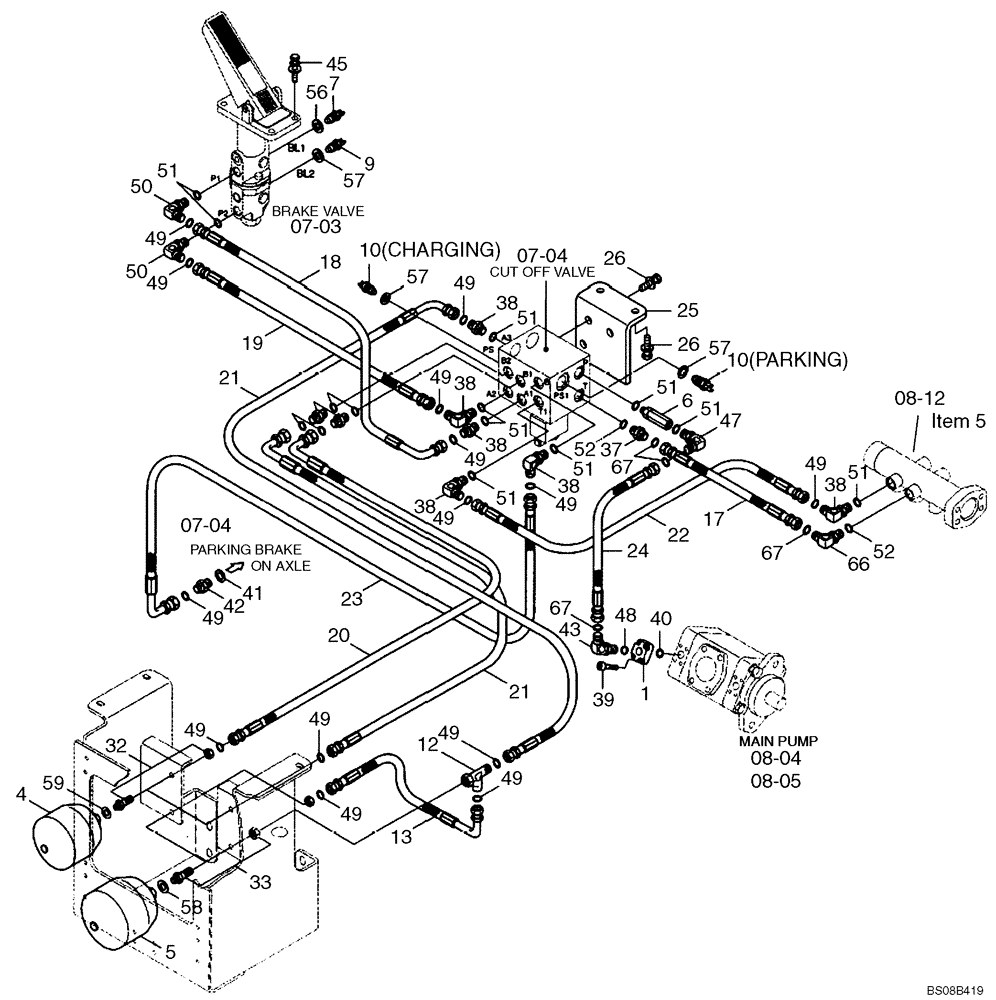

![Схема запчастей Case 1221E - (07-02[01]) - HYDRAULIC BRAKE LINES (B) (87700420) (07) - BRAKES](https://partsell.ru/storage/images/casece/1072999.png)
