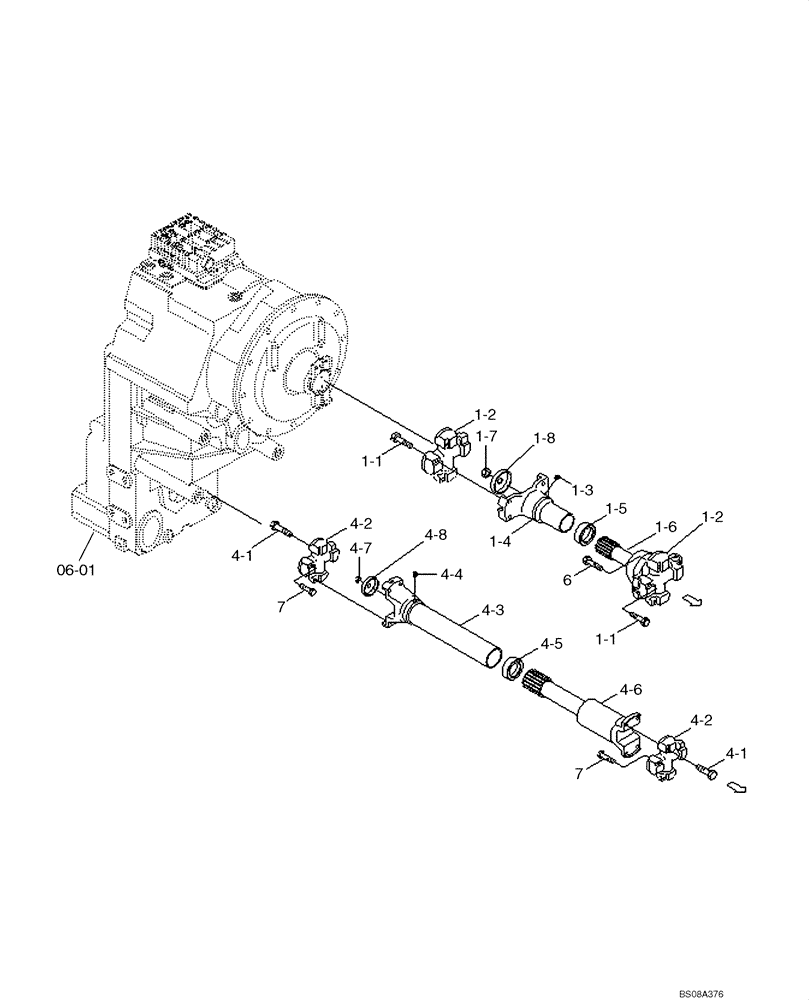

Запчасти Case 1221E (06-35[01]) - DRIVE LINES (B) (87700465) (2) (06) - POWER TRAIN

1

81L6-01160

SHAFT

DRIVE, UPPER; Transmission To Engine

1шт.

1-1

87745498

BOLT

(103-21UNF)

8шт.

1-2

87745499

BEARING ASSY

J/BEARING ASSY (100-7C-1)

2шт.

1-3

87745500

PLUG

PLUG (710-PT81)

1шт.

1-4

87745501

YOKE

SLIP (200-7C166L)

1шт.

1-5

87745502

SEAL

JOINT (810-415JK)

1шт.

1-6

87700552

SHAFT

YOKE (300-7C200L)

1шт.

1-7

87700550

VALVE PRESSURE RELIE

(910-5206)

1шт.

1-8

87745503

PLUG

(900-5610)

1шт.

4

81L6-00980

SHAFT

DRIVE, REAR; Transmission To Rear Axle

1шт.

4-1

87742581

BOLT

(103-21 UNF 859)

8шт.

4-2

87745505

BEARING ASSY

J/BEARING ASSY (100-8.5C-1)

2шт.

4-3

87745506

YOKE

SLIP (200-85C265L)

1шт.

4-4

87745500

PLUG

PLUG (710-PT81)

1шт.

4-5

87745508

SEAL

JOINT (810-53JK)

1шт.

4-6

40AF-85C433L

SHAFT

ASSY, SLIP

1шт.

4-7

87700550

VALVE PRESSURE RELIE

AIR (910-5206)

1шт.

4-8

87745509

PLUG

(901-65)

1шт.

6

81L2-3406

BOLT

8шт.

7

S088-080402

BOLT

HEX, UNIFIED

20шт.
