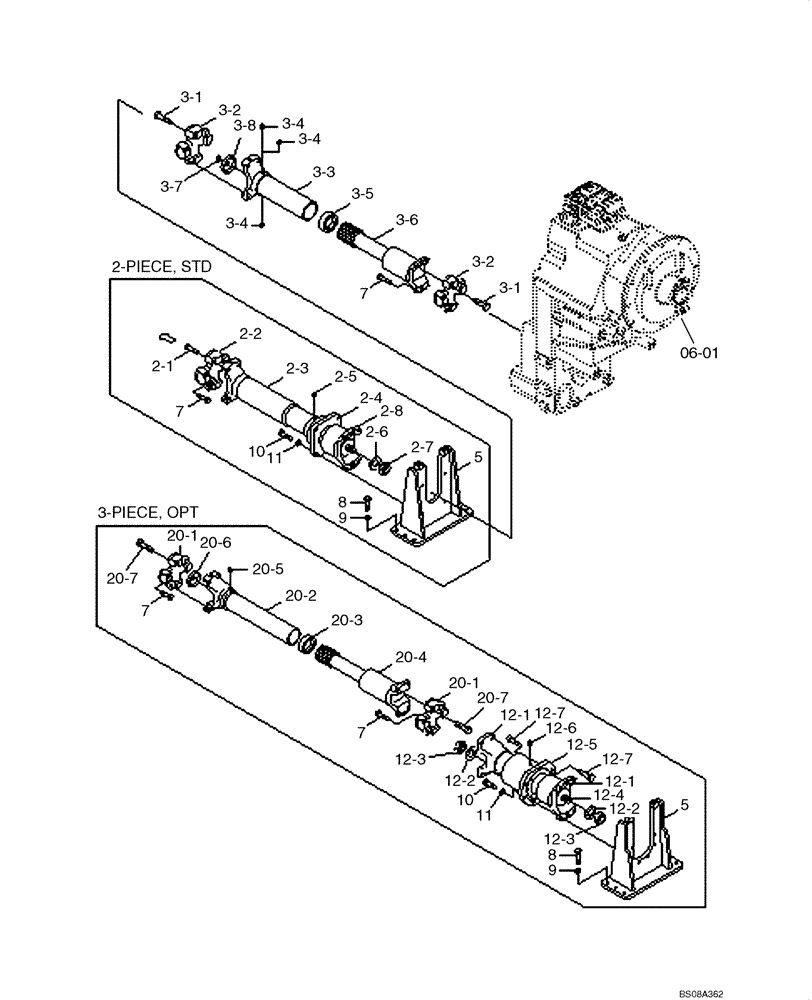

Запчасти Case 1221E (06-34[01]) - DRIVE LINES (A) (87700456) (1) (06) - POWER TRAIN

2

81L6-00960

SHAFT

FRONT DRIVE (2-PIECE, STD)

1шт.

2-1

87742581

BOLT

103-21 UNF 859 (2-PIECE, STD)

4шт.

2-2

87742582

BEARING ASSY

J/BEARING ASSY (100-9C-1) (2-PIECE, STD

1шт.

2-3

40AF-9C949L

SHAFT

ASSY, SLIP (2-PIECE, STD)

1шт.

2-4

87742583

FLANGED BEARING

FLANGE (700-UCF218) (2-PIECE, STD)

1шт.

2-5

87742585

SET SCREW

SET (710-M1215) (2-PIECE, STD)

1шт.

2-6

87742586

WASHER

(121-M36) (2-PIECE, STD)

1шт.

2-7

87745511

LOCK NUT

LOCK (110-M3515) (2-PIECE, STD)

1шт.

2-8

87742587

FLANGE

COMPLETE (210-9C138L) (2-PIECE, STD)

1шт.

3

81L6-00970

SHAFT

MIDDLE DRIVE

1шт.

3-1

87742581

BOLT

(103-21 UNF 859)

8шт.

3-2

87742582

BEARING ASSY

J/BEARING ASSY (100-9C-1)

2шт.

3-3

87742590

YOKE

SLIP (220-9C275L)

1шт.

3-4

87742524

LUBE NIPPLE

GREASE (101-PT81)

2шт.

3-5

87742591

SEAL

JOINT (810-65JK)

1шт.

3-6

40AF-9C603L

SHAFT

ASSY, SLIP

1шт.

3-7

87700550

VALVE PRESSURE RELIE

(910-5206)

2шт.

3-8

87742592

PLUG

(901-84)

1шт.

5

81L6-00991

BRACKET

WA (2-PIECE,STD)

1шт.

5

81LH-30030CY

BRACKET

WA (3-PIECE, OPT)

1шт.

7

S088-080402

BOLT

HEX, UNIFIED

20шт.

8

S017-180402

BOLT

HEX

6шт.

9

S441-180002

WASHER

HARDENED

6шт.

10

11124831

BOLT,Hex, M20 x 55, 10.9, Full Thd

(2-PIECE,STD)

4шт.

10

86639154

BOLT,Hex, M20 x 65mm, Cl 10.9

(3-PIECE, OPT)

6шт.

11

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

HARDENED (2-PIECE, STD)

4шт.

11

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

HARDENED (3-PIECE, OPT)

6шт.

12

81LH-30020

BEARING ASSY

CENTER (3-PIECE, OPT)

1шт.

12-1

87742587

FLANGE

COMPLETE (210-9C138L) (3-PIECE, OPT)

2шт.

12-2

87742586

WASHER

(121-M36) (3-PIECE, OPT)

2шт.

12-3

87745511

LOCK NUT

LOCK (110-M3615) (3-PIECE, OPT)

2шт.

12-4

87700551

SHAFT

END (350-70455L) (3-PIECE, OPT)

1шт.

12-5

87745491

HOUSING

CASE (250-9C152L) (3-PIECE, OPT)

1шт.

12-6

87742525

LUBE NIPPLE

GREASE (810-PT81) (3-PIECE, OPT)

1шт.

12-7

87745492

BOLT

(810-M8125) (3-PIECE, OPT)

16шт.

20

81LH-30010

SHAFT

FRONT DRIVE (3-PIECE, OPT)

1шт.

20-1

87742582

BEARING ASSY

J/BEARING ASSY (100-9C-1) (3-PIECE, OPT)

2шт.

20-2

87745494

YOKE

SLEEVE YOKE(220-9C245L) (3-PIECE, OPT)

1шт.

20-3

87742591

SEAL

JOINT (810-65JK) (3-PIECE, OPT)

1шт.

20-4

40AF-9C337L

SHAFT

ASSY (3-PIECE, OPT)

1шт.

20-5

87742524

LUBE NIPPLE

GREASE (101-PT81) (3-PIECE, OPT)

2шт.

20-6

87745496

PLUG

EXP (910-84) (3-PIECE, OPT)

1шт.

20-7

87742581

BOLT

(103-21UNF 859) (3-PIECE, OPT)

8шт.
