(06-27[01]) - AXLE - FRONT / REAR - DIFFERENTIAL CARRIER (87700464) (2)

Запчасти Case 1221E (06-27[01]) - AXLE - FRONT / REAR - DIFFERENTIAL CARRIER (87700464) (2) (06) - POWER TRAIN

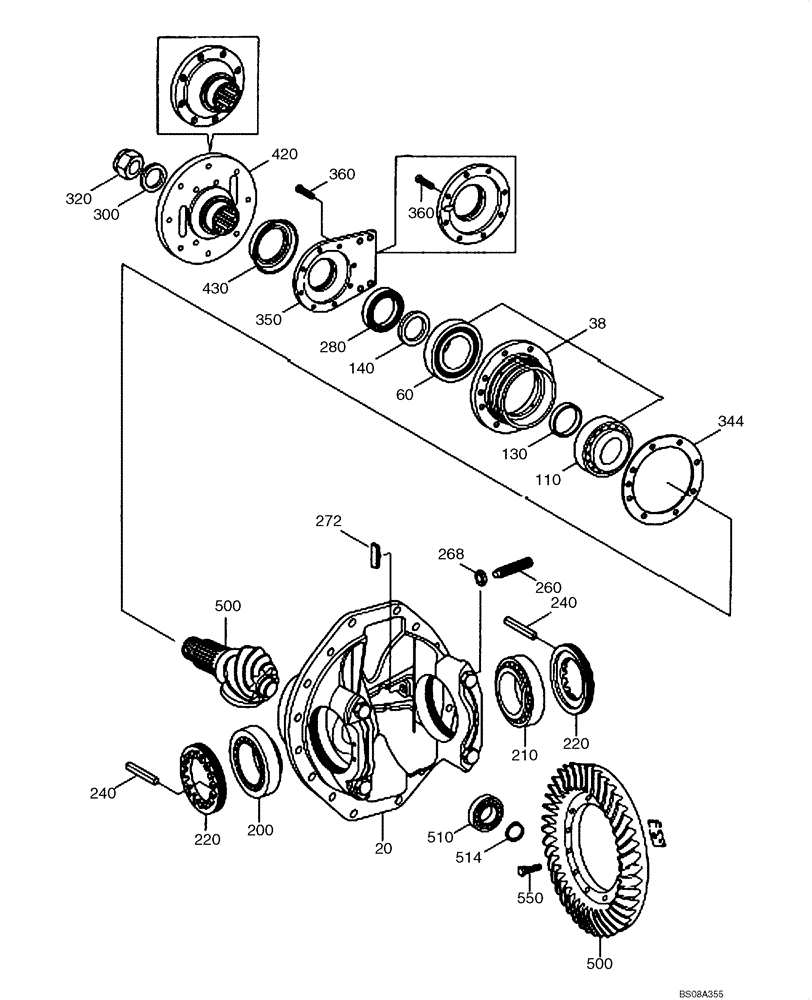

Схема запчастей Case 1221E - (06-27[01]) - AXLE - FRONT / REAR - DIFFERENTIAL CARRIER (87700464) (2) (06) - POWER TRAIN
430
130
268
240
220
510
60
38
420
514
220
550
110
280
272
344
350
360
300
240
210
500
20
360
320
500
260
140
200
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

ZGAQ-01645

CARRIER

DIFFERENTIAL ASSY, FRONT

1шт.

ZGAQ-01649

CARRIER

DIFFERENTIAL ASSY, REAR

1шт.

20

ZGAQ-01601

HOUSING

AXLE DRIVE, FRONT

1шт.

20

ZGAQ-01729

HOUSING

AXLE DRIVE, REAR

1шт.

38

ZGAQ-01098

BUSHING

BEARING

1шт.

60

ZGAQ-00008

RING

BEARING, INNER

1шт.

110

ZGAQ-01099

BEARING WASHER

BEARING, INNER

1шт.

130

ZGAQ-00010

RING

SPACER 14.4

1шт.

130

ZGAQ-00011

RING

SPACER 14.3

1шт.

130

ZGAQ-00012

RING

SPACER 14.2

1шт.

130

ZGAQ-00013

RING

SPACER 14.1

1шт.

130

ZGAQ-00014

RING

SPACER 14.0

1шт.

130

ZGAQ-00015

RING

SPACER 13.8

1шт.

130

ZGAQ-00016

RING

SPACER 13.7

1шт.

130

ZGAQ-00017

RING

SPACER 13.6

1шт.

130

ZGAQ-00018

RING

SPACER 13.5

1шт.

130

ZGAQ-00019

RING

SPACER 13.4

1шт.

130

ZGAQ-00020

RING

SPACER 13.3

1шт.

130

ZGAQ-00021

RING

SPACER 13.2

1шт.

130

ZGAQ-00022

RING

SPACER 13.1

1шт.

140

308136

SHIM

WASHER

1шт.

200

ZGAQ-01594

ROLLER BEARING,105mm ID x 190mm OD x 39mm W

ROLLER

1шт.

210

ZGAQ-01595

ROLLER BEARING,100mm ID x 155mm OD x 36mm W

ROLLER

1шт.

220

ZGAQ-01596

NUT

ADJUSTING

2шт.

240

ZGAQ-01597

PIN

SLOT

2шт.

260

A48727

ADJUSTER,M22 x 1.5 x 80 mm

1шт.

268

ZGAQ-00029

NUT

HEX

1шт.

272

ZGAQ-00030

PAD

SLIDING

1шт.

280

373828A1

SEAL,90mm ID x 140mm OD x 12mm Thk

SHAFT

1шт.

300

ZGAQ-01599

WASHER

1шт.

320

119984A1

SLOTTED NUT

SLOTTED

1шт.

344

ZGAQ-00034

WASHER

1.0

1шт.

344

ZGAQ-00035

WASHER

0.5

1шт.

344

ZGAQ-00036

WASHER

0.3

1шт.

344

ZGAQ-00037

WASHER

0.1

1шт.

344

ZGAQ-00038

WASHER

0.15

1шт.

344

ZGAQ-00039

WASHER

0.20

1шт.

344

ZGAQ-00040

WASHER

0.60

1шт.

344

ZGAQ-00041

WASHER

0.70

1шт.

344

ZGAQ-00042

WASHER

0.80

1шт.

344

ZGAQ-00043

WASHER

0.90

1шт.

350

ZGAQ-01642

CAP

SEALING, REAR

1шт.

350

ZGAQ-01602

CAP

SEALING, FRONT

1шт.

360

ZGAQ-01603

SCREW

HEX

8шт.

420

ZGAQ-01643

FLANGE

INPUT, REAR

1шт.

420

ZGAQ-01605

FLANGE

INPUT, FRONT

1шт.

430

ZGAQ-00049

CAP

DUST

1шт.

430

ZGAQ-01606

PROTECTION

DUST

1шт.

500

ZGAQ-01613

GEAR SET

BEVEL, FRONT

1шт.

500

ZGAQ-01644

GEAR SET

BEVEL, REAR

1шт.

510

ZGAQ-00053

ROLLER BEARING

ROLLER

1шт.

514

ZGAQ-00054

RING

RETAINING

1шт.

550

ZGAQ-01604

LOCK BOLT

LOCKING

24шт.
