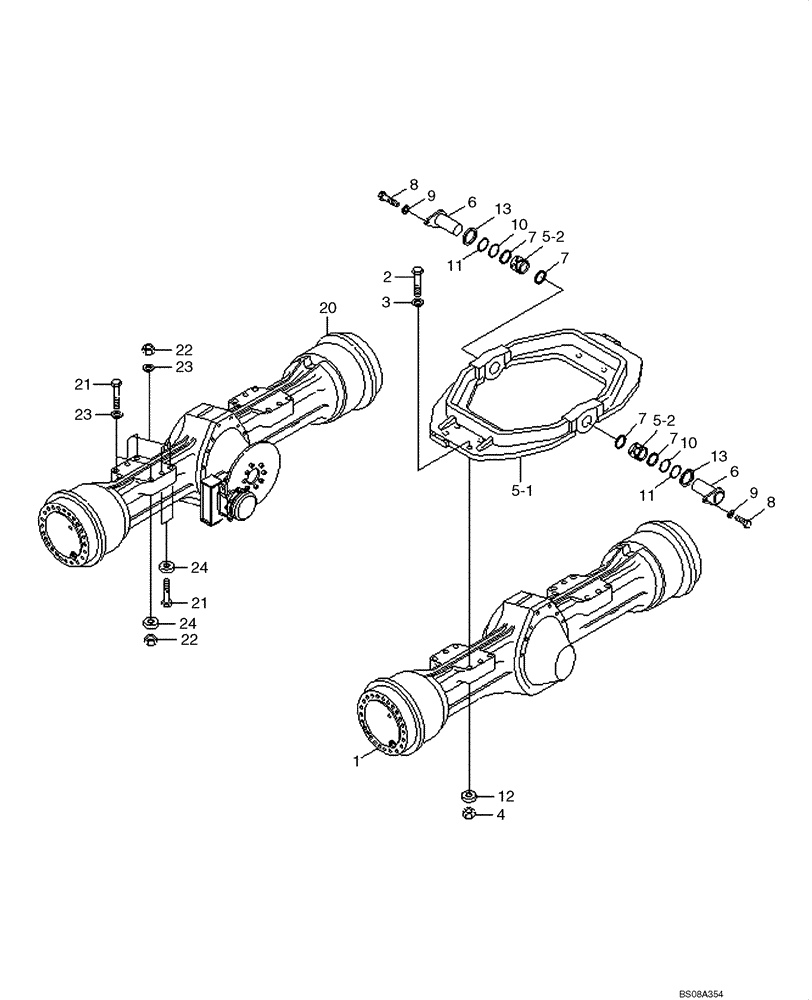

Запчасти Case 1221E (06-26[01]) - AXLE - FRONT / REAR MOUNTING (87700464) (1) (06) - POWER TRAIN

1

81L6-01302CY

DRIVE AXLE

REAR ASSY; Includes Parts On Figures 06-26 - 06-30

1шт.

1

81L6-01302CYR

REMAN-REAR AXLE

1шт.

1

81L6-01302CYC

CORE-REAR AXLE

Return Number

1шт.

2

S018-332002

BOLT

HEX

12шт.

3

S441-330002

WASHER

HARDENED

12шт.

4

S206-331002

NUT

HEX

12шт.

5

81L6-01180CY

BOLSTER

ASSY; Not Illustrated

1шт.

5-1

81L6-00163

BOLSTER

WA

1шт.

5-2

81L6-00180

BUSHING

2шт.

6

81L6-00171CY

PIN

WA

2шт.

7

S700-090309

SEAL

DUST

4шт.

8

627-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

2шт.

9

61N8-00320

WASHER

HARDENED

2шт.

10

81L6-00190

SHIM

1.0T

2шт.

11

81L6-00200

SHIM

0.5T

2шт.

12

81L6-00780

SPACER

SHIM

12шт.

13

81L6-01270

SPACER

2шт.

20

81L6-01292CY

DRIVE AXLE

FRONT ASSY; Includes Parts On Figures 06-26 - 06-30

1шт.

20

81L6-01292CYR

REMAN-FRONT AXLE

1шт.

20

81L6-01292CYC

CORE-FRONT AXLE 4WD

Return Number

1шт.

21

S018-332006

BOLT

HEX; Replaces S018-33200D

12шт.

22

16036927

LOCK NUT

NUT, PT ALL MTL M33 x 2 05 ZND THIN

12шт.

23

S441-330006

WASHER

HARDENED

12шт.

24

81L6-00780

SPACER

12шт.
