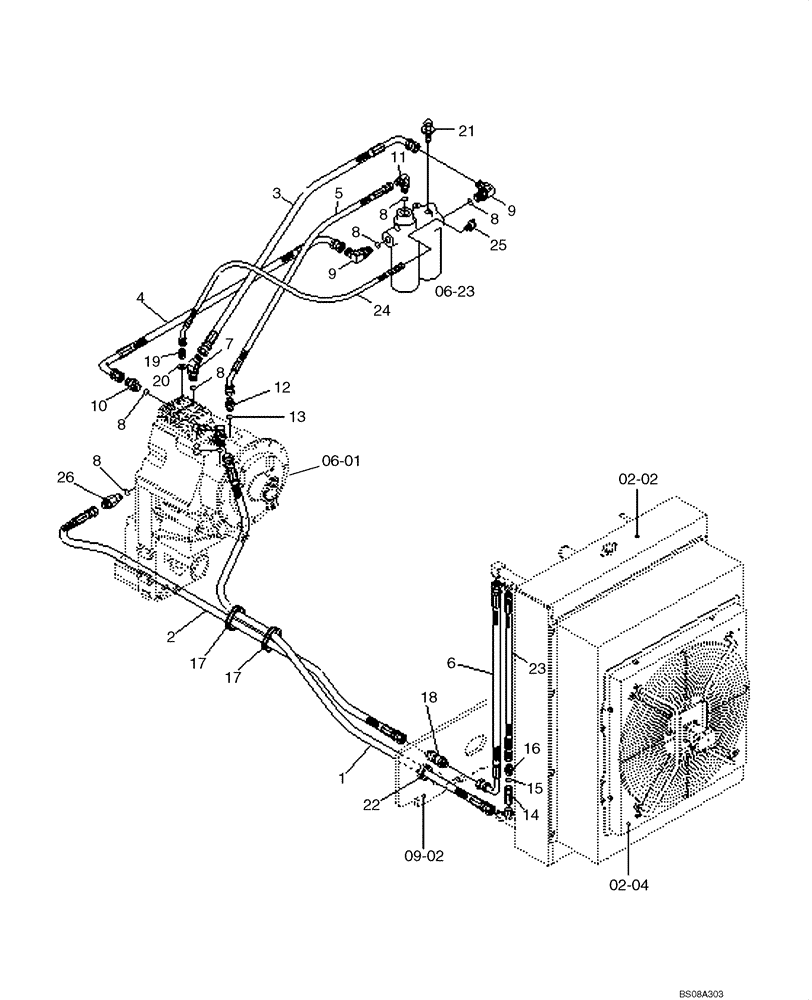

Запчасти Case 1221E (06-25[01]) - TRANSMISSION - HYDRAULIC CIRCUIT COOLING (87700417) (06) - POWER TRAIN

1

P600-201049

HOSE ASSY.

THD

1шт.

2

P620-201055

HOSE ASSY.

THD 0 x 90

1шт.

3

P620-201024

HOSE ASSY.

THD 0 x 90

1шт.

4

P780-201016

HOSE ASSY.

THD 90 x 90

1шт.

5

P610-121026

HOSE ASSY.

THD 0 x 45

1шт.

6

81LH-60020

HOSE ASSY.

1шт.

7

81L6-01150

ELBOW

45

2шт.

8

S631-039001

O-RING

7шт.

9

82L1-3313

ELBOW

90

2шт.

10

81L6-01120

HYD CONNECTOR

1шт.

11

81D5-60070

ELBOW

90

1шт.

12

81D5-60060

HYD CONNECTOR

1шт.

13

81D5-60050

O-RING

1шт.

14

81L6-01260

CHECK VALVE

1шт.

15

S631-029001

O-RING

2шт.

16

P010-110006

HYD CONNECTOR

1шт.

17

81L6-01170

GROMMET

2шт.

18

81LH-60030

HYD CONNECTOR

ASSY

1шт.

19

81LB-60060

HYD CONNECTOR

Replaces 81LB-60050 Used On Some Models

1шт.

20

Y161-010001

O-RING

Replaces P392-100000 Used On Some Models

1шт.

21

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

21-1

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

22

S690-060100

GROMMET

1шт.

23

81LH-60040

HOSE ASSY.

1шт.

24

P610-043024

HOSE ASSY.

THD 0 x 45

1шт.

25

31EM-30210

SCREW

SCREW

1шт.

26

81LH-60060

HYD CONNECTOR

LONG

1шт.
