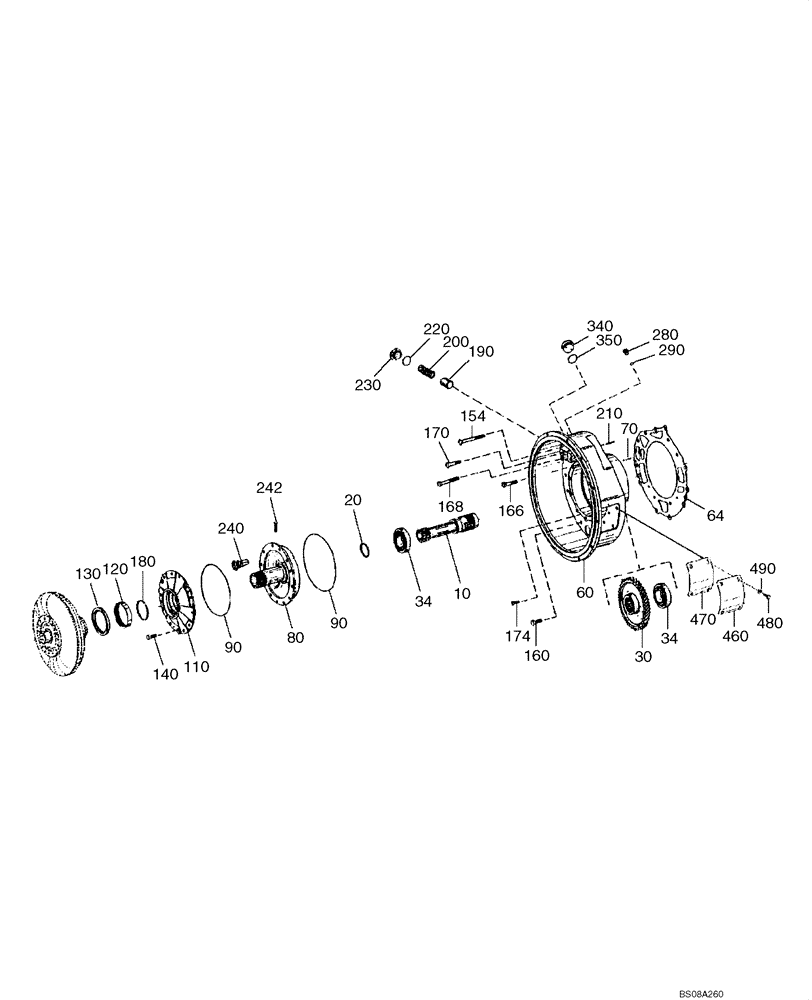

Запчасти Case 1221E (06-04[01]) - TRANSMISSION - INPUT SHAFT AND HOUSING (11LH-01100) (3) (06) - POWER TRAIN

10

8605377

SHAFT

INPUT

1шт.

20

S301831

PISTON RING

1шт.

30

8900126533

RING GEAR

1шт.

34

ZGAQ-00206

ROLLER BEARING

2шт.

60

ZGAQ-00207

CONVERTER

BELL

1шт.

64

S301836

GASKET

1шт.

70

8605380

PLUG

KOENIG

3шт.

80

8605381

FLANGE

OIL FEED

1шт.

90

8605382

O-RING,224mm ID x 3mm Width

Replaces ZGAQ-01671

2шт.

110

8605383

BEARING COVER

BEARING

1шт.

120

S301867

NEEDLE BEARING,Needle, 90mm ID x 100mm OD x 16mm W

SLEEVE, NEEDLE

1шт.

130

S301868

SEAL

SEALRING SHAFT

1шт.

140

100096A1

SCREW

M10 x 35

12шт.

154

100097A1

BOLT

M12 x 95

2шт.

160

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

10шт.

166

100098A1

BOLT

1шт.

168

86505259

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

1шт.

170

185526A1

SCREW

M12 x 55

1шт.

174

87582458

SCREW,Hex, M8 x 30mm

M8 x 30

4шт.

180

100100A1

CIRCLIP

85 x 4

1шт.

190

100101A1

PISTON

1шт.

200

100103A1

SPRING

COMPRESSION

1шт.

210

100105A1

PIN

SLOTTED 6 x 50

1шт.

220

31354R1

O-RING,2.65mm Thk x 32.5mm ID, Cl 5, 75 Duro

1шт.

230

87454905

PLUG

SCREW

1шт.

240

8605384

VALVE PRESSURE RELIE

1шт.

242

8603796

ROLL PIN,6mm OD x 20mm L

6 x 20

1шт.

280

8603366

PLUG

SCREW

1шт.

290

8603215

O-RING,8mm ID x 1.5mm Width

8 x 1.5

1шт.

340

100087A1

PLUG

SCREW

2шт.

350

8603207

O-RING,2.5mm Thk x 38mm ID

PLUG

2шт.

460

8605471

PLATE

COVER

1шт.

470

8605470

PLATE

COVER

1шт.

480

613-6018

BOLT,Hex, M6 x 1 x 18mm, Cl 8.8, Full Thd

4шт.

490

8605472

WASHER

M6

4шт.
