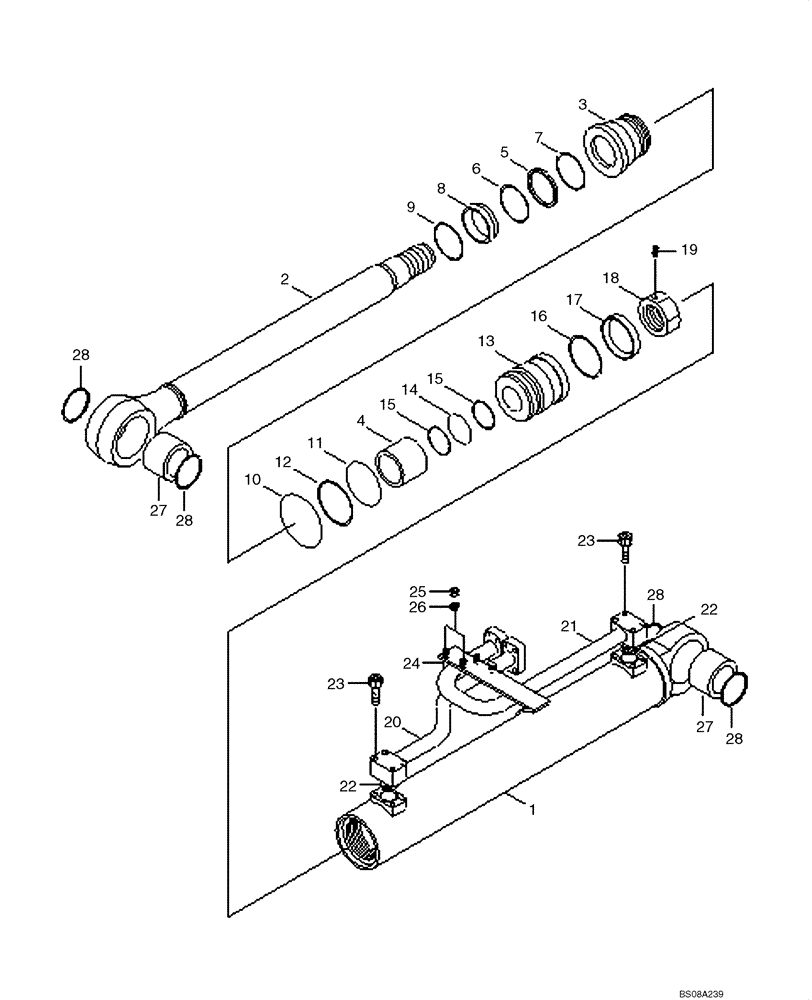

Запчасти Case 1221E (05-10[01]) - STEERING CYLINDER ASSY (87700444) (05) - STEERING
![Схема запчастей Case 1221E - (05-10[01]) - STEERING CYLINDER ASSY (87700444) (05) - STEERING](https://partsell.ru/storage/images/casece/558621.png)
№
Артикул
Название
Примечание
Количество
31LH-30080CY
STEERING CYLINDER
LH
1шт.
31LH-30080CYR
REMAN-HYD CYLINDER
1221E WHEEL LOADER TIER 3 (NA), LH (3/08-)
1шт.
31LH-30080CYC
CORE-HYD CYLINDER
Return Number
1шт.
31LH-30090CY
STEERING CYLINDER
RH
1шт.
31LH-30090CYR
REMAN-HYD CYLINDER
1221E WHEEL LOADER TIER 3 (NA), RH (3/08-)
1шт.
31LH-30090CYC
CORE-HYD CYLINDER
Return Number
1шт.
1
31Y2-03410CY
TUBE
ASSY, LH
1шт.
1-1
31Y2-03420CY
TUBE
ASSY, RH
1шт.
2
31Y2-03490CY
ROD
ASSY
1шт.
3
31Y2-03520CY
GLAND
GLAND
1шт.
5
Y220-055011
SEAL
ROD; Refer To Service Kit No.
1шт.
6
Y180-055020
BACK-UP RING
Refer To Service Kit No.
1шт.
7
Y240-055011
RING
BUFFER; Refer To Service Kit No.
1шт.
8
Y110-055011
WIPER
DUST; Refer To Service Kit No.
1шт.
9
Y190-069000
RING
SNAP
1шт.
10
S632-110001
O-RING
Refer To Service Kit No.
1шт.
11
S631-100004
O-RING
Refer To Service Kit No.
1шт.
12
S641-100003
BACK-UP RING
Refer To Service Kit No.
1шт.
15
S642-055003
BACK-UP RING
Refer To Service Kit No.
2шт.
16
Y410-110000
SEAL
PISTON; Refer To Service Kit No.
1шт.
17
Y300-110100
RING
WEAR; Refer To Service Kit No.
1шт.
18
31YC-62120
LOCK NUT
LOCK
1шт.
19
878-10512
HEX SOC SCREW,Set, M5 x 12mm, Cup Pt
SCREW
1шт.
20
31Y2-03540CY
PIPE
ASSY, R/LH
1шт.
20-1
31Y2-03550CY
PIPE
ASSY, R/RH
1шт.
21
31Y2-09480CY
PIPE
ASSY, B/LH
1шт.
21-1
31Y2-09490CY
PIPE
ASSY, B/RH
1шт.
24
S071-023430
U-BOLT
2шт.
25
829-1410
NUT,M10 x 1.5, Cl 10.9
4шт.
26
892-11010
LOCK WASHER,M10
4шт.
27
Y840-060001
SPHERICAL BEARING
SPHERICAL
2шт.
28
S602-105004
RING
RETAINING C-TYPE
4шт.
SEAL KIT
STEERING CYLINDER; Include(s) 5, 6, 7, 8, 10, 11, 12, 14, 15, 16, 17, 22 Refer To Service Kit No.
1шт.
Выбрано товаров: 38
