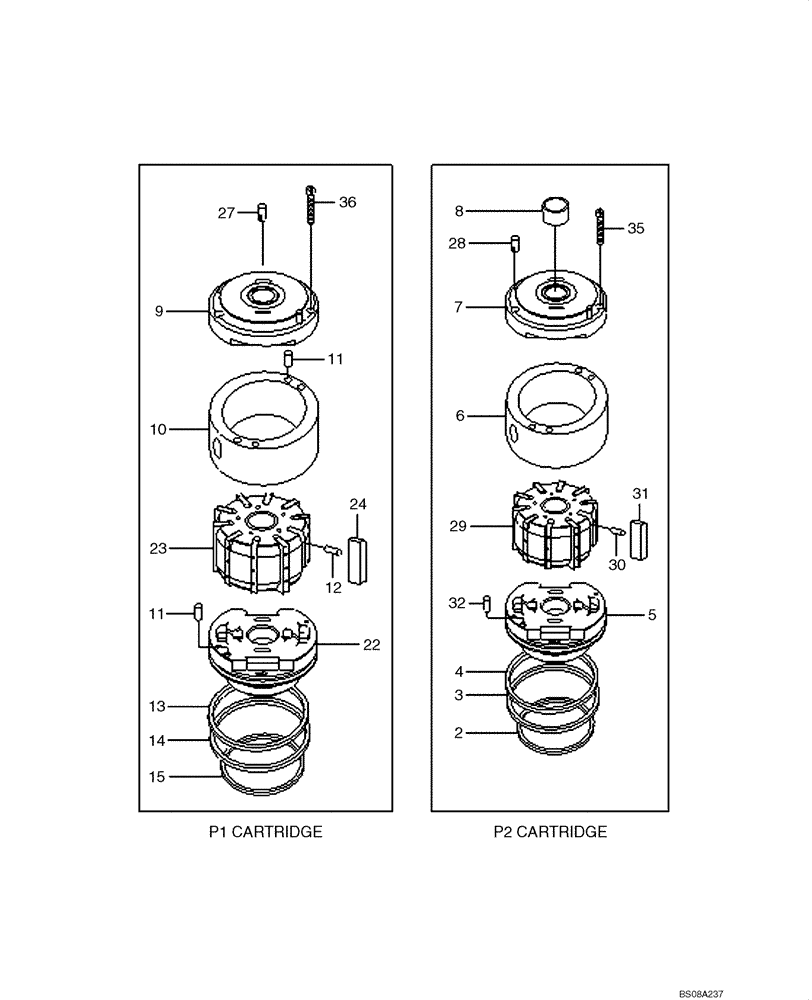

Запчасти Case 1221E (05-09[01]) - STEERING PUMP ASSY (B) (87700402) (05) - STEERING

2

XJDF-00088

RING

SQ SECTION

1шт.

3

XJDF-00089

RING

SQ SECTION

1шт.

4

XJDF-00060

BACK-UP RING

1шт.

5

XJDF-00125

PLATE

PRESSURE

1шт.

6

XJDF-00127

CAM

RING 008

1шт.

7

XJDF-00128

PLATE

REAR

1шт.

8

XJDF-00093

BUSHING

BEARING

1шт.

9

XJDF-00094

PLATE

REAR

1шт.

10

XJDF-00095

CAM

RING 042

1шт.

11

XJDF-00096

PIN

DOWEL

2шт.

12

XJDF-00097

PIN

VANE HOLDOUT

12шт.

13

XJDF-00067

BACK-UP RING

1шт.

14

XJDF-00098

RING

SQ SECTION

1шт.

15

XJDF-00099

RING

SQ SECTION

1шт.

22

XJDF-00106

PRESSURE RING

PRESSURE

1шт.

23

XJDF-00107

ROTOR

ASSY

1шт.

24

XJDF-00108

IMPELLER

VANE

12шт.

27

XJDF-00111

PIN

DOWEL

1шт.

28

XJDF-00112

PIN

DOWEL

1шт.

29

XJDF-00130

ROTOR

ASSY

1шт.

30

XJDF-00131

PIN

VANE HOLDOUT

12шт.

31

XJDF-00132

ANTI-WRAP PLATE

VANE

12шт.

32

XJDF-00115

PIN

DOWEL

2шт.

35

XJDF-00118

SCREW

2шт.

36

XJDF-00119

SCREW

2шт.

XJDF-00121

CARRIER

CARTRIDGE ASSY-B42 CCW (P1) Include(s) 9, 10, 11, 12, 13, 14, 15, 22, 23, 24, 27, 36

1шт.

XJDF-00134

CARRIER

CARTRIDGE ASSY-B08 CCW (P2) Include(s) 2, 3, 4, 5, 6, 7, 8, 28, 29, 30, 31, 32, 33, 35

1шт.

XJDF-00040

SEAL KIT

PUMP (S5) Include(s) 2, 3, 4, 13,14, 15, 18, 25, 33

1шт.

XJDF-00078

SHAFT

ASSY (CODE 3) Refer To Service Assy No. Include(s) 17, 19, 20

1шт.

XJDF-00122

PLATE

PORT PLATE REAR ASSY (P1) Include(s) 9, 27

1шт.

XJDF-00135

PLATE

PORT PLATE REAR ASSY (P2)Include(s) 7, 8, 28

1шт.
