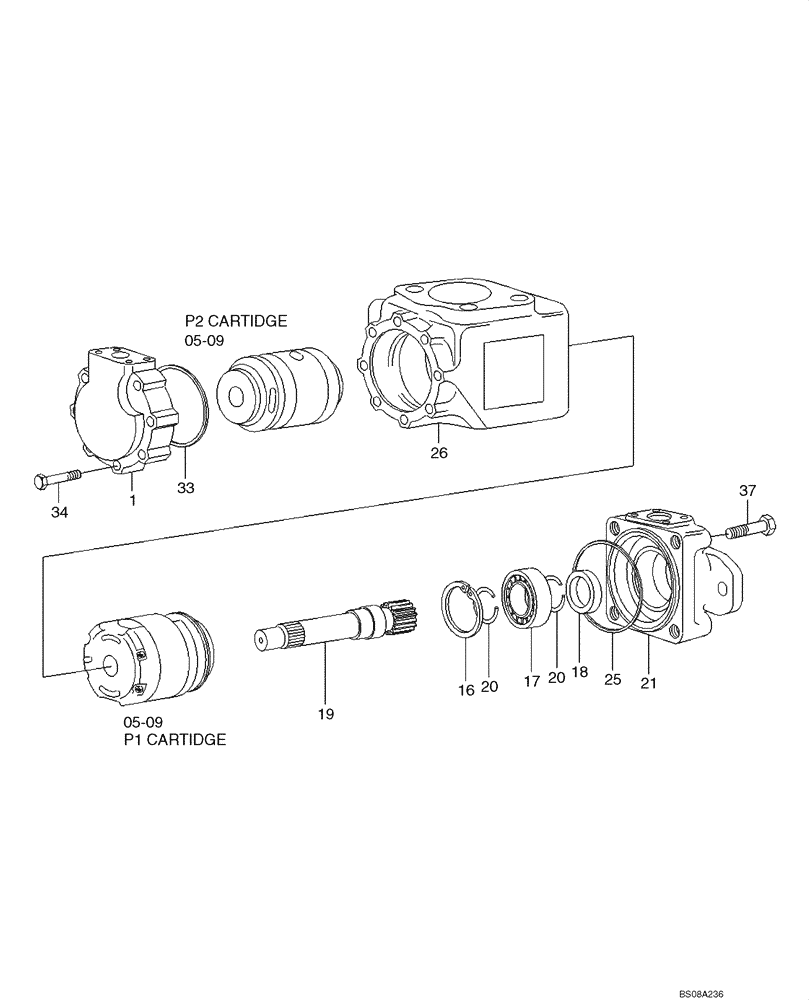

Запчасти Case 1221E (05-08[01]) - STEERING PUMP ASSY (A) (87700402) (05) - STEERING

31LH-00020

STEERING VALVE

STEERING, ASSY

1шт.

1

XJDF-00124

END

CAP

1шт.

16

XJDF-00100

RING

RETAINING

1шт.

17

XJDF-00101

BALL BEARING

Refer To Service Assy No.

1шт.

18

XJDF-00102

SEAL

SHAFT

1шт.

19

XJDF-00103

SHAFT

SPLINED, Refer To Service Assy No.

1шт.

20

XJDF-00104

RING

ROUND SECTION, Refer To Service Assy No.

2шт.

21

XJDF-00105

CAP

MOUNTING

1шт.

25

XJDF-00109

RING

SQ SECTION

1шт.

26

XJDF-00110

HOUSING

1шт.

33

XJDF-00116

RING

SQ SECTION

1шт.

34

XJDF-00117

SCREW

7шт.

37

XJDF-00120

SCREW

4шт.

38

XJDF-00040

SEAL KIT

1шт.
