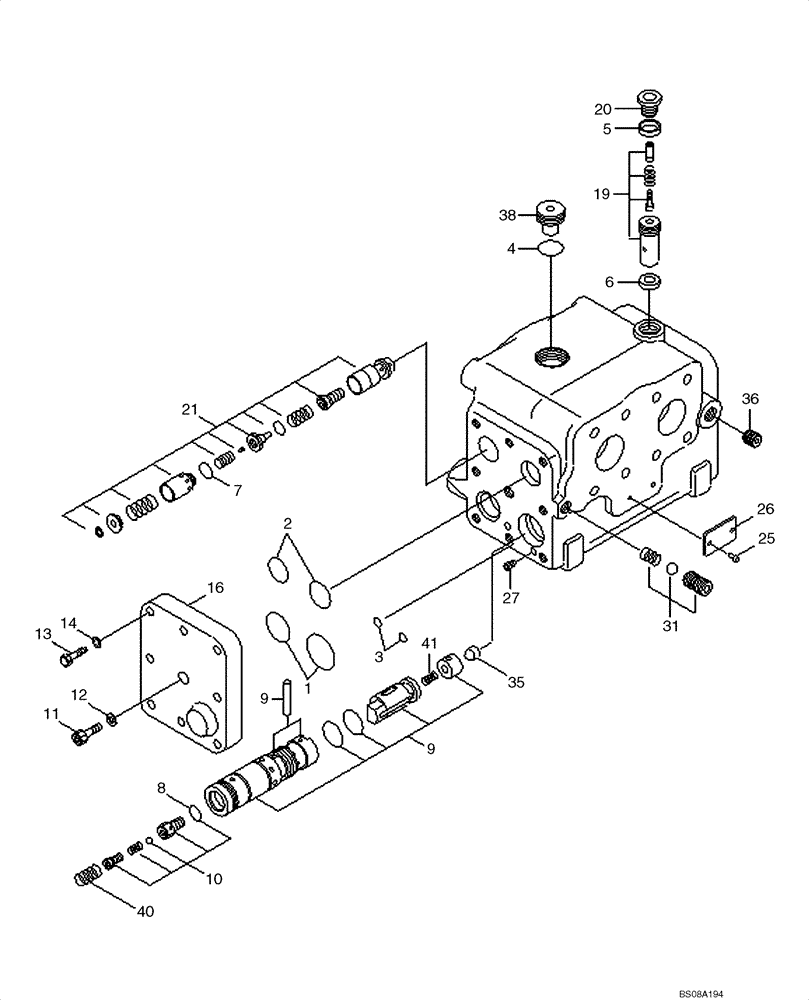

Запчасти Case 1221E (05-06[01]) - STEERING FLOW AMPLIFIER (A) (87700405) (05) - STEERING

31L6-00980

AMPLIFIER

FLOW

1шт.

1

YUBS-00020

O-RING

2шт.

2

YUBS-00021

O-RING

2шт.

3

YUBS-00022

O-RING

2шт.

4

YUBS-00023

O-RING

1шт.

5

YUBS-00024

WASHER

1шт.

6

YUBS-00025

WASHER

1шт.

7

YUBS-00025

WASHER

1шт.

8

YUBS-00027

O-RING

1шт.

10

YUBS-00028

VALVE

CHECK

1шт.

11

YUBS-00029

SCREW

1шт.

12

YUBS-00030

WASHER

SPRING

1шт.

13

YUBS-00031

SCREW

8шт.

14

YUBS-00032

WASHER

SPRING

8шт.

16

YUBS-00033

COVER

END

1шт.

19

YUBS-00034

VALVE

RELIEF

1шт.

20

YUBS-00035

PLUG

1шт.

21

YUBS-00036

VALVE

SHOCK, SUCTION

1шт.

25

YUBS-00037

DRIVE SCREW

DRIVE

2шт.

26

YUBS-00038

PLATE

NAME

1шт.

27

YUBS-00039

BATTERY

ORIFICE

1шт.

31

YUBS-00040

VALVE

THROTTLE CHECK

1шт.

35

YUBS-00039

BATTERY

ORIFICE

1шт.

36

YUBS-00041

BATTERY

ORIFICE

1шт.

38

YUBS-00042

O-RING

WITH O-RING

1шт.

40

YUBS-00043

SPRING

1шт.

41

YUBS-00044

SPRING

1шт.

42

YUBS-00045

SEAL KIT

Include(s) 1-8

1шт.
