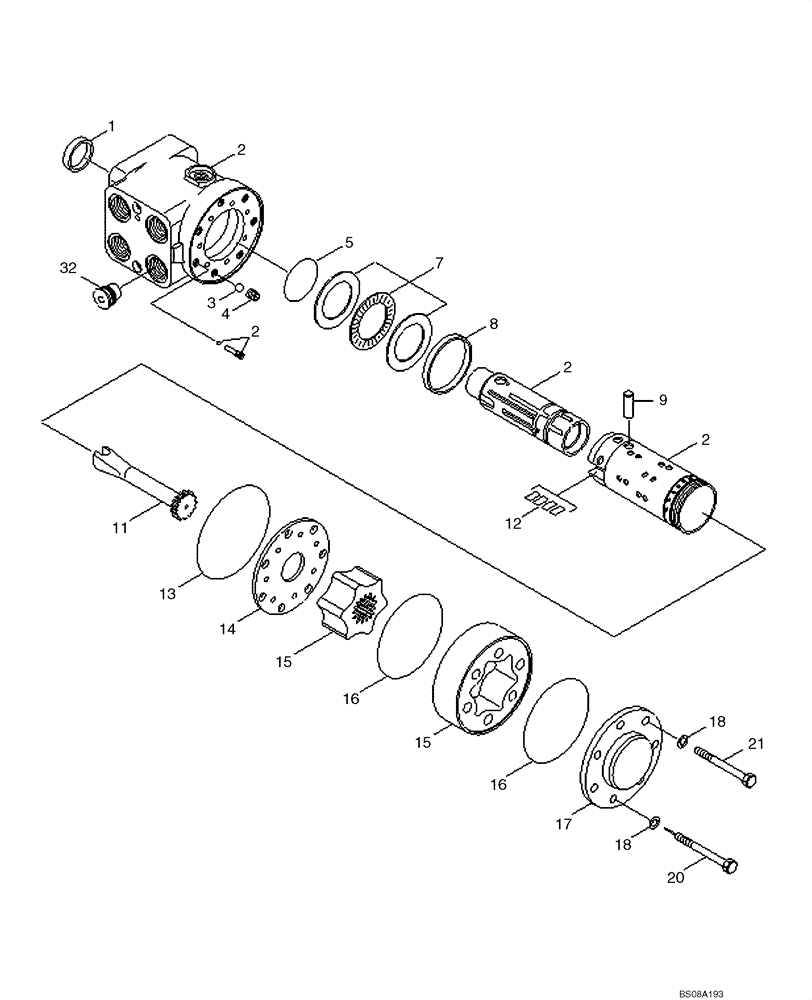

Запчасти Case 1221E (05-05[01]) - STEERING UNIT (87700406) (05) - STEERING

31L6-00990

STEERING ASSY

UNIT

1шт.

1

YUBS-00001

SEAL

DUST

1шт.

2

NSS

NOT SOLD SEPARAT

HSG, SPOOL, SLEEVE

1шт.

3

YUBS-00002

BALL

1шт.

4

YUBS-00003

BUSHING

THREAD

1шт.

5

YUBS-00004

O-RING

1шт.

7

YUBS-00005

BEARING ASSY

1шт.

8

YUBS-00006

RING

1шт.

9

YUBS-00007

PIN

CROSS

1шт.

11

YUBS-00008

SHAFT

CARDAN

1шт.

12

YUBS-00009

SPRING

SET

1шт.

13

YUBS-00010

O-RING

1шт.

14

YUBS-00011

PLATE

DISTRIBUTOR

1шт.

15

YUBS-00012

SET

GEAR WHEEL

1шт.

16

YUBS-00013

O-RING

2шт.

17

YUBS-00014

COVER

END

1шт.

18

YUBS-00015

WASHER

7шт.

20

YUBS-00016

SCREW

PIN

1шт.

21

YUBS-00017

SCREW

6шт.

32

YUBS-00018

VALVE

CHECK

1шт.

33

YUBS-00019

SEAL KIT

Include(s) 1, 5, 13, 16, 18

1шт.
