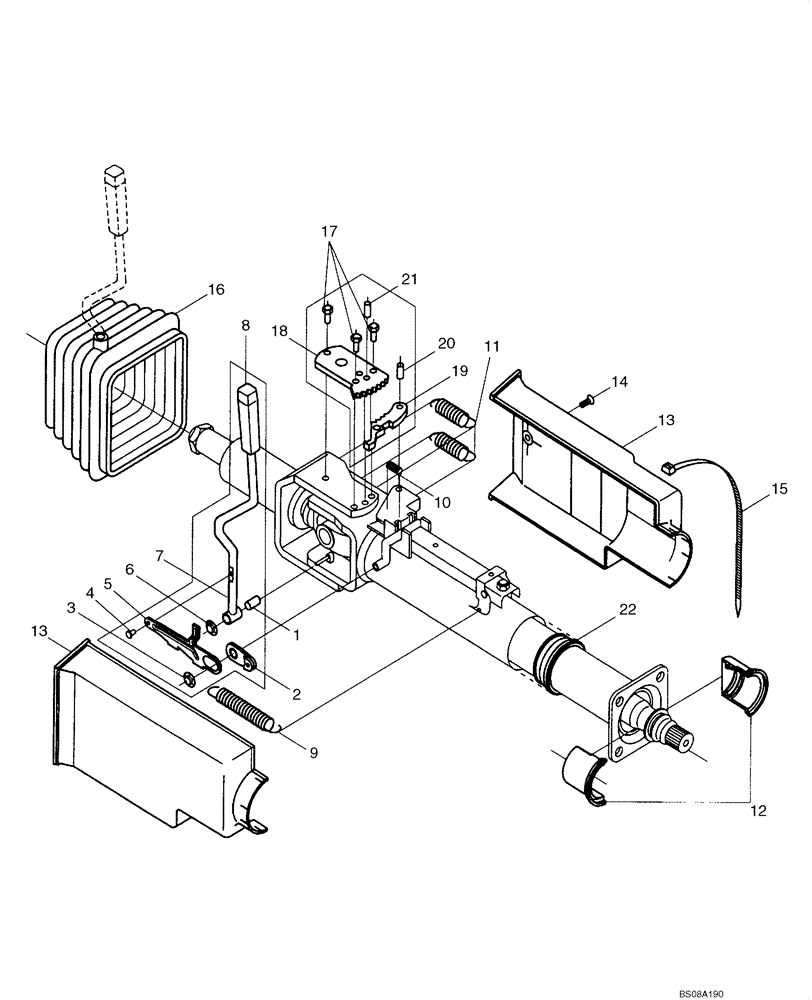

Запчасти Case 1221E (05-02[01]) - STEERING SHAFT (87700459) (05) - STEERING

71LB-30010

STEERING COLUMN

STEERING COLUMN ASSY, Incl 1-22, Serial Range: -NBUE10172

1шт.

71LM-32100

STEERING COLUMN

FOR REPAIR KIT SEE 23, Start Serial: NBUE10173

1шт.

87700563

HANDLE

COMPLETE; Include(s) 1-8

1шт.

1

NSS

NOT SOLD SEPARAT

BEARING, LEVER

1шт.

2

NSS

NOT SOLD SEPARAT

BUSHING, LINK ARM

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER, LOCK

1шт.

4

NSS

NOT SOLD SEPARAT

RIVET

1шт.

5

NSS

NOT SOLD SEPARAT

LINK ARM

1шт.

6

NSS

NOT SOLD SEPARAT

WASHER, LOCK

1шт.

7

NSS

NOT SOLD SEPARAT

LEVER

1шт.

8

NSS

NOT SOLD SEPARAT

KNOB

1шт.

87700564

SPRING

Include(s) 9-11

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING, TELESCOPE

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING, CATCH

1шт.

11

NSS

NOT SOLD SEPARAT

SPRING, TILT RETURN

2шт.

87700565

BEARING ASSY

Include(s) 12

1шт.

12

NSS

NOT SOLD SEPARAT

BEARING, AXIAL

1шт.

87700566

COVER

Include(s) 13-15

1шт.

13

NSS

NOT SOLD SEPARAT

COVER

1шт.

14

NSS

NOT SOLD SEPARAT

SCREW

1шт.

15

NSS

NOT SOLD SEPARAT

TIE, CABLE

1шт.

87700567

BELLOWS

Include(s) 16

1шт.

16

NSS

NOT SOLD SEPARAT

RUBBER, BELLOWS

1шт.

87700568

CABLE TIE

CABLE STRAP Include(s) 15

1шт.

15

NSS

NOT SOLD SEPARAT

TIE CABLE

1шт.

87700569

LOCKING DEVICE

Include(s) 17-21

1шт.

17

NSS

NOT SOLD SEPARAT

SCREW

1шт.

18

NSS

NOT SOLD SEPARAT

TOOTH SEGMENT

1шт.

19

NSS

NOT SOLD SEPARAT

CATCH

1шт.

20

NSS

NOT SOLD SEPARAT

PIN

1шт.

21

NSS

NOT SOLD SEPARAT

PIN

1шт.

87700570

BEARING ASSY

TELESCOPE BEARING, Include(s) 22

1шт.

22

NSS

NOT SOLD SEPARAT

BEARING, TELESCOPE

1шт.

23

47714660

KIT

, Start Serial: NBUE10173

1шт.
