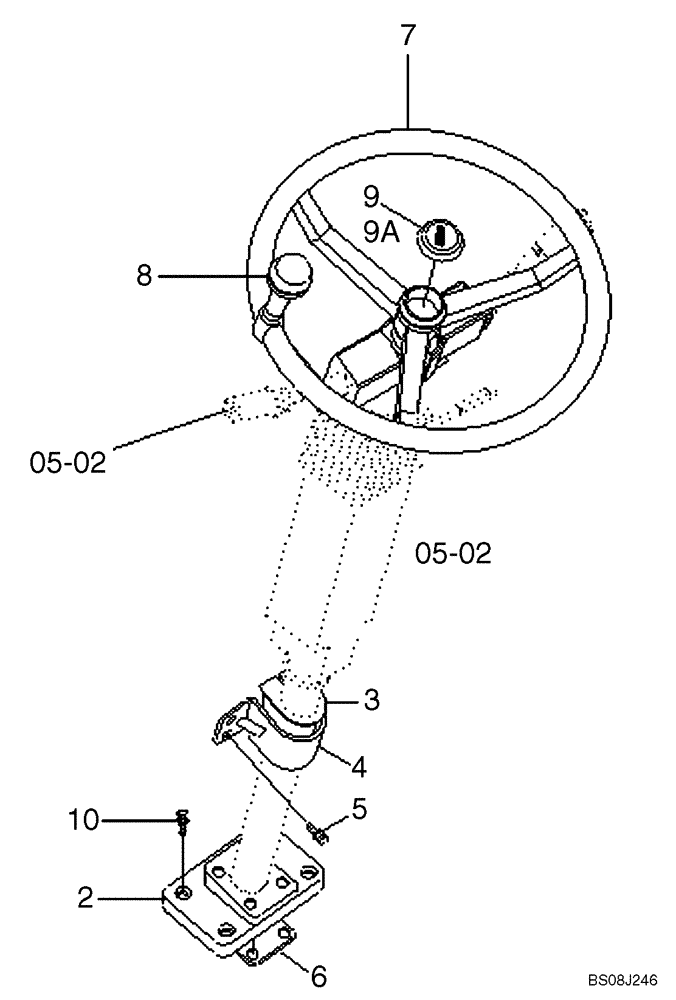

Запчасти Case 1221E (05-01[01]) - STEERING COLUMN (87700458) (05) - STEERING

3

71LB-21071

BRACKET

ANCHORAGE ASSY

1шт.

4

71L7-20261

CLAMP

1шт.

5

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

5-1

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

6

71L6-10320

SHIM

(40T)

1шт.

7

71L7-20310

STEERING WHEEL

1шт.

8

71L7-20320

KNOB

WHEEL

1шт.

9

71L7-20330

CAP

CENTER; Replaces 72LH-35420

1шт.

9a

91LH-01230

DECAL

Steering Wheel Cap

1шт.

10

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

10-1

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.
