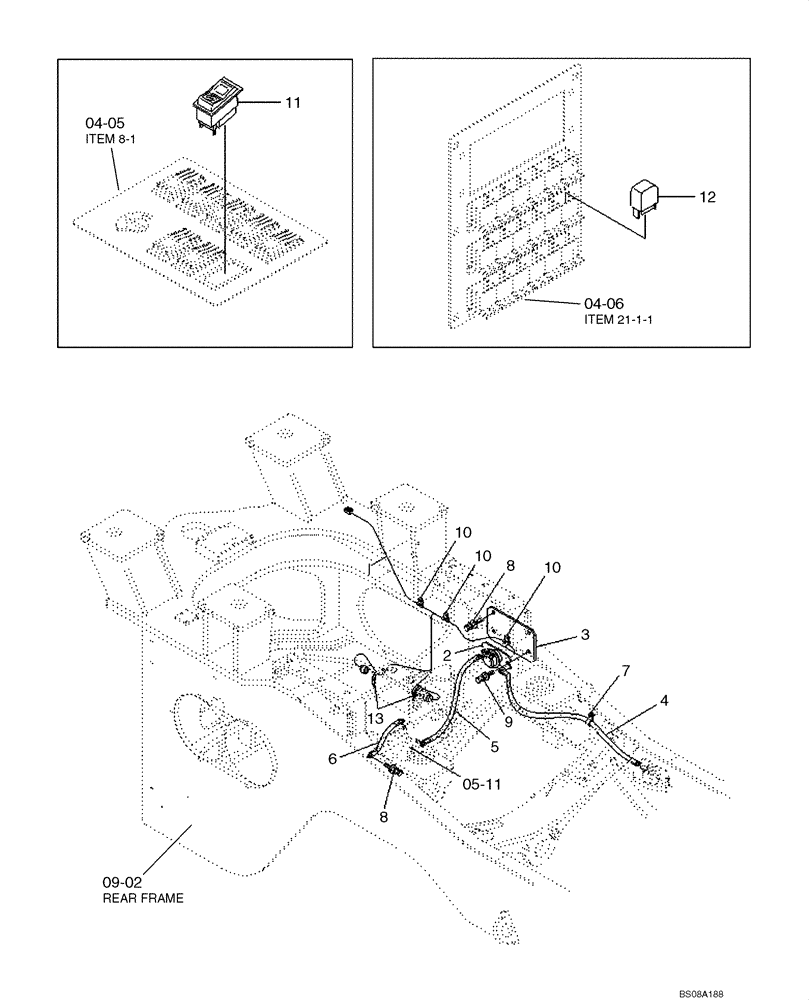

Запчасти Case 1221E (04-10[01]) - EMERGENCY STEERING (87700433) (04) - ELECTRICAL SYSTEMS

1

21LH-30091

HARNESS

EMERGENCY STEERING

1шт.

2

21E5-0003

RELAY

BATTERY

1шт.

3

21LB-40051CY

PLATE

1шт.

4

21LH-20251

ELECTRIC CABLE

RELAY

1шт.

5

21LH-20261

ELECTRIC CABLE

RELAY, MOTOR

1шт.

6

21LH-20270

ELECTRIC CABLE

MOTOR, EARTH

1шт.

7

515-24206

CLAMP,13/16", Insul, 7/16" Bolt

1шт.

8

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

3шт.

8-1

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

8-2

892-11010

LOCK WASHER,M10

3шт.

9

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

9-1

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

9-2

892-11008

LOCK WASHER,8mm ID

2шт.

10

S593-000902

CLIP

HARNESS

3шт.

11

21L6-02260

SWITCH

PUMP MOTOR

1шт.

12

24L1-05100

RELAY

1шт.

13

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP 7 - 8 INCH

4шт.
