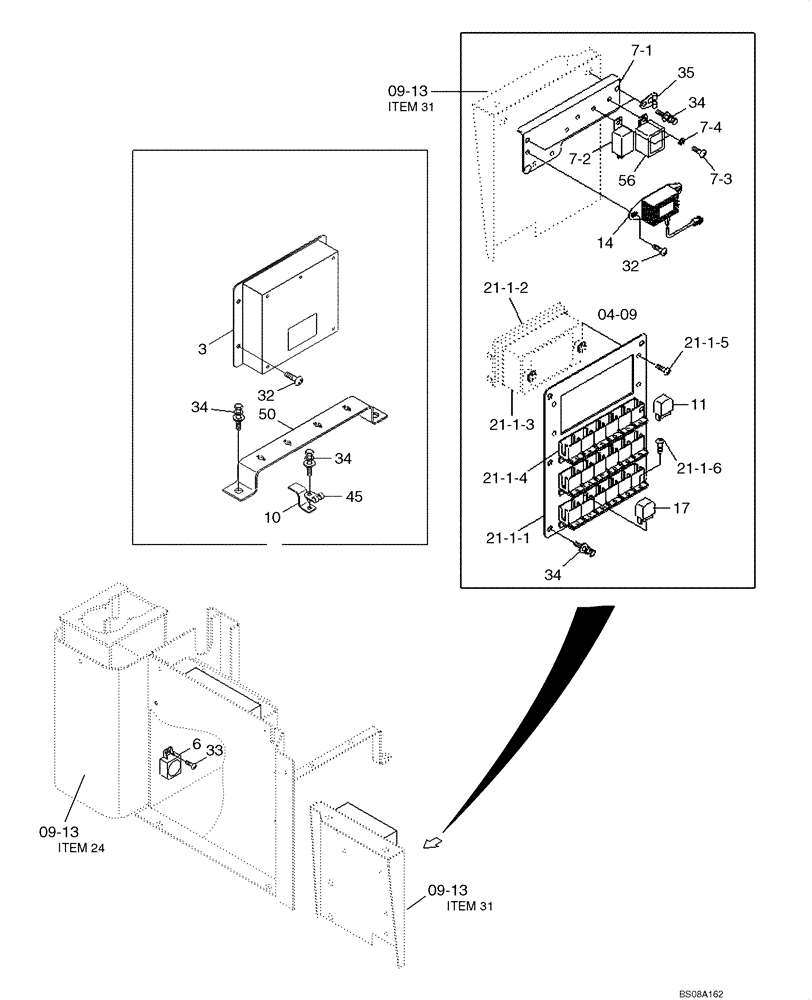

Запчасти Case 1221E (04-06[01]) - DRIVER CAB - CONTROL UNIT (87700428) (04) - ELECTRICAL SYSTEMS

3

21LB-33102

CONTROL UNIT

MODULE CONTROL UNIT

1шт.

6

21E4-2025

BUZZER

WARNING

1шт.

7

21LB-34123

BOARD

RELAY, ASSY; PRIOR TO P.I.N. 10151

1шт.

7

21LB-34124

BOARD

RELAY, ASSY; P.I.N. 10151 AND AFTER

1шт.

7-1

21LB-34132

PLATE

RELAY BOARD

1шт.

7-2

21ER-60702

FLASHER UNIT

PRIOR TO P.I.N. 10151

1шт.

7-3

S161-050102

SCREW

RD HD

1шт.

7-2

21ER-60703

FLASHER UNIT

P.I.N. 10151 AND AFTER

1шт.

7-4

892-11005

LOCK WASHER,M5

1шт.

10

21E7-0612

PLATE

CONNECTOR

1шт.

11

24L1-05100

RELAY

18шт.

14

21N8-20201

CONVERTER

DC-DC ASSY

1шт.

17

24L1-05100

RELAY

RIDE CONTROL

1шт.

21-1

21LB-34032

BOARD

BOARD ASSY

1шт.

21-1-1

21LB-34040

BOARD

BOARD

1шт.

21-1-2

NSS

NOT SOLD SEPARAT

BODY, FUSE BOX

1шт.

21-1-3

NSS

NOT SOLD SEPARAT

COVER ASSY, FUSE BOX

1шт.

21-1-4

87745507

SOCKET

RELAY

18шт.

21-1-5

840-1818

SCREW,Pan, M8 x 18mm, Cl 4.8

4шт.

21-1-5

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

4шт.

21-1-5

892-11008

LOCK WASHER,8mm ID

4шт.

21-1-6

S131-051046

CAPTIVE WASHER SCREW

W/WASHER

6шт.

32

S131-061546

CAPTIVE WASHER SCREW,M6 x 1 x 15mm

W/WASHER

6шт.

33

S131-051546

CAPTIVE WASHER SCREW

W/WASHER

1шт.

34

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

8шт.

34-1

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

8шт.

34-2

892-11008

LOCK WASHER,8mm ID

8шт.

35

S593-000902

CLIP

HARNESS

1шт.

45

S593-001302

CLIP

HARNESS

1шт.

50

21LB-34010

PLATE

1шт.

56

21LB-34140

TIMER

DEFROST

1шт.
