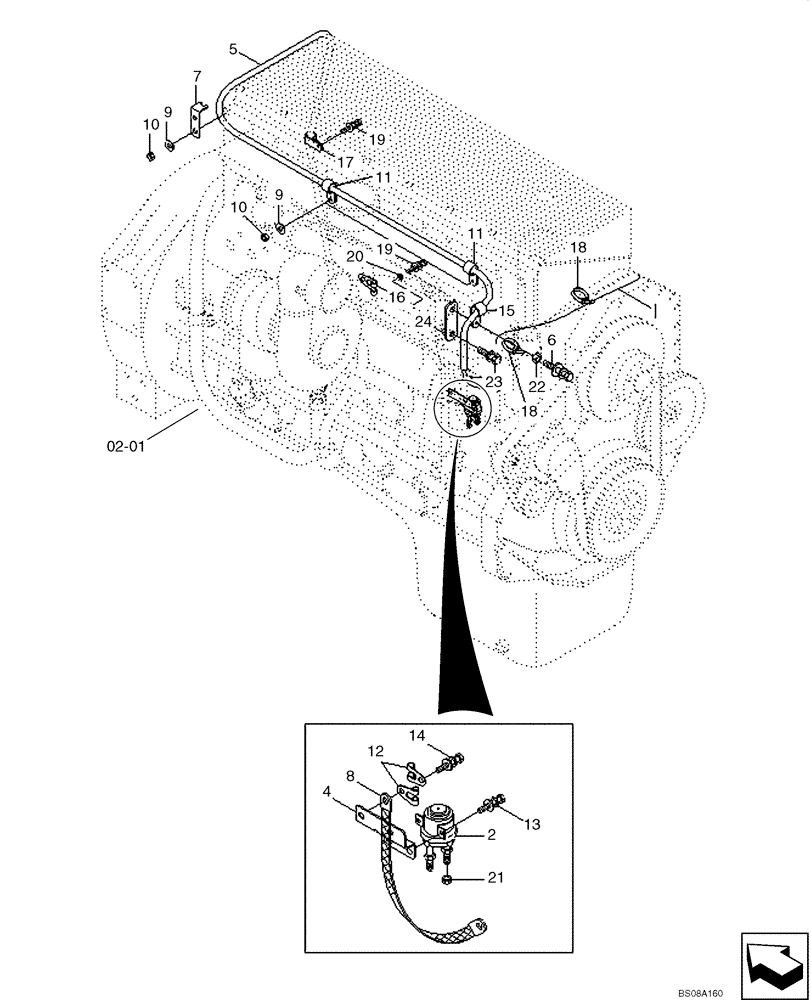

Запчасти Case 1221E (04-04[01]) - HARNESS - ENGINE (87700398) (04) - ELECTRICAL SYSTEMS

1

21LH-30022

HARNESS

ENGINE

1шт.

2

E225-0006

RELAY

HEATER

1шт.

4

21LH-31011

PLATE

1шт.

5

21LH-31002

CABLE

ASSY

1шт.

6

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

6-1

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

6-2

892-11010

LOCK WASHER,M10

1шт.

7

21LH-31030

PLATE

1шт.

8

21LB-34720

GROUND STRAP

1шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

11

31E7-0316

CLAMP

HOSE

2шт.

12

S593-000702

CLIP

HARNESS

2шт.

13

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

13-1

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

13-2

892-11006

LOCK WASHER,M6

2шт.

14

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

14-1

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

14-2

892-11010

LOCK WASHER,M10

2шт.

15

31E7-0315

CLAMP

HOSE

1шт.

16

S593-000902

CLIP

HARNESS

6шт.

17

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

18

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP 7 - 8 INCH

8шт.

19

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

19-1

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

19-2

892-11010

LOCK WASHER,M10

2шт.

20

S431-100002

LOCK WASHER

INTERNAL T/LOCK

1шт.

21

S285-061002

FLANGE NUT

FLANGED

2шт.

22

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

23

S037-121556

BOLT

W/WASHER

1шт.

24

21LH-34180

PLATE

1шт.
