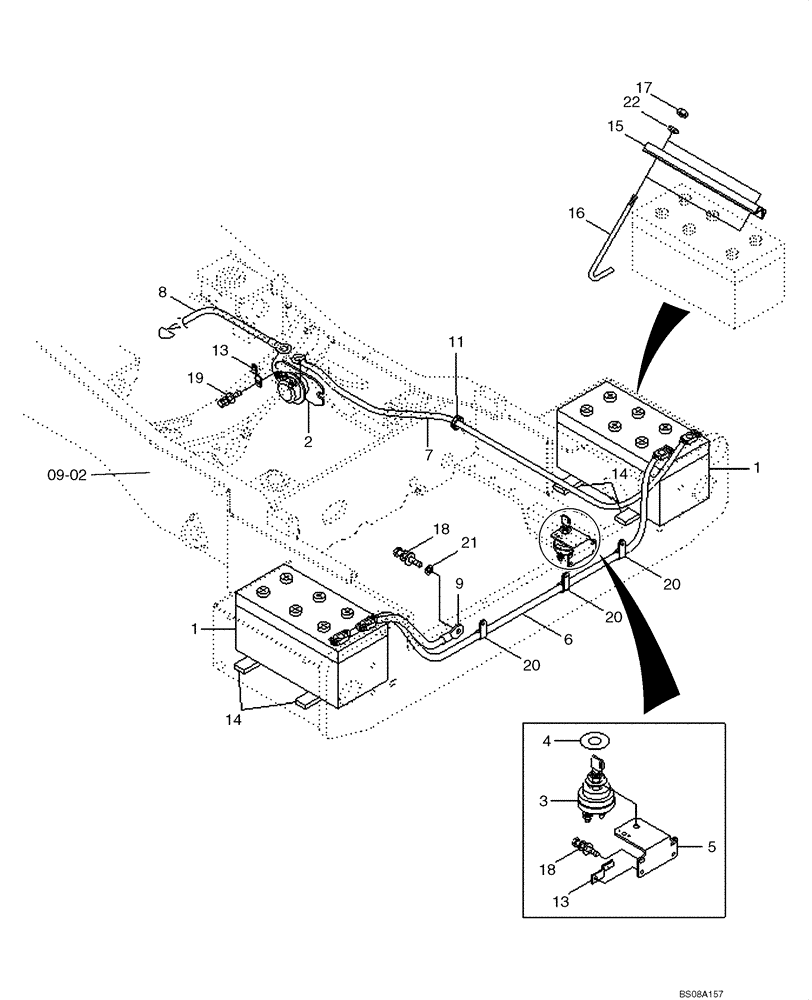

Запчасти Case 1221E (04-01[01]) - BATTERY / CABLE / HOLD DOWN (87700432) (04) - ELECTRICAL SYSTEMS

1

BCM8DAW

WET BATTERY

North America

2шт.

1

CBCM8DA

BATTERY, DRY

Canada

2шт.

2

21E5-0003

RELAY

BATTERY

1шт.

3

21L7-10500

SWITCH

MASTER

1шт.

4

21N4-10451

DECAL

MASTER SW; PRIOR TO P.I.N. 10123

1шт.

4

21LD-34180

DECAL

MASTER SW; P.I.N. 10123 AND AFTER

1шт.

5

21LH-34150

PLATE

MASTER SWITCH

1шт.

6

21L6-40360

ELECTRIC CABLE

Battery To Battery

1шт.

7

21LH-34160

ELECTRIC CABLE

Relay To Battery

1шт.

8

21LH-20050

ELECTRIC CABLE

Relay To Starter

1шт.

9

21LH-34200

ELECTRIC CABLE

Battery To Earth

1шт.

11

S760-111800

GROMMET

1шт.

13

21E7-0612

PLATE

CONNECTOR

2шт.

14

24L1-40360

PAD

4шт.

15

21L6-01400CY

ANGLE

WA

2шт.

16

24L1-10160

BAR

4шт.

17

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

18

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

18-1

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

18-2

892-11010

LOCK WASHER,M10

2шт.

19

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

19-1

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

19-2

892-11008

LOCK WASHER,8mm ID

2шт.

20

515-24206

CLAMP,13/16", Insul, 7/16" Bolt

3шт.

21

S431-100002

LOCK WASHER

INTERNAL T/LOCK

1шт.

22

892-11008

LOCK WASHER,8mm ID

2шт.
