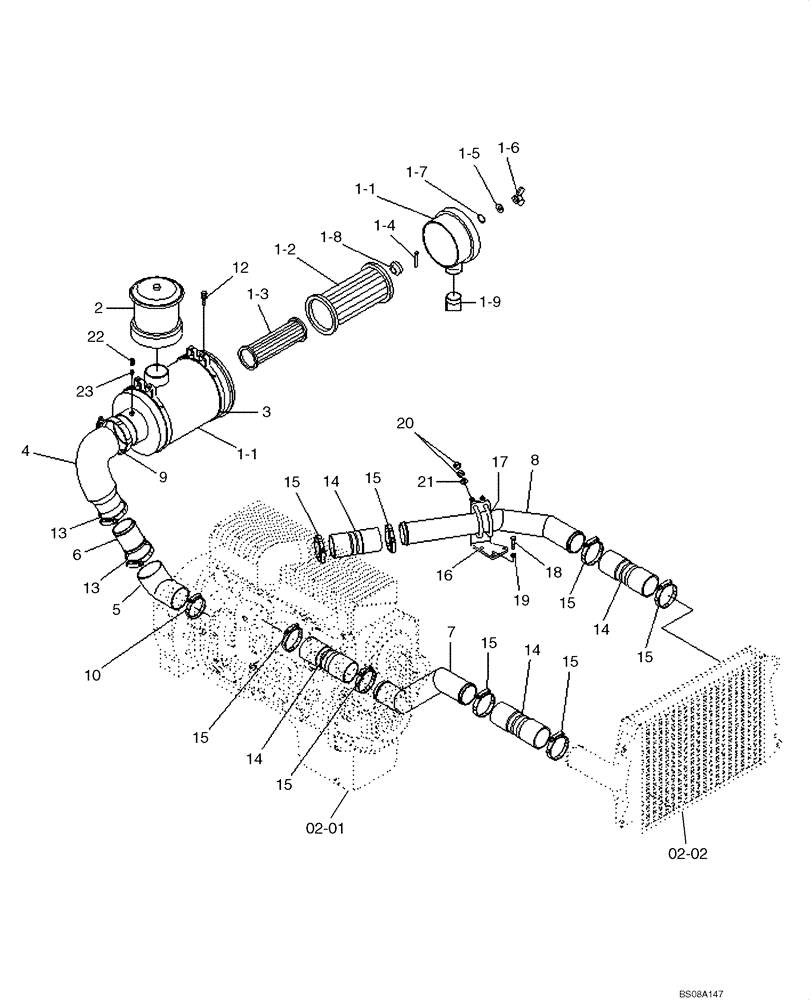

Запчасти Case 1221E (02-07[01]) - AIR INTAKE SYSTEM (87700425) (02) - ENGINE

1

87404269

AIR CLEANER

1шт.

1-1

NSS

NOT SOLD SEPARAT

BODY ASSY

1шт.

1-2

87404270

ELEMENT

AIR, OUTER (ISL Item) Before Ser #78

1шт.

1-2

84493612

AIR FILTER

Air, Outer Ser #78 and After

1шт.

1-3

87404271

ELEMENT

AIR, INNER (ISL Item)Before Ser #78

1шт.

1-3

87682986

AIR FILTER

Air, Inner Ser #78 and After

1шт.

1-4

NSS

NOT SOLD SEPARAT

PIN

1шт.

1-5

70667684

GASKET

1шт.

1-6

87443571

WING NUT

1шт.

1-7

87443572

CIRCLIP

1шт.

1-8

87443573

COLLAR CLAMP

1шт.

1-9

73042943

DUST VALVE

1шт.

2

11NB-20060

AIR PRE-CLEANER ASSY

1шт.

3

11L6-01790

CLAMP

ASSY

2шт.

4

11L6-40511

INTAKE AIR HOSE

1шт.

5

11LH-40061

INTAKE AIR HOSE

1шт.

6

11L6-40571

PIPE

1шт.

7

11LH-40021

PIPE

WA

1шт.

8

11LH-40031

PIPE

WA

1шт.

9

11LB-40250

CLAMP

HOSE

1шт.

10

11LB-40190

CLAMP

HOSE

1шт.

12

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

12-1

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

13

11LB-40200

CLAMP

HOSE

2шт.

14

11L6-40620

INTAKE AIR HOSE

CHARGED AIR

4шт.

15

11L6-40630

COLLAR CLAMP

TORQUE RETENTION

8шт.

16

11LH-40040

PLATE

1шт.

17

11LH-40051

U-BOLT

2шт.

18

S087-060246

BOLT

HEX UNIFIED

3шт.

19

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

20

829-1412

NUT,M12, Cl 10.9

8шт.

21

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

22

11FQ-20060

ADAPTER

1шт.

23

11L6-01851

HYD CONNECTOR

1шт.
