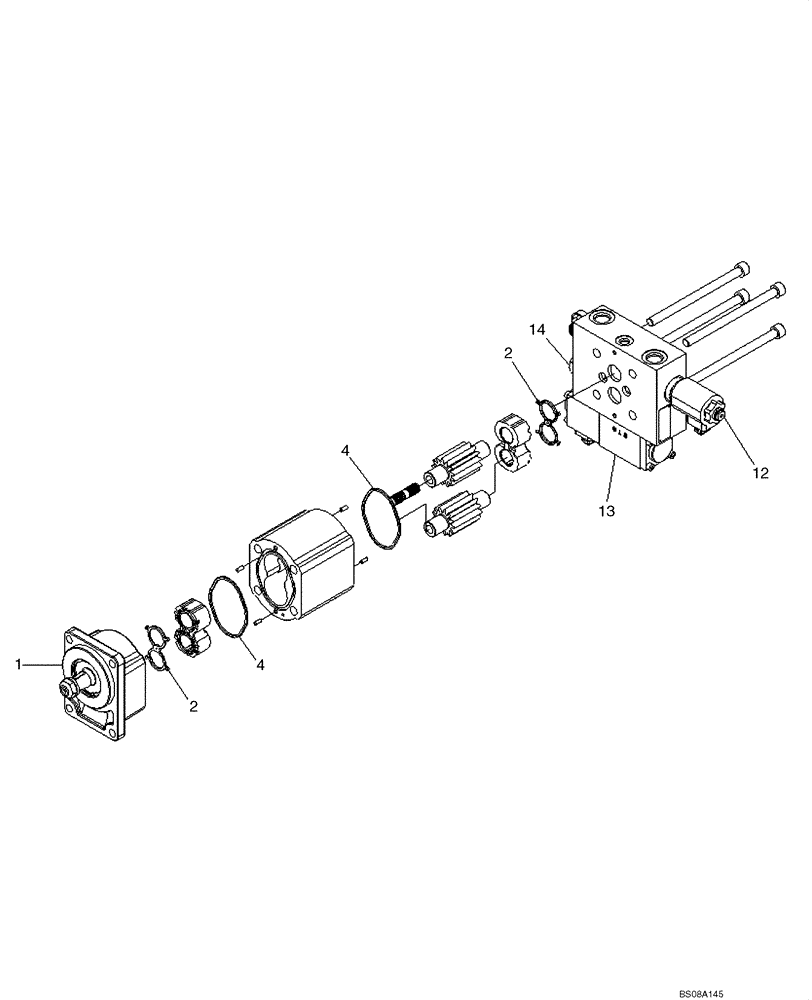

Запчасти Case 1221E (02-05[01]) - FAN MOTOR REVERSING - SEALS KIT (87742528) (02) - ENGINE

11LB-30600

HYDRAULIC MOTOR

1шт.

1

NSS

NOT SOLD SEPARAT

FRONT BEARING

1шт.

1-1

87742527

SEAL

SHAFT, Not Illustrated; Refer To Service Kit No.

1шт.

1-2

87742527

SEAL

SHAFT, Not Illustrated; Refer To Service Kit No.

1шт.

2

87742529

SEAL

Refer To Service Kit No.

2шт.

4

87742530

O-RING

Refer To Service Kit No.

2шт.

12

87700542

CARTRIDGE

RELIEF VALVE

1шт.

13

87700543

VALVE

SOLENOID

1шт.

14

87700544

CHECK VALVE

CARTRIDGE

1шт.

15

87700553

SEAL KIT

FAN MOTOR; Include(s) 1-1, 1-2, 2, 4

1шт.
