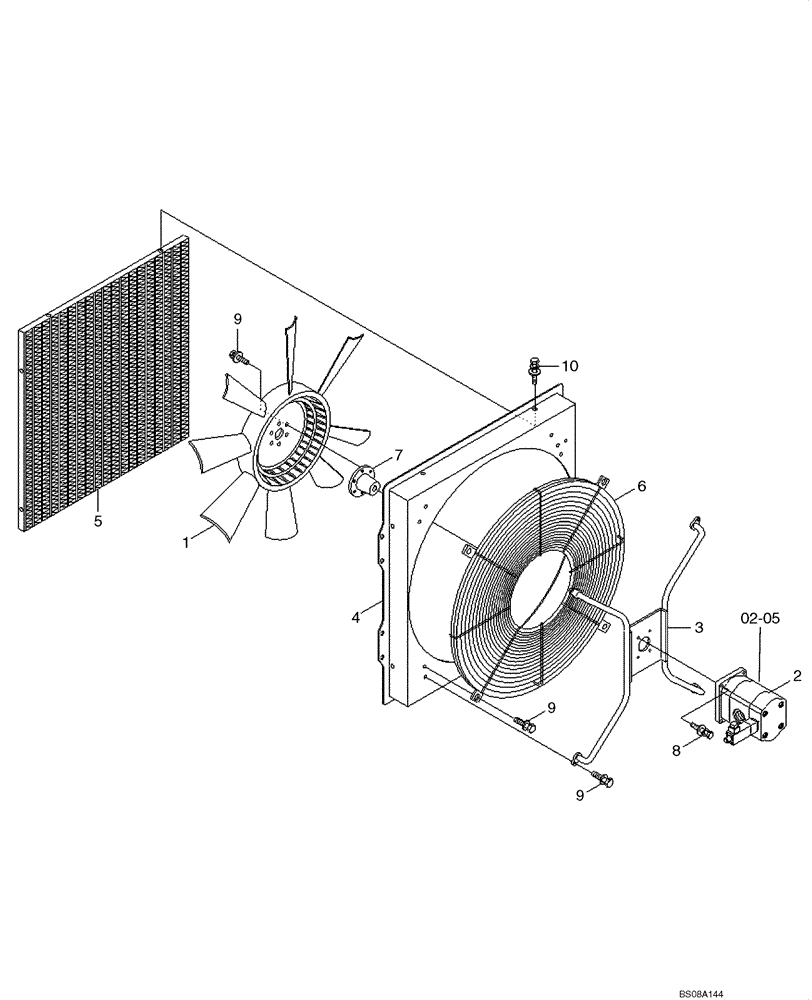

Запчасти Case 1221E (02-04[01]) - FAN / MOTOR ASSY (87700385) (02) - ENGINE

NSS

NOT SOLD SEPARAT

FAN AND MOTOR ASSY

1шт.

1

11LH-30071

FAN

COOLING

1шт.

2

NSS

NOT SOLD SEPARAT

MOTOR, HYDRAULIC, REVERSING

1шт.

3

11LH-30081

BRACKET

WA

1шт.

4

11LH-30091

SHROUD

WA

1шт.

5

11LH-30100

GUARD

FAN, WA FRONT

1шт.

6

11LH-30110

GUARD

FAN, WA REAR

1шт.

7

11LB-30180

ADAPTER

1шт.

8

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

8-1

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

4шт.

9

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

14шт.

9-1

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

14шт.

10

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

8шт.

10-1

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

8шт.

10-2

892-11008

LOCK WASHER,8mm ID

8шт.
