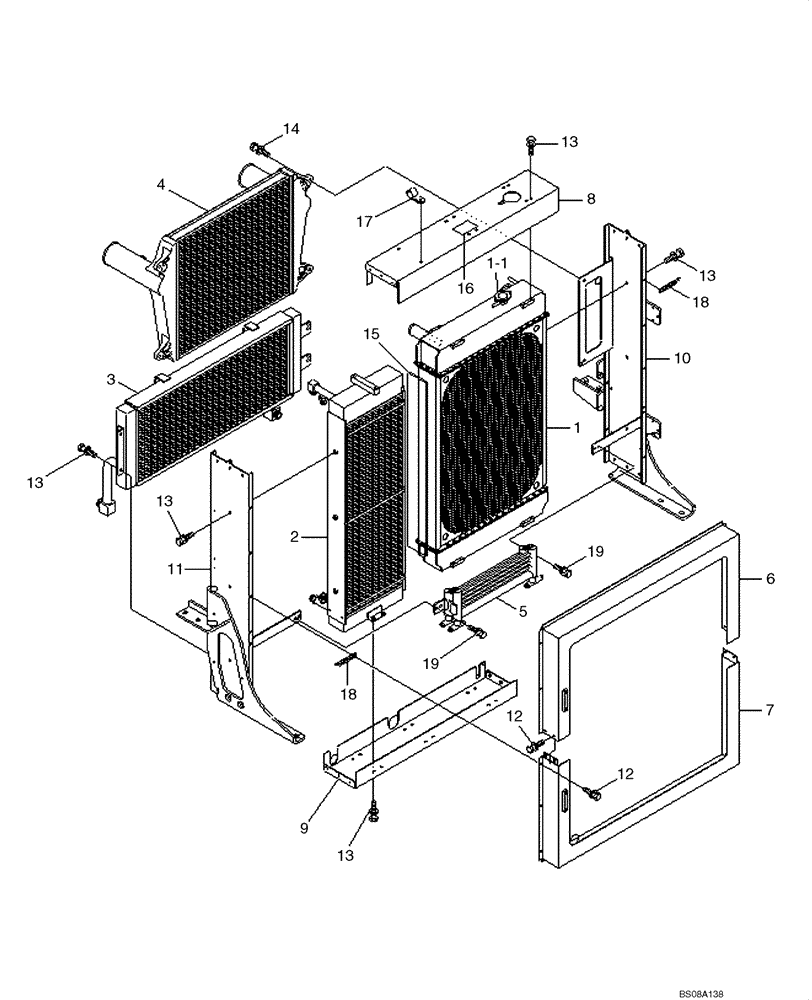

Запчасти Case 1221E (02-02[01]) - RADIATOR ASSEMBLY, BSN, SER# 10171 (02) - ENGINE

11LH-30024

RADIATOR

COMPLETE, Not Illustrated

1шт.

1

11LH-30031

RADIATOR

ASSY

1шт.

1-1

87700554

CAP

RADIATOR

1шт.

2

11LH-30040

COOLER

ASSY

1шт.

3

11LH-30340

OIL COOLER

ASSY

1шт.

4

11L6-02330

COOLER

CHARGE AIR

1шт.

5

81L6-40202

OIL COOLER

AXLE

1шт.

6

11LH-30350

SHROUD

ASSY

1шт.

7

11LH-30360

SHROUD

ASSY

1шт.

8

11LH-30130

SUPPORT

UPPER WA

1шт.

9

11LH-30140

SUPPORT

LOWER WA

1шт.

10

11LH-30161

SUPPORT

SIDE WA - RH

1шт.

11

11LH-30151

SUPPORT

SIDE WA - LH

1шт.

12

87700555

BOLT

ASM 91008160

14шт.

13

87700556

BOLT

ASM 91010251

44шт.

14

87700557

BOLT

ASM 91010451

4шт.

15

87700558

PACKING

1шт.

16

87700559

EMBLEM

NAME PLATE

1шт.

17

87700560

HOSE

CLAMP

4шт.

18

87700561

CLIP

HARNESS

6шт.

19

87700562

BOLT

ASM 91012250

4шт.
