(09-40[01]) - DECALS, COMMON TO MODEL, NORTH AMERICA (B) (87745539)

Запчасти Case 1221E (09-40[01]) - DECALS, COMMON TO MODEL, NORTH AMERICA (B) (87745539) (09) - CHASSIS/ATTACHMENTS

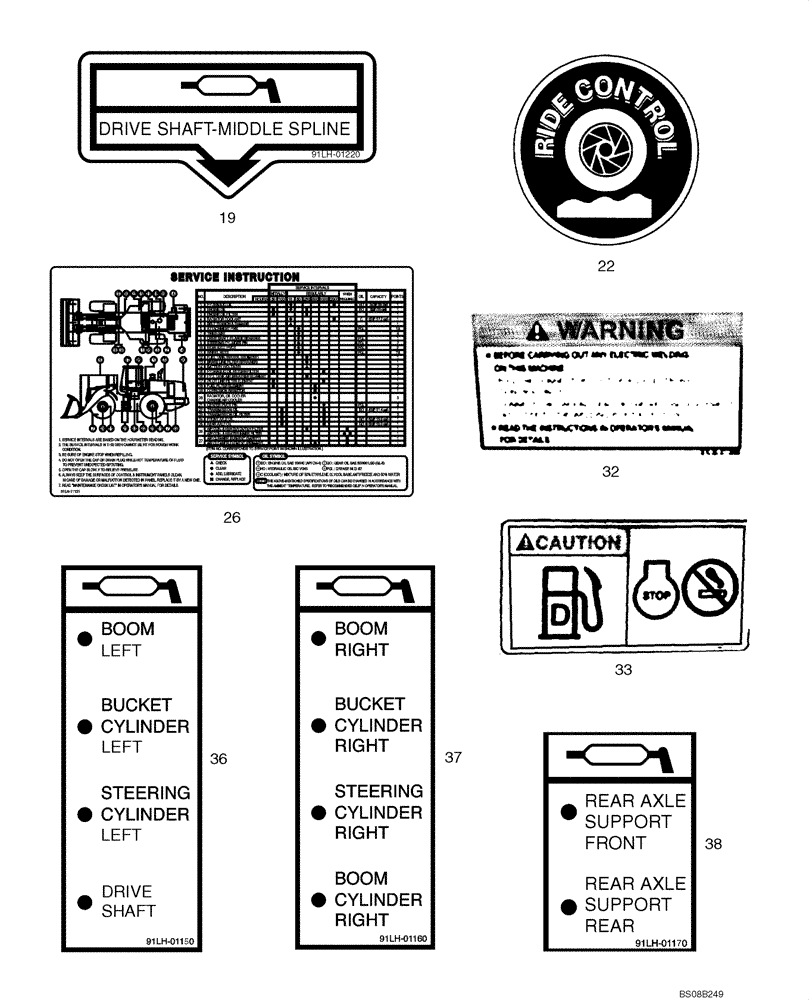

Схема запчастей Case 1221E - (09-40[01]) - DECALS, COMMON TO MODEL, NORTH AMERICA (B) (87745539) (09) - CHASSIS/ATTACHMENTS
33
26
38
22
37
36
19
32
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

19

91LH-01220

DECAL

GREASE CENTER

1шт.

22

304083A1

DECAL

RIDE CONTROL

1шт.

26

91LH-11131

DECAL

SERVICE INSTRUCTION

1шт.

32

91LB-01350

DECAL

ECU CONNECTOR

2шт.

33

91N6-01131

DECAL

FUELING

1шт.

36

91LH-01150

DECAL

GREASE A, LH

1шт.

37

91LH-01160

DECAL

GREASE B, RH

1шт.

38

91LH-01170

DECAL

GREASE C, FRONT & REAR

1шт.
