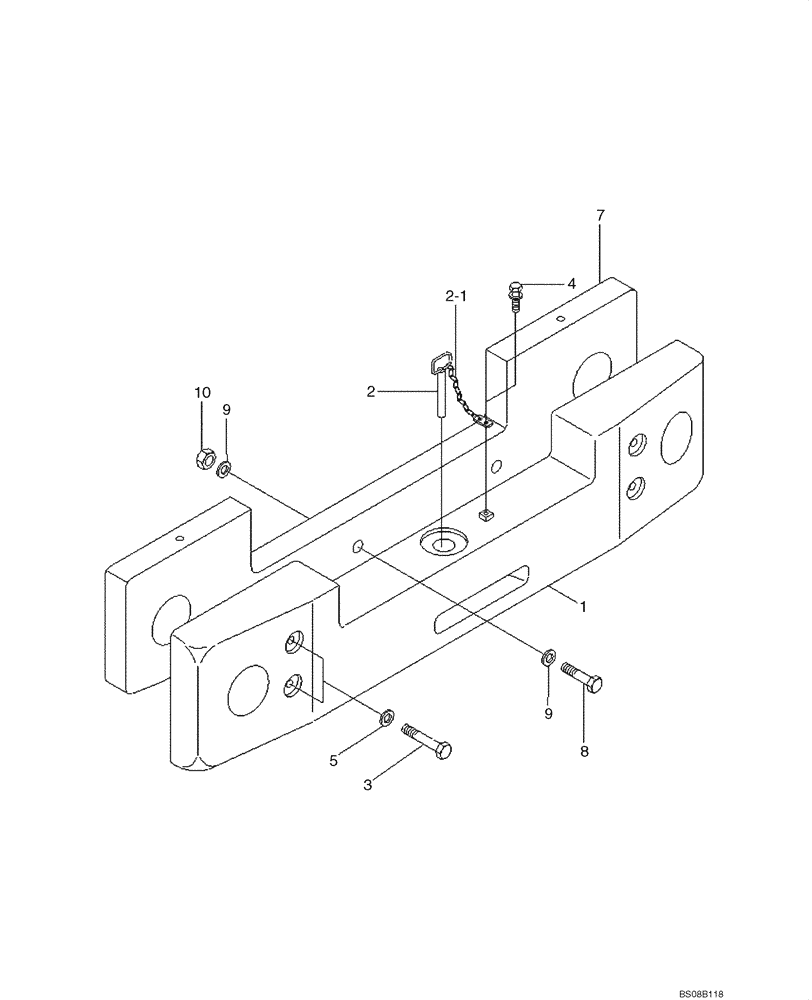

Запчасти Case 1221E (09-36[01]) - COUNTERWEIGHT (87700451) (09) - CHASSIS/ATTACHMENTS

1

52LH-10010

COUNTERWEIGHT

1шт.

2

51LH-10020

PIN

ASSY

1шт.

2-1

54L3-00940

CHAIN

ASSY

1шт.

3

S017-30250D

BOLT

HEX

4шт.

4

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

4

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

5

896-12036

WASHER,39mm ID x 66mm OD x 6mm Thk

4шт.

7

52LH-10030

COUNTERWEIGHT

ADDITIONAL

1шт.

8

827-24100

BOLT,Hex, M24 x 3 x 100mm, Cl 10.9

Replaces S017-24110D bolt used on some models

2шт.

9

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

4шт.

10

829-1424

NUT,M24, Cl 10

2шт.
