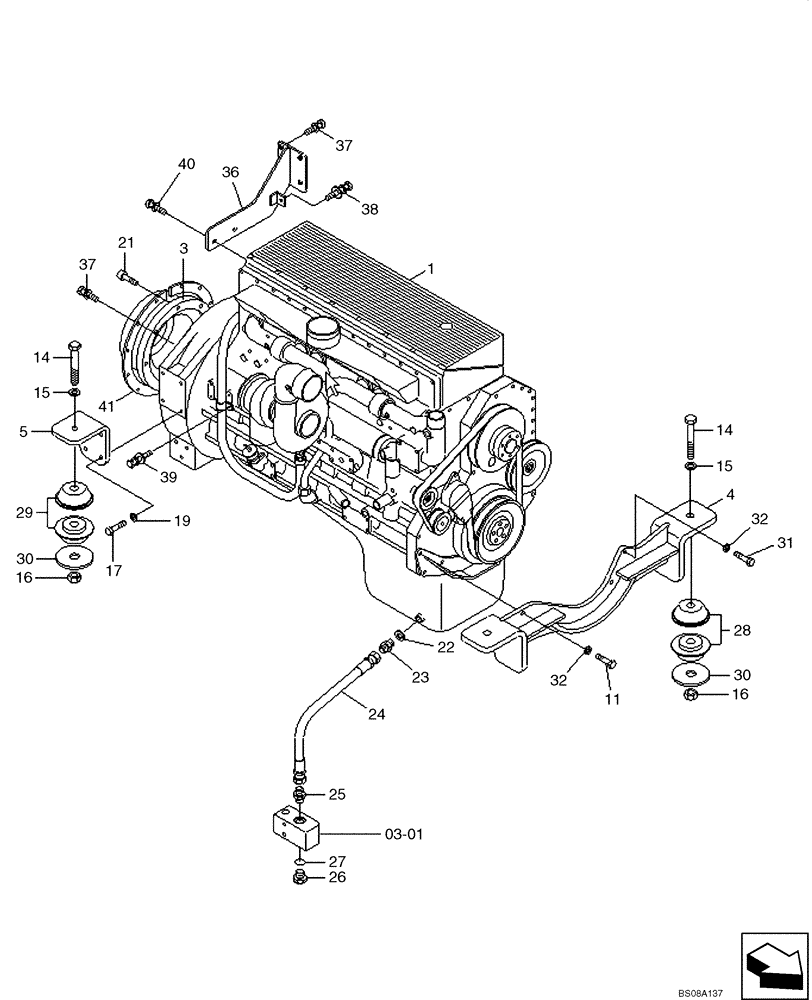

Запчасти Case 1221E (02-01[01]) - ENGINE - MOUNTING / FILTERS, FUEL, OIL / V BELT (87700382) (02) - ENGINE

1

REF

INSTRUCTION

ENGINE QSM-11 - TIER III; See Your Local Cummins Dealer For Parts And Service

1шт.

1-1

84385571

ENGINE OIL FILTER

Not Illustrated (ISL Item)

1шт.

1-2

84557707

FUEL FILTER

Not Illustrated (ISL Item)

2шт.

1-3

87700536

V-BELT

Ribbed, Fan; Not Illustrated (ISL Item)

1шт.

1-4

84477795

COOLANT FILTER

Not Illustrated (ISL Item)

1шт.

3

81L6-00940

COUPLING

1шт.

4

11L6-02160

BRACKET

WA

1шт.

5

11L6-02171

BRACKET

2шт.

11

S017-10115V

BOLT

HEX

5шт.

14

S017-24185D

BOLT

HEX

4шт.

15

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

4шт.

16

829-1424

NUT,M24, Cl 10

4шт.

17

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

19

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

21

S129-080326

BOLT

SOCKET, UNIFIED

8шт.

22

14L1-01180

COPPER WASHER

COPPER

1шт.

23

14L1-01170

HYD CONNECTOR

1шт.

24

P600-121013

HOSE

ASSY-THD

1шт.

25

P010-110016

HYD CONNECTOR

1шт.

26

P220-110104

PLUG

HEX

1шт.

27

S631-018001

O-RING

1шт.

28

11N6-13060

ISOLATOR

RESILIENT

4шт.

29

11N6-13055

SILENTBLOC

4шт.

31

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

1шт.

32

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

6шт.

33

11N8-00060

WASHER

4шт.

36

11LH-00030

BRACKET

WA

1шт.

37

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

16шт.

37-1

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

16шт.

38

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

1шт.

38-1

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

1шт.

38-2

892-11006

LOCK WASHER,M6

1шт.

39

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

39-1

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

39-2

892-11010

LOCK WASHER,M10

2шт.

40

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

40-1

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

41

11L6-02500

PLATE

2шт.
