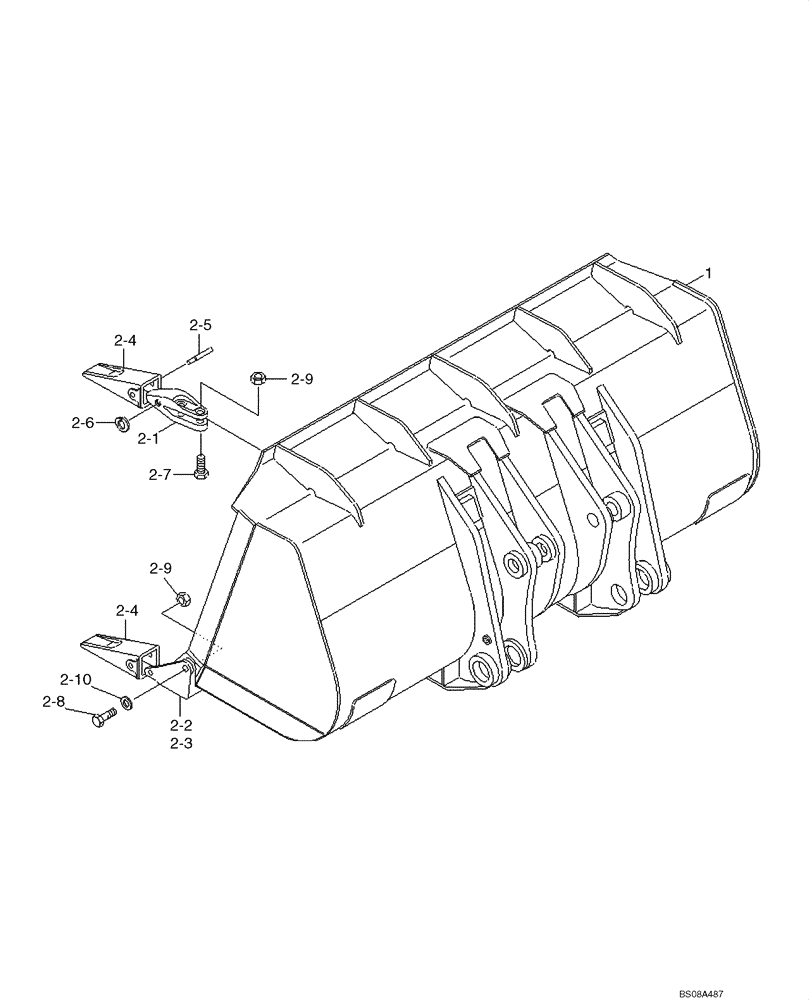

Запчасти Case 1221E (09-30[01]) - LOADER BUCKET (4.8 CU M/6.3 CU YD W/TEETH) (87745527) (09) - CHASSIS/ATTACHMENTS

87745527

BUCKET

ASSY; Incl. Refs. 1 - 2-10

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET

1шт.

2

61L6-10960CY

SERVICE KIT

KIT, 2 PIECE

1шт.

2-1

61L6-00770CY

TEE

ADAPTER, CENTER

6шт.

2-2

61L6-00780CY

TEE

ADAPTER, CORNER, LH

1шт.

2-3

61L6-00790CY

TEE

ADAPTER, CORNER, RH

1шт.

2-4

61L6-00800CY

POINT

TOOTH

8шт.

2-5

61L6-00810

PIN

TOOTH

8шт.

2-6

61L6-00820

LOCK WASHER

LOCK

8шт.

2-7

61L6-00830

BOLT

TOOTH

12шт.

2-8

61L6-00841

BOLT

TOOTH

2шт.

2-9

S206-36100B

NUT

HEX

14шт.

2-10

896-12036

WASHER,39mm ID x 66mm OD x 6mm Thk

2шт.
